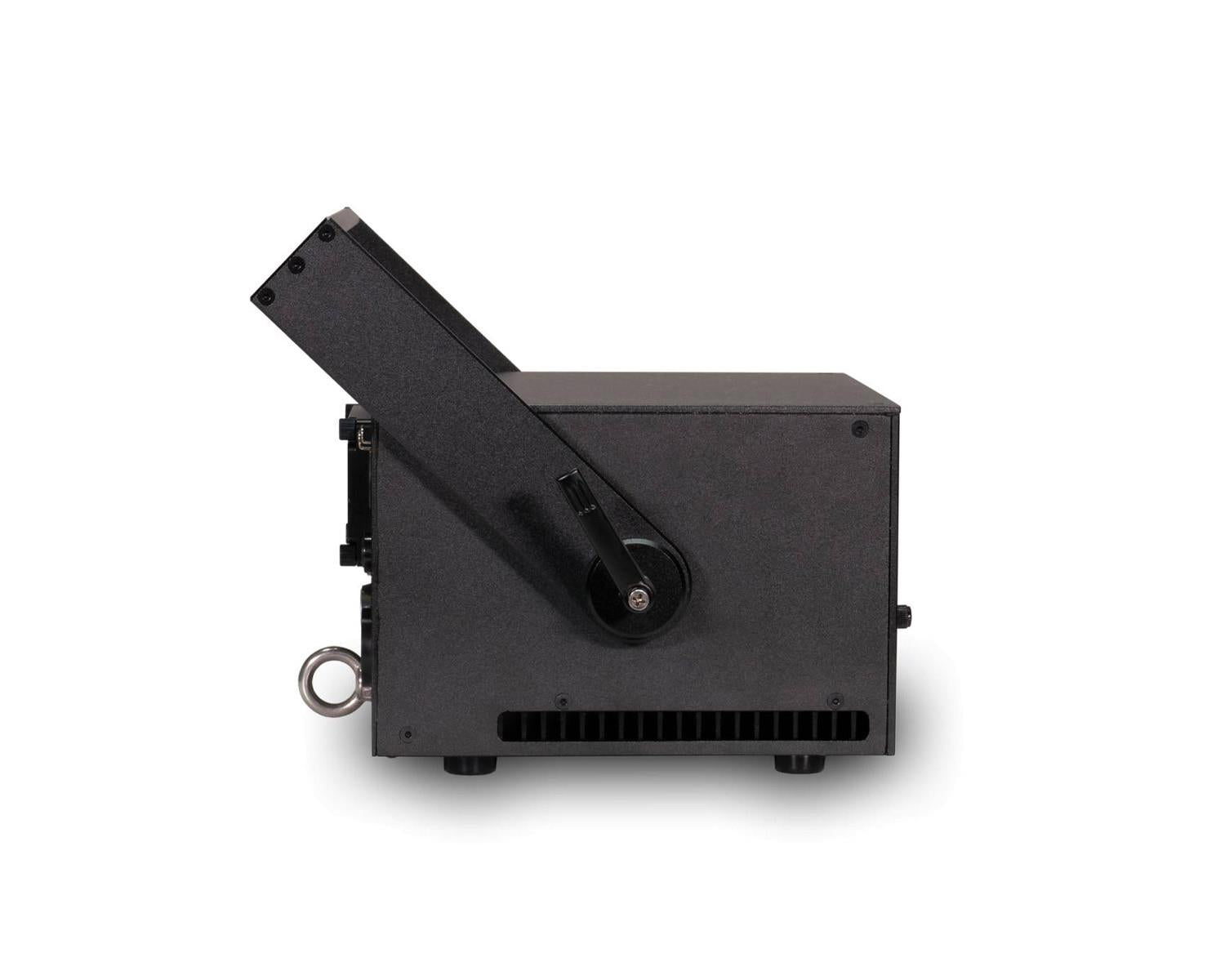

Laserworld DS-1000RGB MK5 Pure Diode Laser 1000mW ShowNET

Description

The Laserworld DS-1000RGB MK5 units come with diode-only laser sources ("Pure Diode") and thus have great beam specifications with beautiful analog color modulation. The Laserworld DS-1000RGB MK5 units have a built-in network DAC for Showcontroller and Showeditor, but also can be controlled with any ILDA laser control software. They also have a built-in memory with pre-set patterns, that can be easily triggered through DMX, stand-alone mode.

The Laserworld DS-1000RGB MK5 comes with integrated ShowNET network interface and free laser show software (details in the box below) Beginners as well as professionals use the Laserworld Diode Series units, as they are easy to use, versatile in their features and very compact and lightweight.

The Laserworld DS-1000RGB MK5 comes with 300 mW / 638 nm and uses green diode at 300 mW / 520 nm. The blue diode has 700 mW / 450 nm. Beam specifications are at great ca. 4 mm / 0.9 mrad full angle and scanning can go as fast as 30 kpps@8°, whereas the scanners can scan a maximum angle of 40°.

With integrated and switchable scan safety. The whole projector is built with Sealed Housing technology and thus maintenance intervals can be kept very low.

1'000 mW guaranteed power
Graphics capable - 30 kpps@8°
Max scan angle 40°
Full colour mixing - analogue modulation
Extremely sharp intense beams – 4mm beam diameter and low divergence of 0,9 mrad
Save safety settings direct to the laser and they apply in all modes
Link multiple units with linking Power, DMX and ILDA
Free computer control software – Showeditor - upgradable to Showcontroller
Multiple control modes - Auto, DMX, Artnet and ILDA

Guaranteed Power at aperture: 1'000 mW
Power Red: 300 mW / 638 nm
Power Green: 300 mW / 520 nm
Power Blue: 700 mW / 450 nm
Beam Specifications*: ca. 4 mm / 0.9 mrad
Scanner: 30 kpps@8°
Max. Scan Angle: 40°
Laser Source: Diode
Laser Class: 4
Operation Modes: ILDA, DMX, LAN, ArtNet, ILDA streaming, integrated SD card, stand-alone, master-slave
Basic Patterns: over 120 (layers, tunnels, fences, waves, etc.)
Accessories: power cable, manual, interlock, key, full version Showeditor software license included
Power Supply: 85 V - 250 V AC, 50/60 Hz
Power Consumption: 40 W
Dimensions: 200 x 185 x 125 mm
Weight: 3.8 kg
