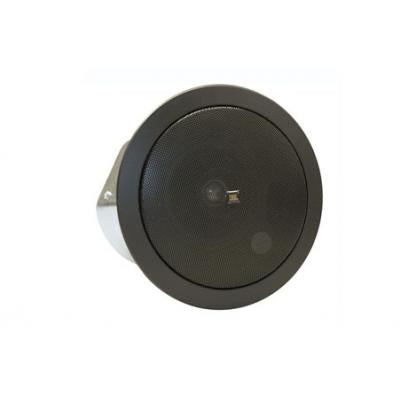

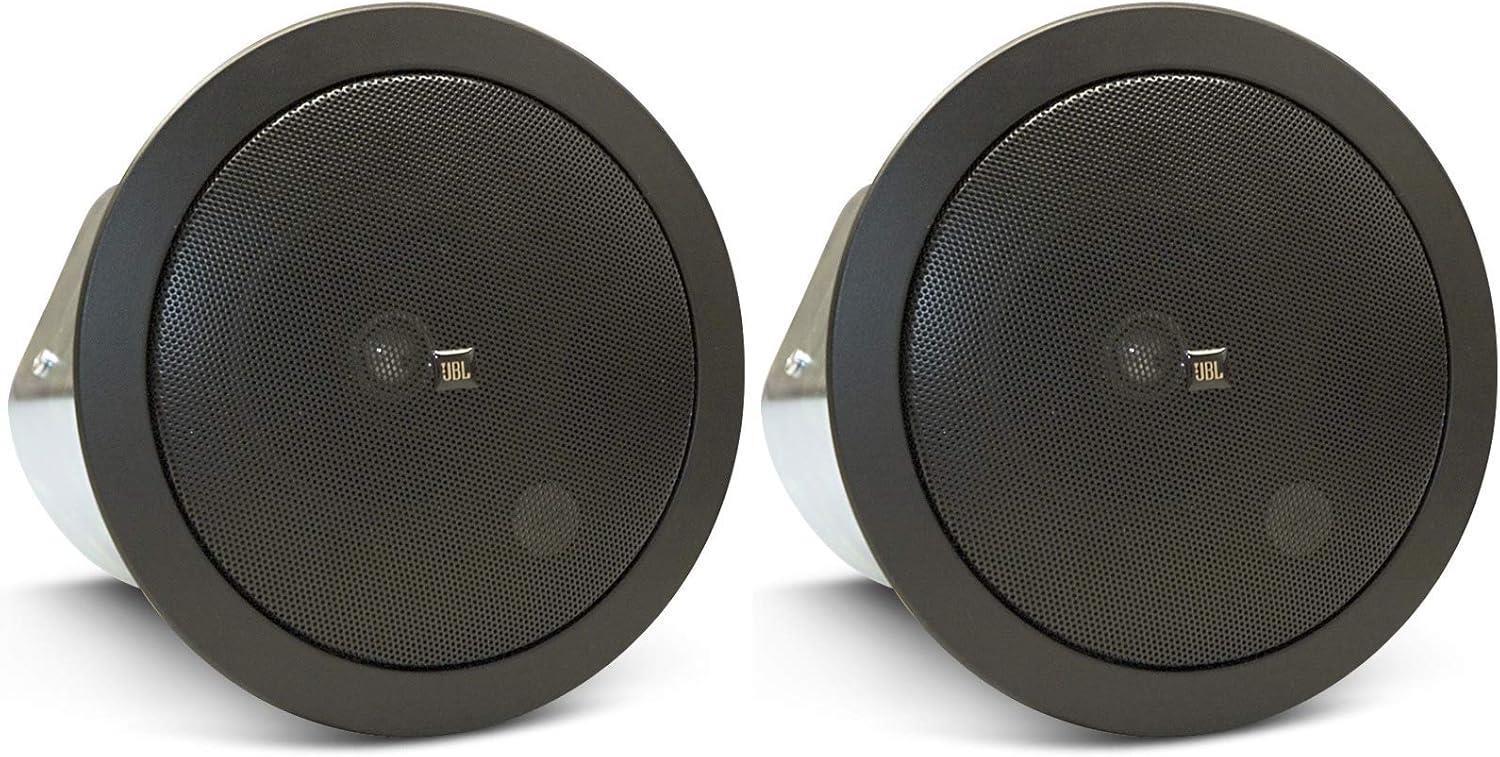

JBL Control 24CTB Ceiling Speakers Pair Black

Description:

The Control 24CT-BK is a compact ceiling speaker providing premium performance in background, foreground and music-pluspaging sound systems. The Control 24CT-BK is perfectly suited for a wide variety of applications from professional offices and airports to restaurants and specialty retail stores. High power handling, wide frequency response and low distortion make the Control 24CT-BK ideal for sound systems requiring a higher fidelity sound from ceiling loudspeakers. The premium performance capability ensures excellent sound character, providing pleasant, enveloping sound throughout the listening area.

Features:

Coaxially mounted 100 mm (4 in) woofer with butyl rubber surround and 19 mm (¾ in) titanium coated diffraction-loaded tweeter

High power, wide frequency response and low distortion for high sound level capability

Wide coverage allows fewer speakers, reducing the cost of the installed sound system without sacrificing performance

Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking

Black baffle and grille works well in black and dark ceiling

Specifications:

Freq. Range (-10 dB) :80 Hz - 20 kHz
Power Capacity : 80 Watts Continuous
Program Power : 40 Watts Continuous
Pink Noise
Transformer Taps: 70 V: 30W, 15W, 7.5W & 3.7W taps, 100 V: 30W, 15W, & 7.5W taps
Nominal Sensitivity: 86 dB SPL @ 1 m (3.3 ft)
Nominal Coverage Angle: 130° conical coverage
Directivity Factor (Q): 2.4 averaged 500 Hz to 4 kHz
Directivity Index (DI) : 3.8 averaged 500 Hz to 4 kHz
Transformer Insertion Loss : Max 0.8 dB
Low-Frequency Transducers : 100 mm (4.0 in) Polypropylene-coated,
1" coil on aluminum former
High-Frequency Transducers: 19 mm (0.75 in) Titanium coated polyester
Enclosure : Backcan: Formed steel
Baffle/Rim: Medium impact polystyrene, fire rated UL94V-0
Termination :Removable locking connector with screw-down terminals.
2 input terminals and 2 loop-thru output terminals.
Max. wire size 12 AWG (2.5 mm)
Outside Dimensions (H x Dia) : 200 x 195 mm (7.9 x 7.7 in)
184 mm (7.2 in) front of ceiling tile to back of backcan
Cutout Size :168 mm (6.6 in)
Net Weight (ea) : 3.5 kg (8 lb)
Shipping Weight (pair): 8.0 kg (18 lb)
Included Accessories : C-shaped support backing plate
2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles)
Cutout template
Paint shield
Removable locking wiring connector
