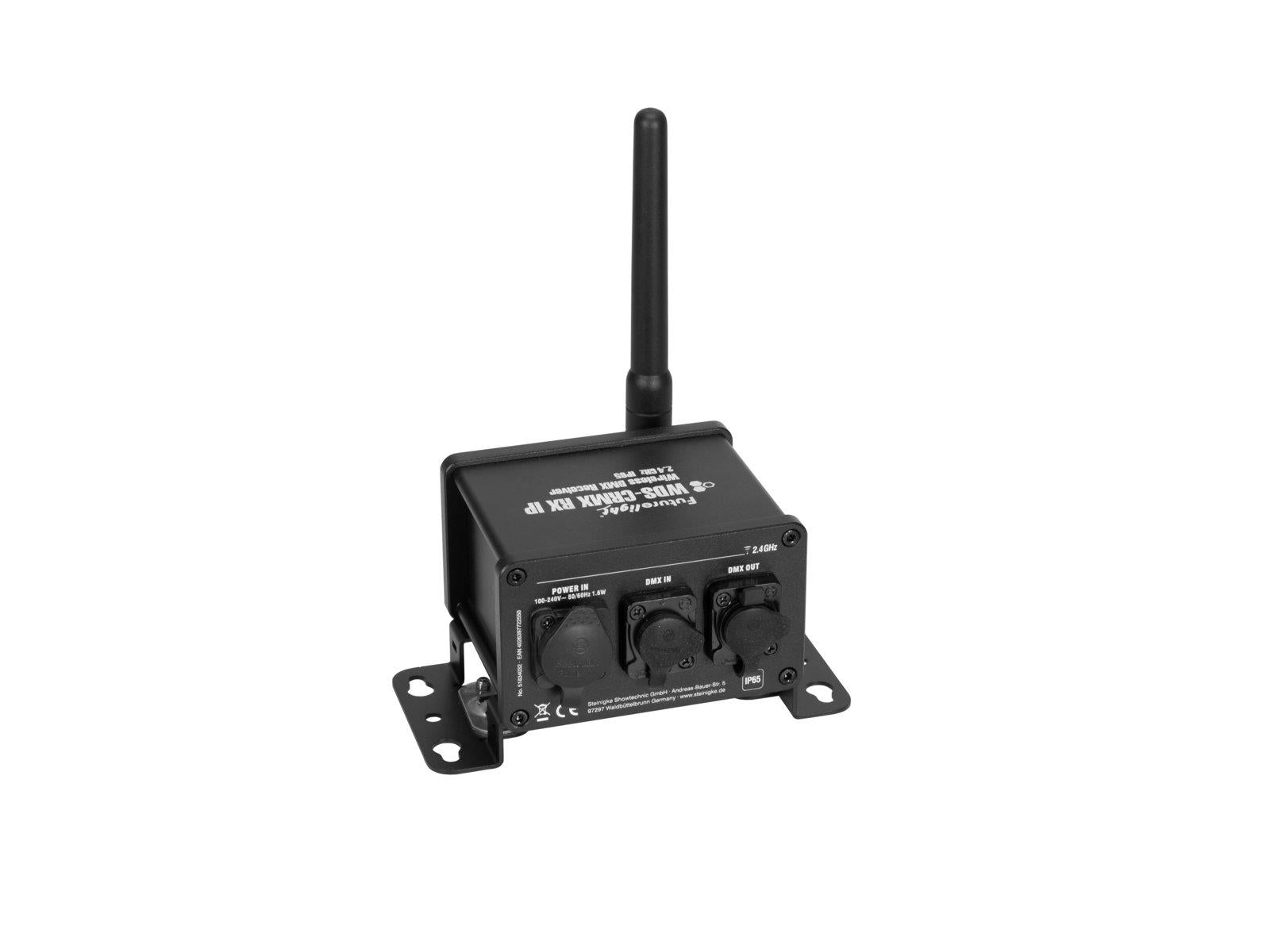

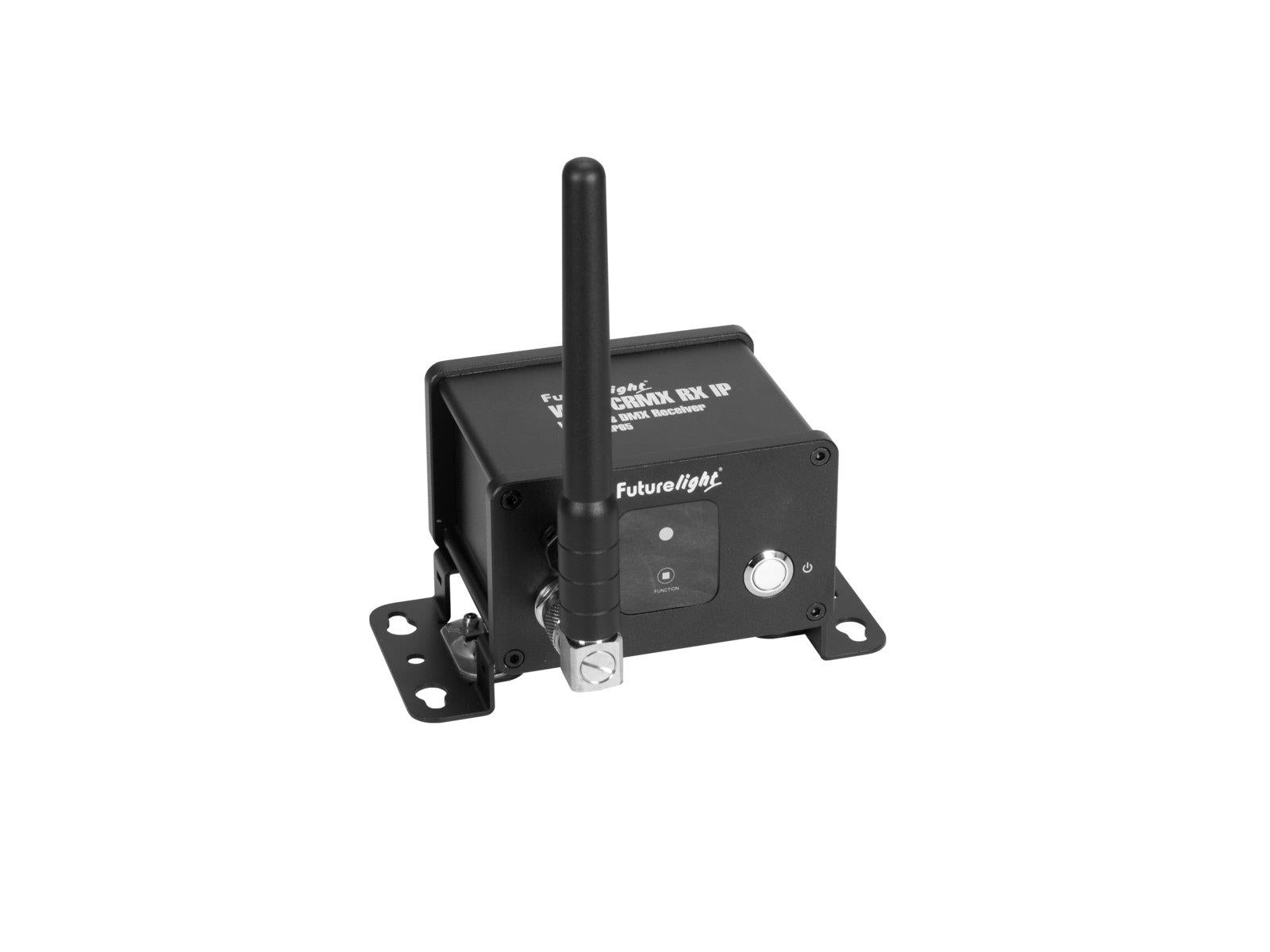

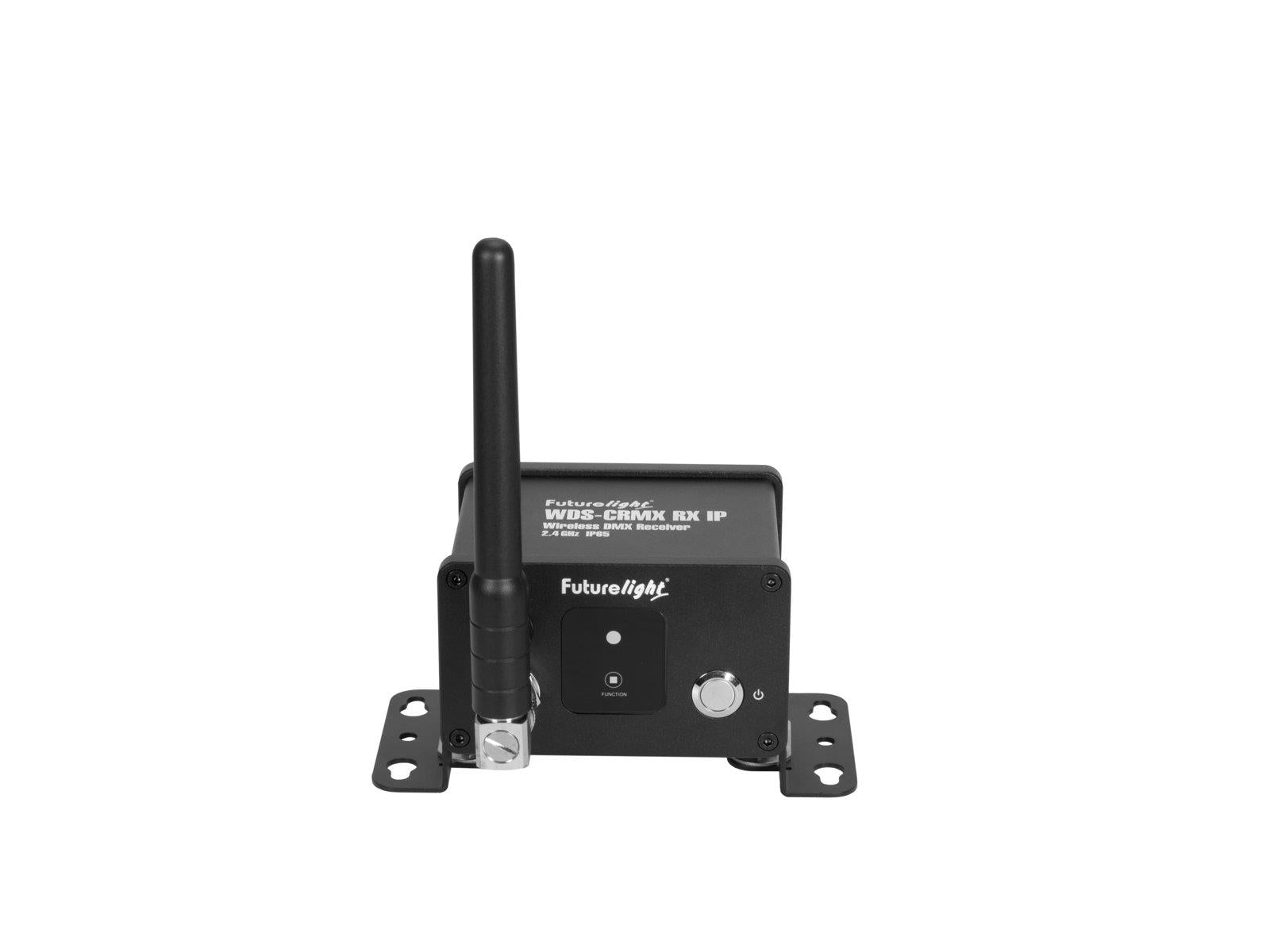

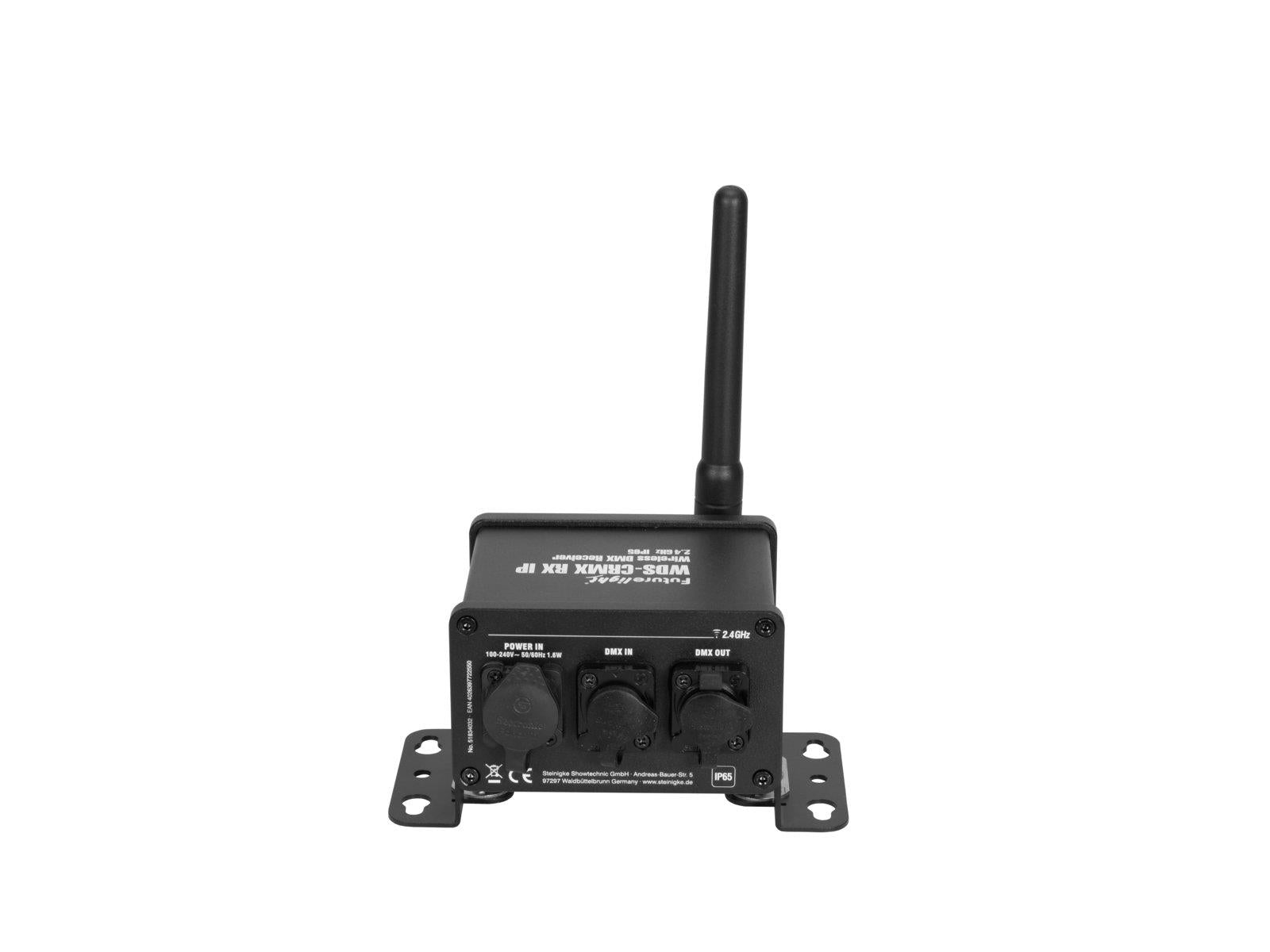

Futurelight WDR-CRMX RX IP Wireless DMX Receiver Outdoor

Description:

Weather-proof wireless DMX receiver, IP65

Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
Control via CRMX by LumenRadio; RDM
Can receive and process up to 512 DMX channels
Lockable power input (IP T-Con)

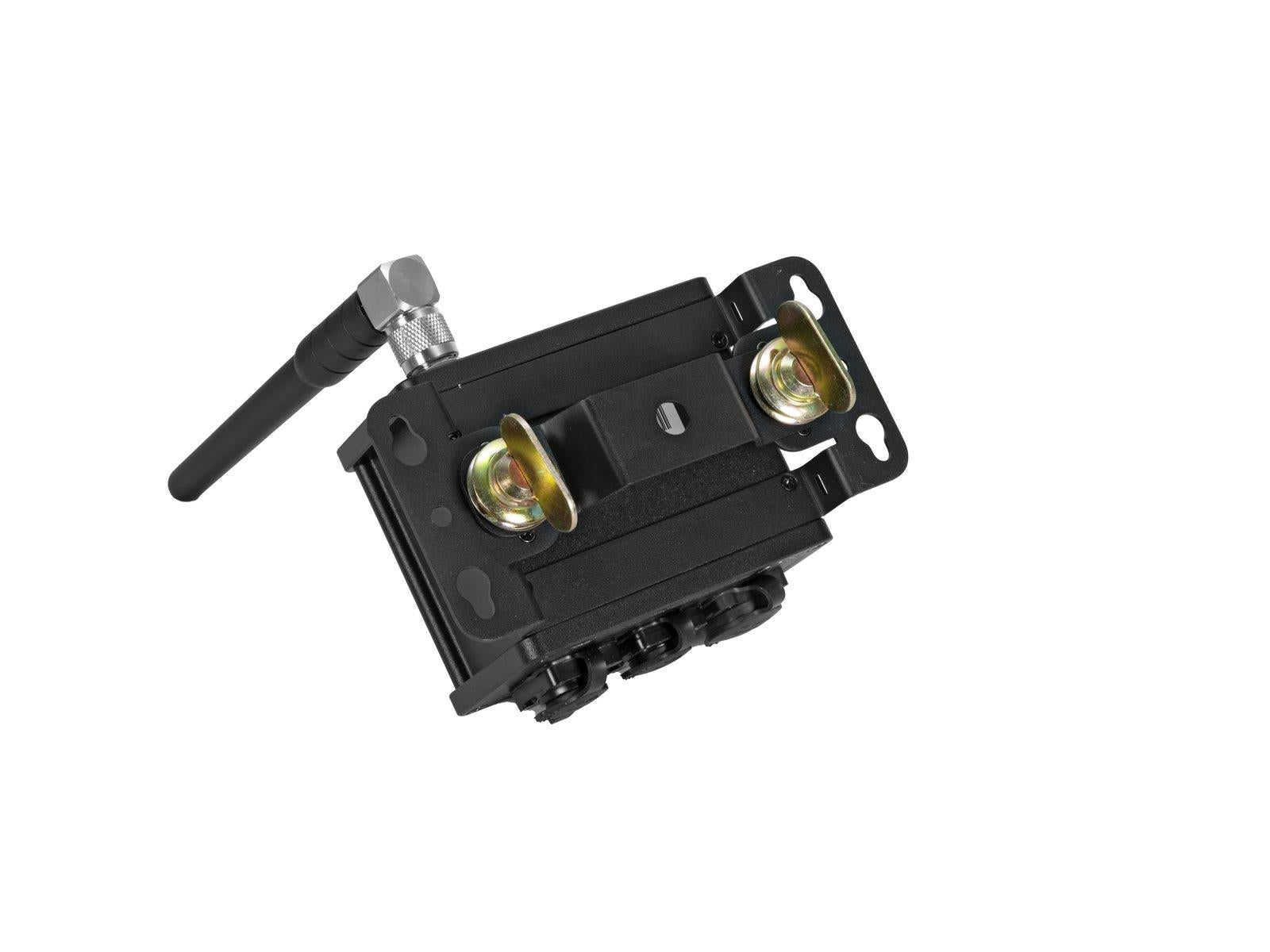

With Omega bracket
Operating range up to 600m with line-of-sight
Suitable for outdoor use IP65
2.4 GHz license-free worldwide
Package contents

1 x device, 1 x user manual, 1 x power cord, 1 x omega bracket, 1 x declaration of conformity

Specifications:

Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 1,6 W
IP classification: IP65
Power connection: Mains input via IP T-Con (M) mounting version power supply cord with safety plug
DMX channels: Input 512
DMX input: 1 x 3-pin XLR (M) mounting version IP
DMX output: 1 x 3-pin XLR (F) mounting version IP
Control: CRMX by LumenRadio; RDM
Attachment system: Omega bracket
Status LED: DMX; level meter
Frequency band: 2.4 GHz
Modulation: GFSK
Antenna gain: 5 dBi
Range: Range up to 600m with line-of-sight
Color: Black
Dimensions:
Length: 17,3 cm
Width: 15,6 cm
Height: 9,2 cm
Weight: 1,30 kg
