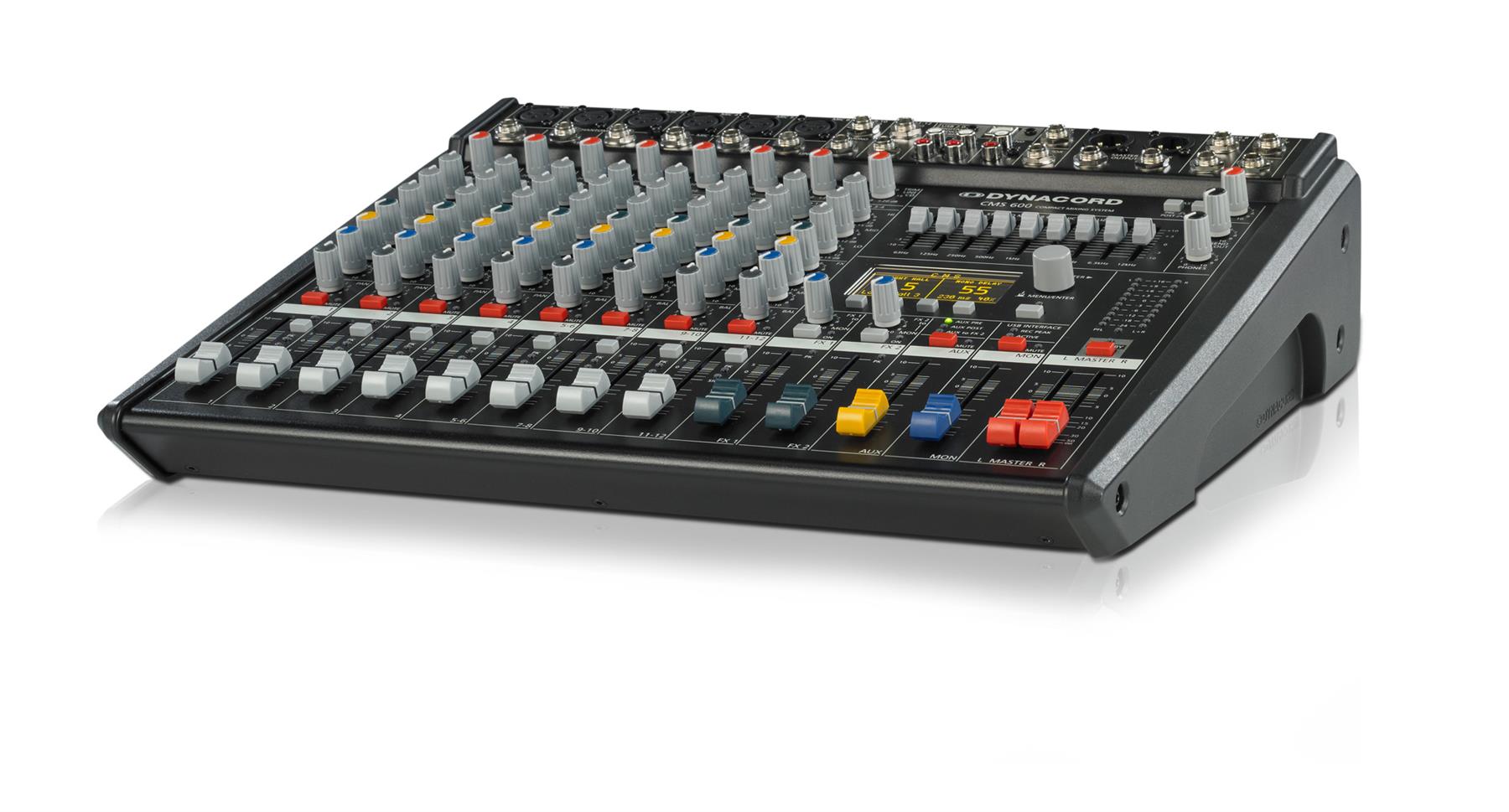

Dynacord CMS600-3 Mixer Mixing Desk *B-Stock

Thanks to its impressive feature set and versatility, the CMS 600-3 mixer is the ideal choice for all professional applications in which few channels, yet high audio quality, are required. Being light and compact, it poses no transport problems. The CMS 600-3 mixer is also a great solution in many fixed installation applications.

Intuitive mixer section: with 8 input channels with 4 Mic/Line, 2 Mic/Stereo-Line, 2 Stereo-Line inputs
2 High-Quality FX processors, editable with 100 factory and 20 user presets
Professional 4x4 24-bit/96kHz USB interface, recording software and MIDI interface for FX control
Stereo EQ for the main mix
First-class components ( e.g. ALPS faders and potentiometers)
Large, contrast-rich OLED display
Lightweight (5.8kg) super compact package
The MIC/LINE Channels
The DIGITAL AUDIO Interface
Master
Stereo Effects and Processing

Specificatons
Channels: 4 +2 + 2
MIC/Line-Mono: 4
MIC/Line-Mono / USB-Stereo (Super Channel): 2
Line L-R / CD-IN-Stereo: 2
Auxiliarys (AUX, MON): Pre/Post switchable, Pre
MIC GAIN (LINE -20 dB): +10 to +60 dB
TRIM LINE/CD (Stereo): -10 to +20 dB
THD, at 1 kHz, MBW = 80 kHz:
MIC input to Master A L/R outputs, +16 dBu, typical: < 0.005%
Frequency Response, -3 dB, ref. 1 kHz:
Any input to any Mixer output: 15 Hz to 70 kHz
Crosstalk, 1 kHz:
Channel to Channel: < -80 dB
Mute & Standby switch attenuation: > 100 dB
Fader & FX/AUX/MON-Send attenuation: > 85 dB
CMRR, MIC input, 1 kHz: > 80 dB
Input Sensitivity, all level controls in max. position:
MIC: -74 dBu (155 µV)
LINE (Mono): -54 dBu (1.55 mV)
LINE (Stereo): -34 dBu (15.5 mV)
CD (Stereo): -34 dBu (15.5 mV)
Maximum Level, mixing desk:
MIC inputs: +12 dBu
Mono Line inputs: +31 dBu
Stereo Line inputs: +30 dBu
All other inputs: +22 dBu
All other outputs: +22 dBu
MIC: 2 ㏀
CD In: 10 ㏀
All other inputs: > 15 ㏀
Phones: 47 Ω
All other outputs: 75 Ω (unbalanced), 150 Ω (balanced)
Equivalent Input Noise, MIC input, A-weighted, 150 ohms: -130 dBu
Noise, Channel inputs to Master A L/R outputs, A-weighted:
Master fader down: -100 dBu
Master fader 0 dB, Channel fader down: -92 dBu
Master fader 0 dB, Channel fader 0 dB, Channel gain unity: -82 dBu
LO Shelving: ±15 dB / 60 Hz
MID Peaking: ±12 dB / 2.4 kHz
HI Shelving: ±15 dB / 12 kHz
Master EQ 9-band (63, 125, 250, 500, 1k, 2k, 4k, 6.3k, 12kHz): ±10 dB / Q = 1.5 to 2.5
LO-CUT, mono inputs: f = 80 Hz, 18 dB/oct.
Display: 128 x 64 pixels, OLED
Type: Dual stereo 24/48-bit multi effects processors
Effects presets: 100 Factory + 20 User, Tap-Delay
Remote control: Footswitch, MIDI
Channels: 4 In / 4 Out
AD/DA Conversion: 24-bit
Sampling Rate: 44.1 / 48 / 88.2 / 96 kHz
PC Interface: USB2.0, Female Type B
MIDI Interface: 5-pin DIN connector, In / Out
Mixer Outputs (Relay controlled): AUX, MON, MASTER A L/R
Switching Mode Power Supply (µC controlled): Mains Over/Undervoltage
Phantom Power, switchable: 48 V DC
Power Requirements (SMPS with auto range mains input): 100 V to 240 V AC, 50 Hz to 60 Hz
Power Consumption, at 1/8 maximum output power, 4 Ω: 35 W
Safety Class: I
Ambient Temperature Limits: +5 °C to +40 °C (40 °F to 105 °F)

Dimensions
417 x 109 x 348

Weight
5.8 kg
