Briteq BTI-LIGHTSTRIKE IP66 Led Pixel Bar RGB

Description:

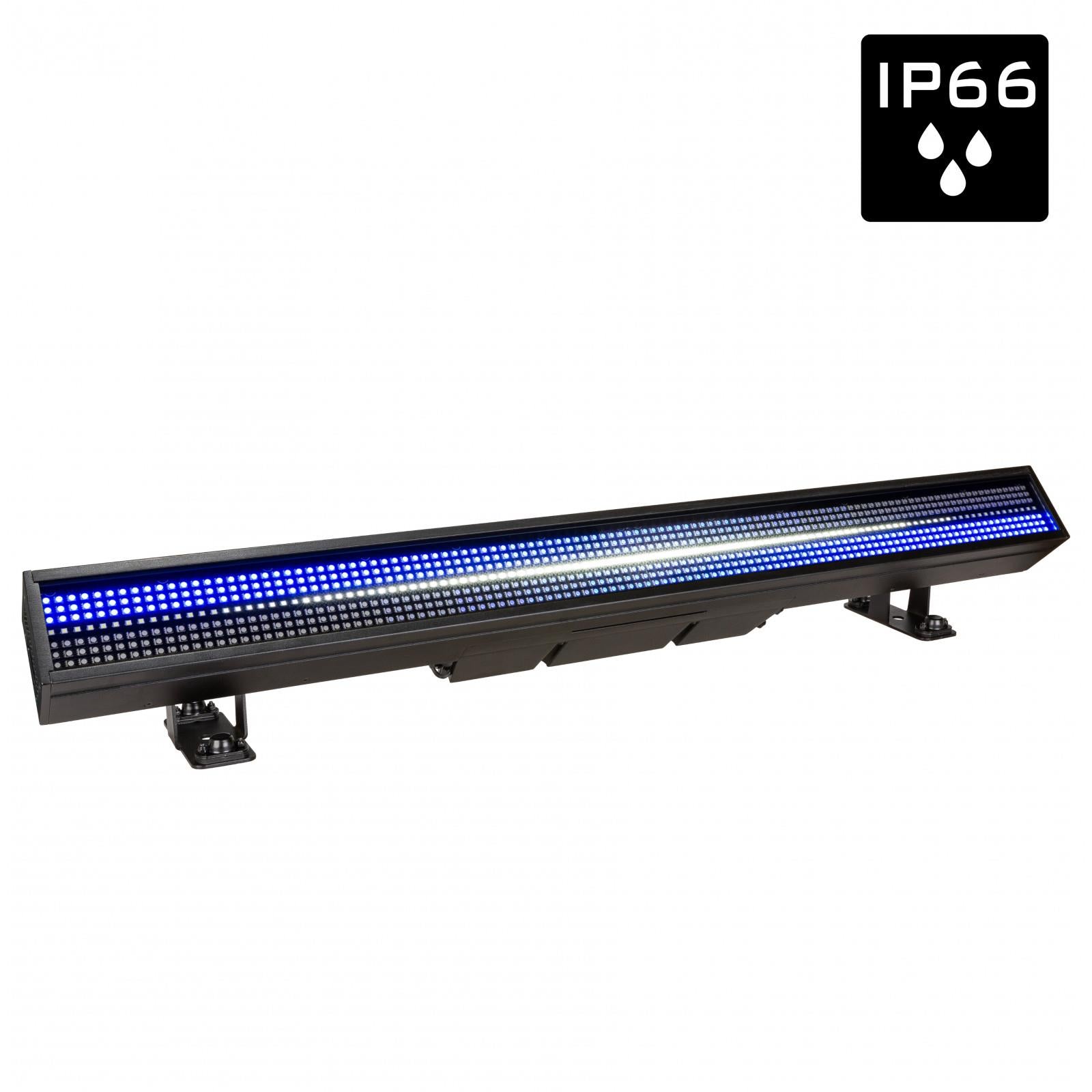

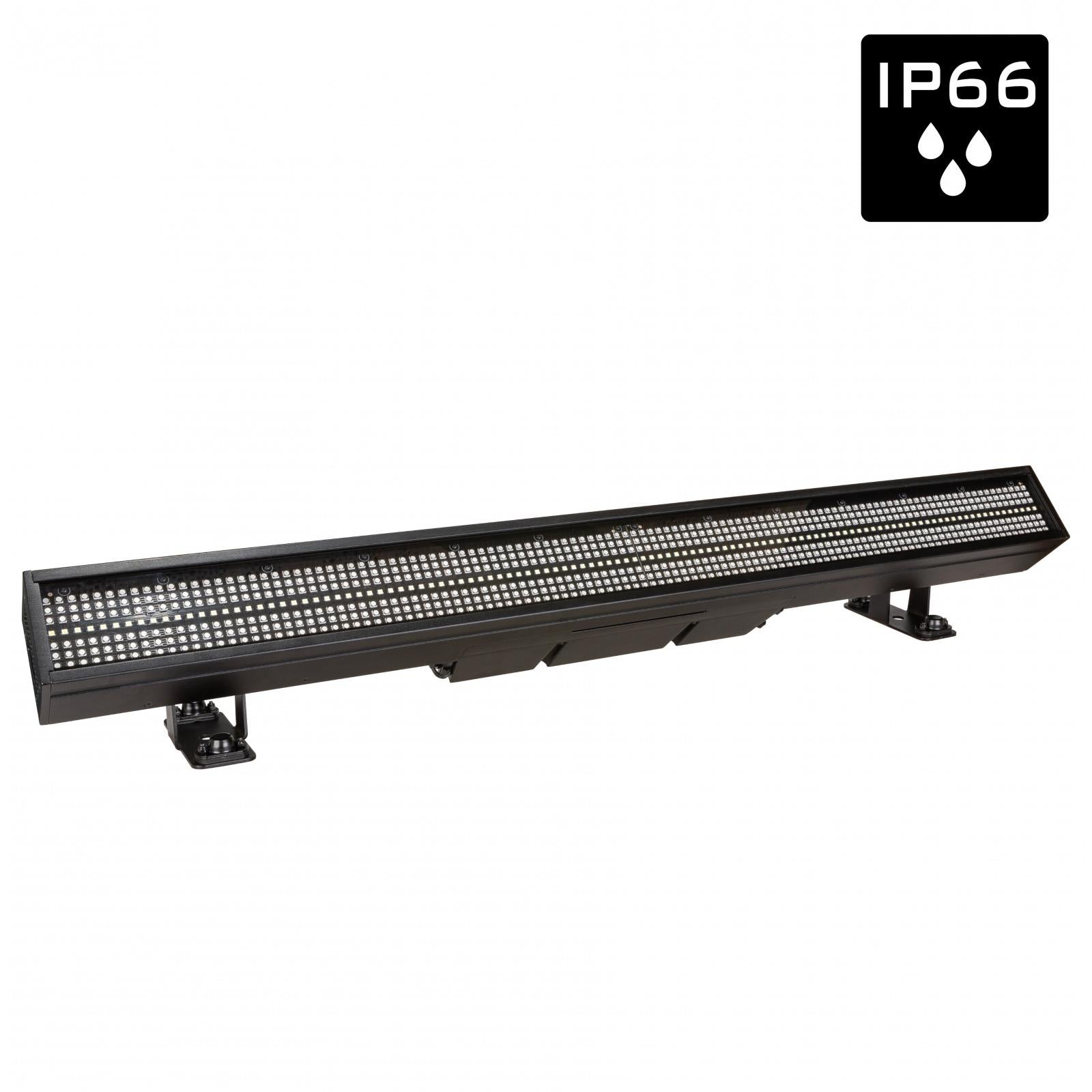

An extremely powerful and versatile OUTDOOR hybrid LED Pixel mapping bar with 112 super bright CW leds (16 zones) and 672 RGB leds (32 zones).

Features:

BTI-LIGHTSTRIKE IP66 is a very versatile outdoor hybrid LED Pixel mapping bar, excellent for many rental jobs, TV-studios, concert stages, discotheques and many more.
This hybrid LED bar consists of 2 complementary effects for maximum impact:112 extremely bright cold-white LEDs, divided into 16 zones, form a central line to create awesome and overwhelming strobe effects.
672 RGB LEDs on both sides of the central white strobe line, arranged in 32 powerful LED pixel zones of 21 RGB LEDs each, provide a powerful tool for creating stunning, colorful moving images.
Multiple operating modes allow for flexible use in any setting imaginable:Extended DMX modes with up to 123 channels where you can control each pixel individually via media servers to create the most insane images and hallucinating effects.
Limited-channel DMX modes (only 15CH) where the built-in effect macros ensure that incredibly creative shows can be built with relatively simple DMX controllers in very little time.
Besides the standard DMX with RDM support, there is also full support for Art-net and sACN allowing large sets to be built up and controlled quickly and efficiently.
The BTI-LIGHTSTRIKE IP66 is very compact and has a low weight which allows it to be quickly incorporated into all kinds of scenery.
Fully compatible with the indoor BTX-LIGHTSTRIKE: can be used together in 1 setup!

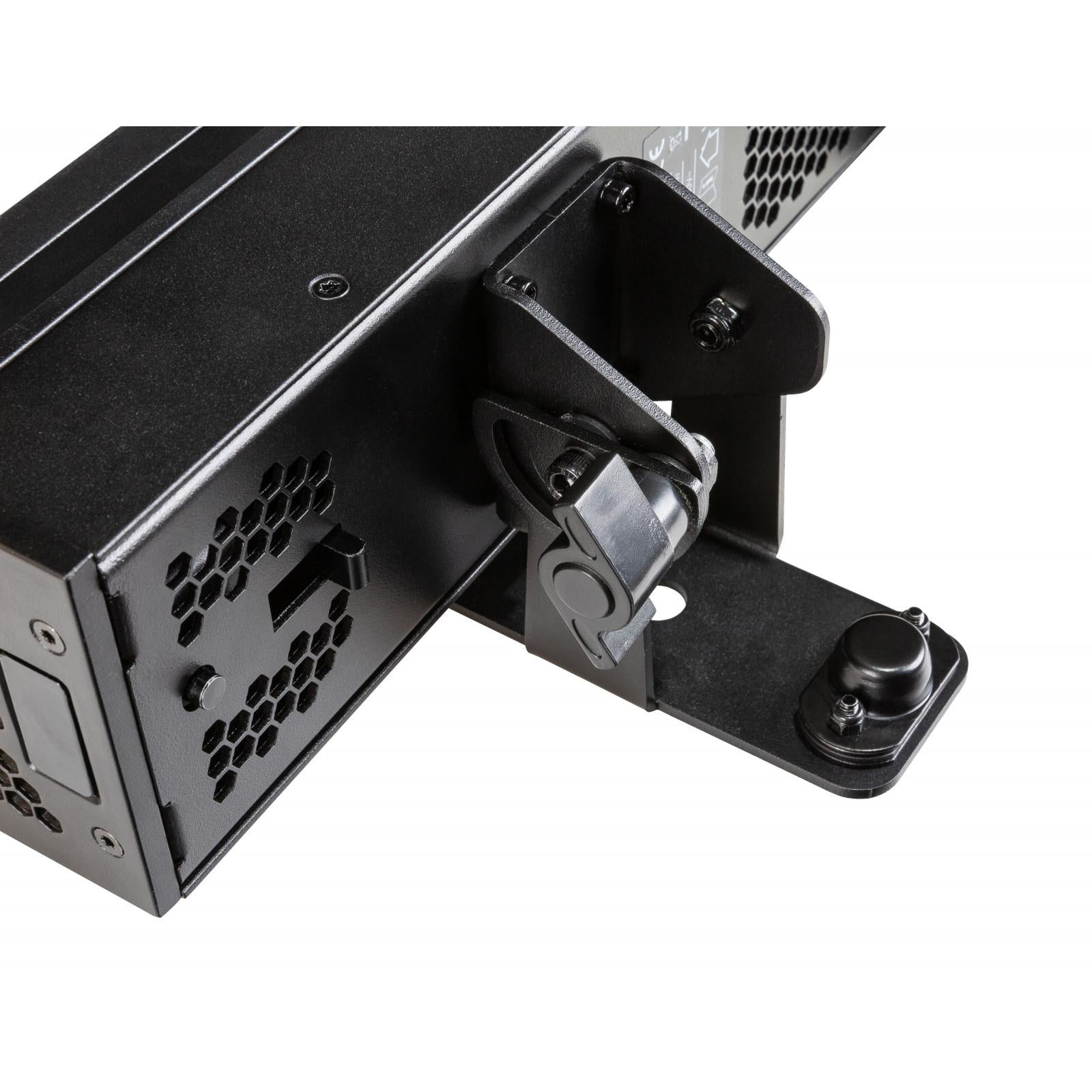

The tilt mounting brackets can be equipped with standard clamps and/or used with the included omega brackets.

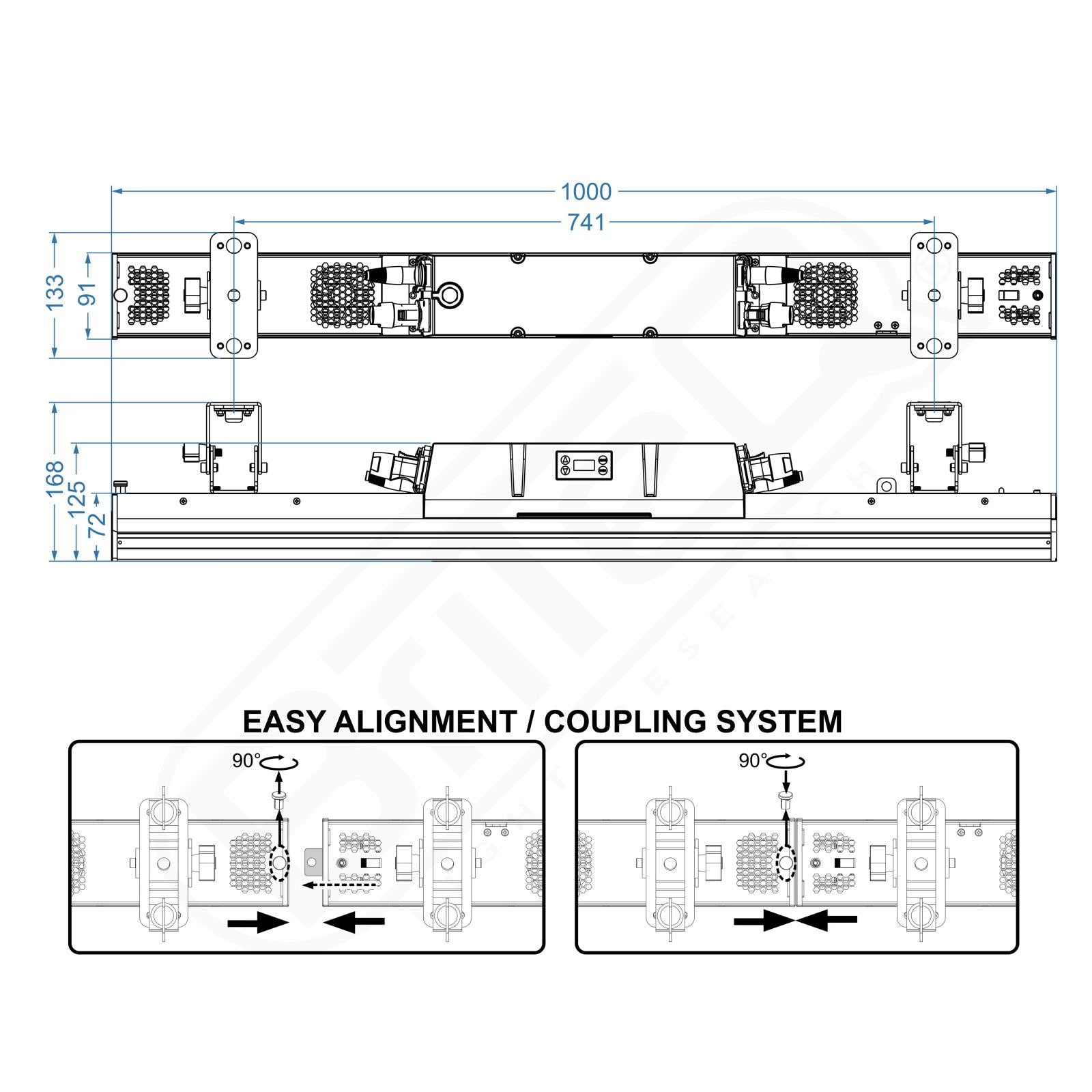

Equipped with an inventive quick-release mechanism that allows you to quickly connect and align multiple projectors.

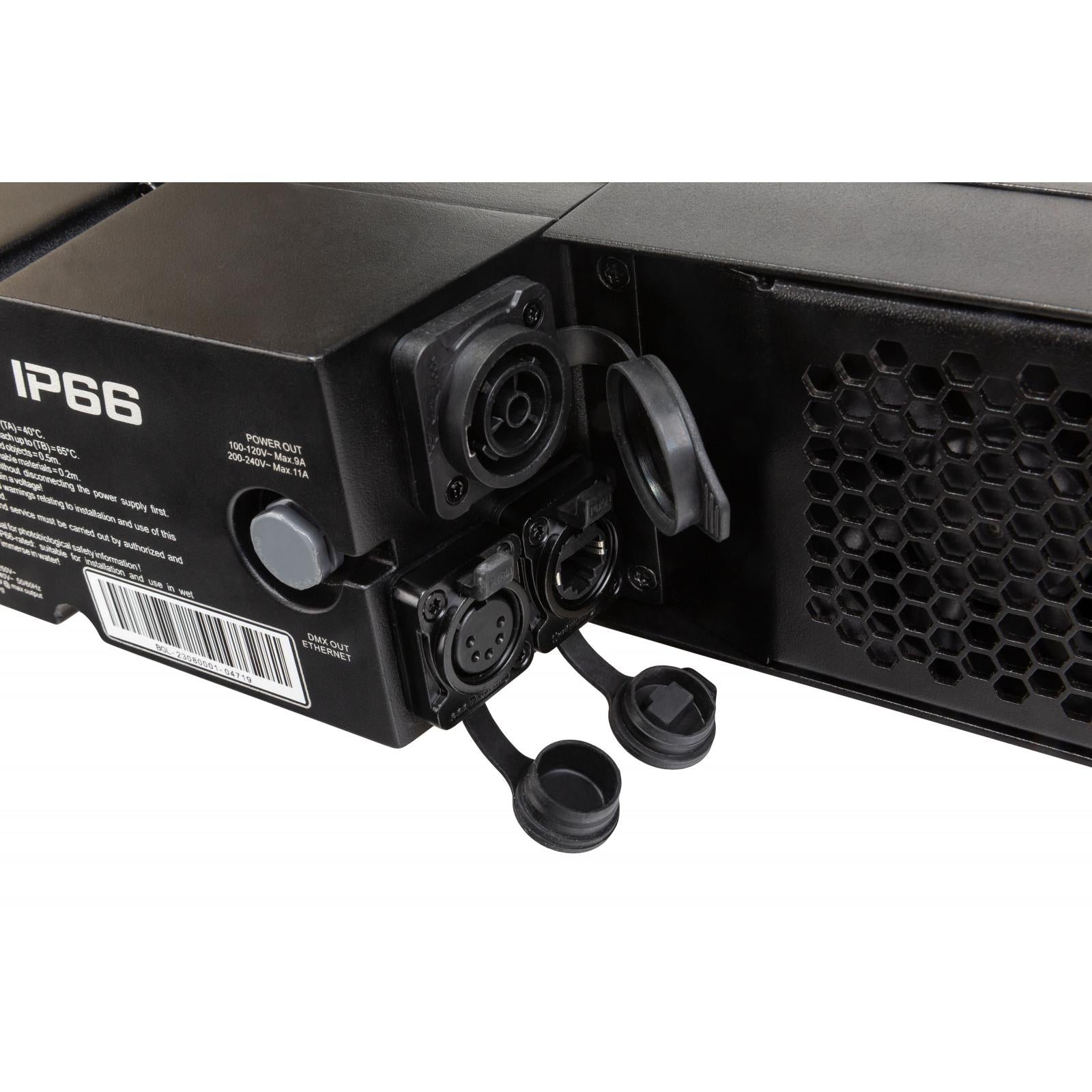

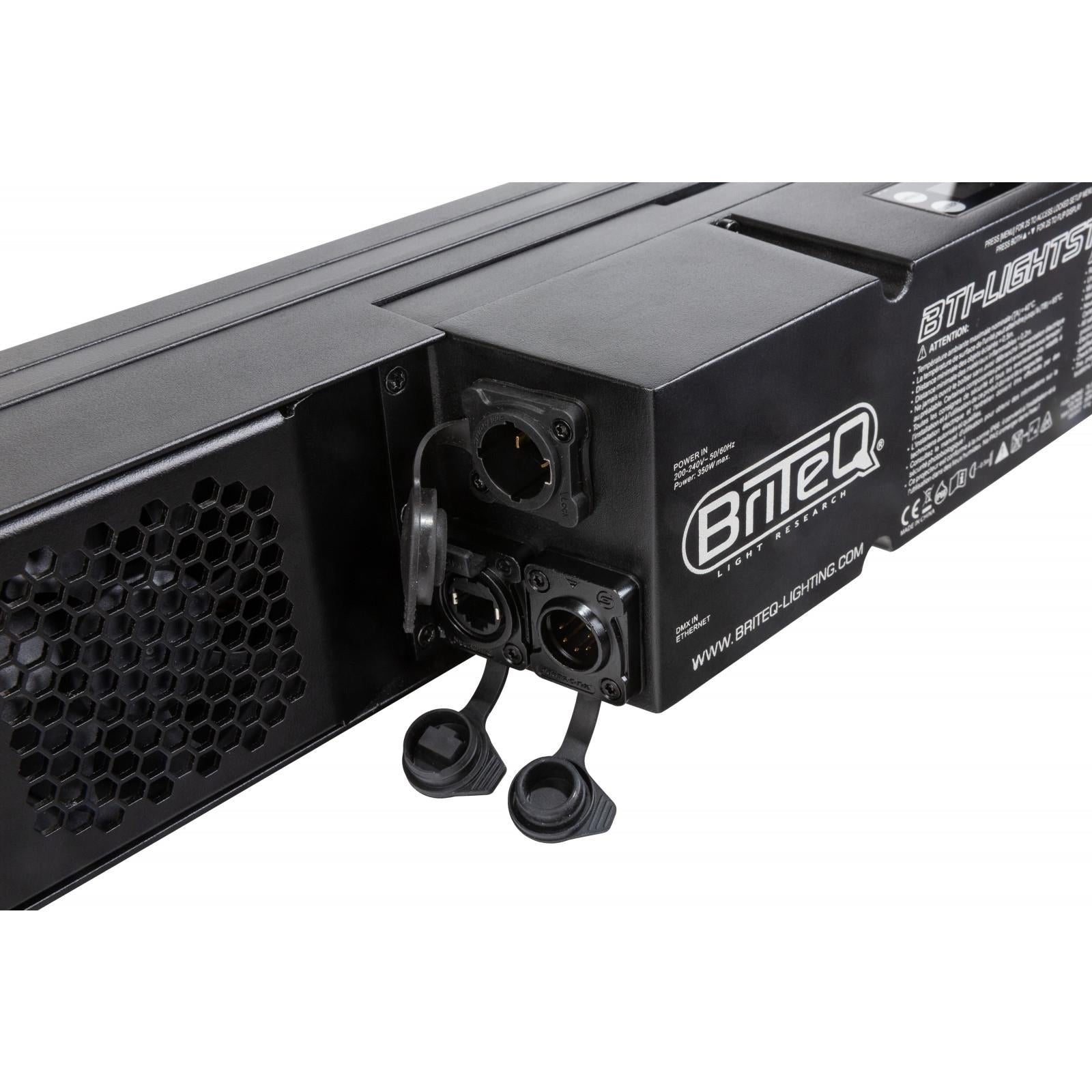

Standard equipped with 5pin XLR, RJ45 network and PowerCON TRUE1 compatible connector in/outputs for easy daisy chaining.
The standard 5pin XLR connectors can be easily converted to 3pin XLR using the optional conversion kit “BT-XLR5TO3 KIT”.
Very silent operation, thanks to temperature-controlled cooling fans.
Alphanumeric OLED-display and touch keys to select the different options in the setup menu.
Four dimmer curves: linear, square, inverse square, S-curve.

Specifications:

General
Dimensions (cm): 100 x 9.1 x 12.5
Weight (kg): 9
Power input: AC 100 - 240V, 50/60Hz
Energy Label: No
Power consumption W: 285
Color: black
Display: OLED
Fixation: included omega bracket
IP rating: outdoor

Control
Modes: DMX
Protocol: Art-Net, sACN, DMX, RDM
Programmable: No
Upgradable software: Yes
Minimum DMX channels: 6
Maximum DMX channels: 123

Light
Lamp socket: No
Lamp: LED
Colors: RGBW
Mix colors: Yes
Min. beam angle (°): 116
Max. beam angle (°): 116
Max. refresh rate (kHz): 12

Connections
Input: 5 pin XLR, artnet, RJ45, rdm, PowerCon® TRUE1 or compatible
Output: 5 pin XLR, artnet, RJ45, rdm, PowerCon® TRUE1 or compatible

Brand: BRITEQ
EANCode: 5420025647199
