Briteq BT-ORBIT LED Moving Head Light 8400 Lux @5m / 10°

Successor of the extremely popular BT-W19L10 ZOOM with increased (65%) output!

Features:

This successor of the extremely popular BT-W19L10 ZOOM is ready to serve stages, rental jobs and discotheques all over the planet!

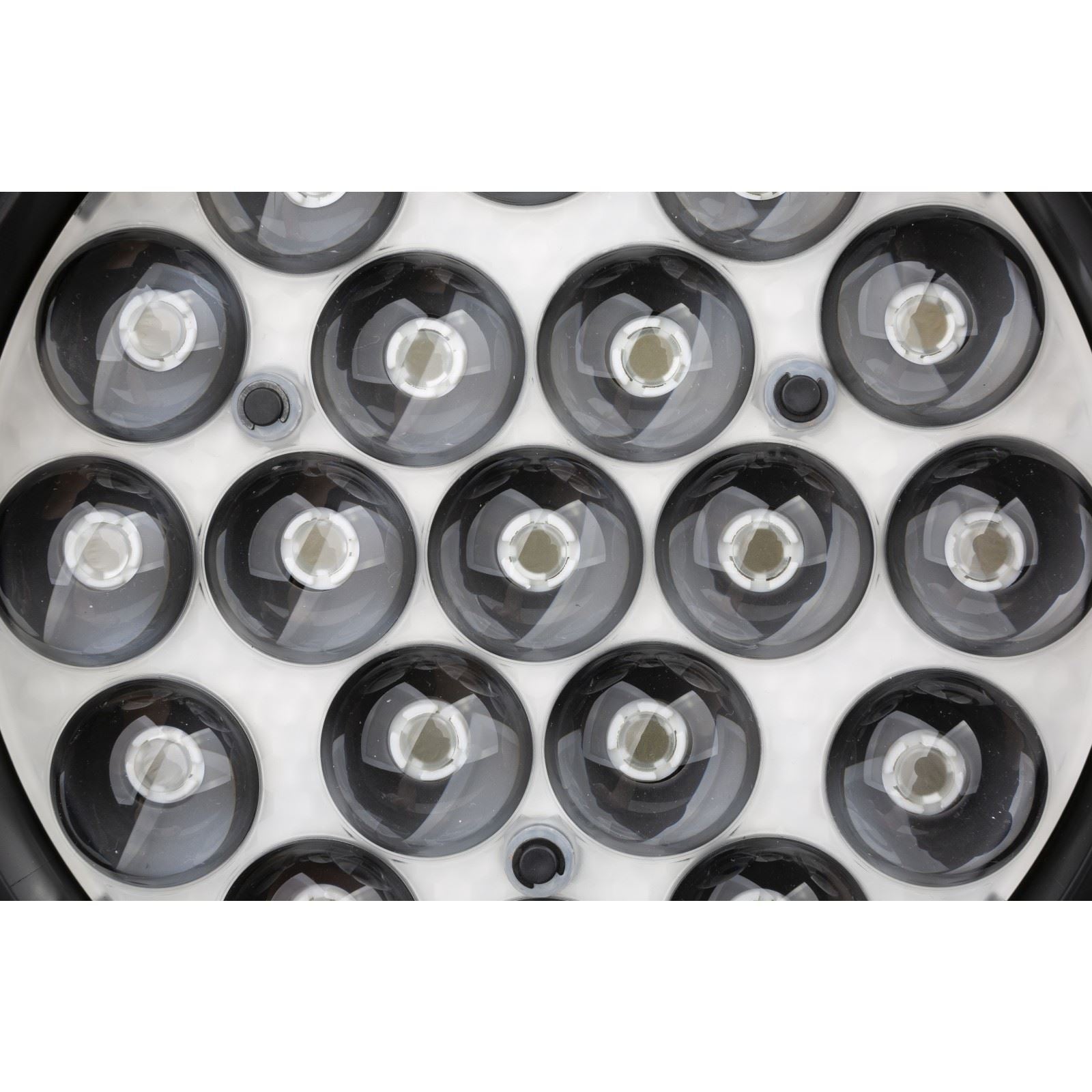

The 19pcs 4in1 RGBW 15W leds, combined with redesigned optics increase the output of the original BT-W19L10 ZOOM by 65% !!! (8400 lux @5m /10°)
Extremely bright beam with 3 individually controlled LED-rings and 10° to 60° zoom with perfect color mixing for maximum creativity.
Prepared for wireless DMX: just plug-in an optional WTR-DMX DONGLE !
Perfect color consistency and extremely smooth dimming from 0% to maximum output!
High speed pan/tilt movements with 16bit resolution assure dynamic show programming.
Calibrated color macros for easy and fast show programming
Two different 14ch DMX channel modes which are 100% compatible with the BT-W19L10 ZOOM.
Additional 27ch DMX channel mode for full 3 LED-ring control, including all kinds of effect macros.
Automatic X/Y re-positioning
Procon in/outputs: easy daisy chaining of several units up to 16A.
3pin & 5pin DMX in/outputs for maximum flexibility in a professional environment
Easy firmware updates keep your machine up-to-date at all times (optional firmware updater needed)

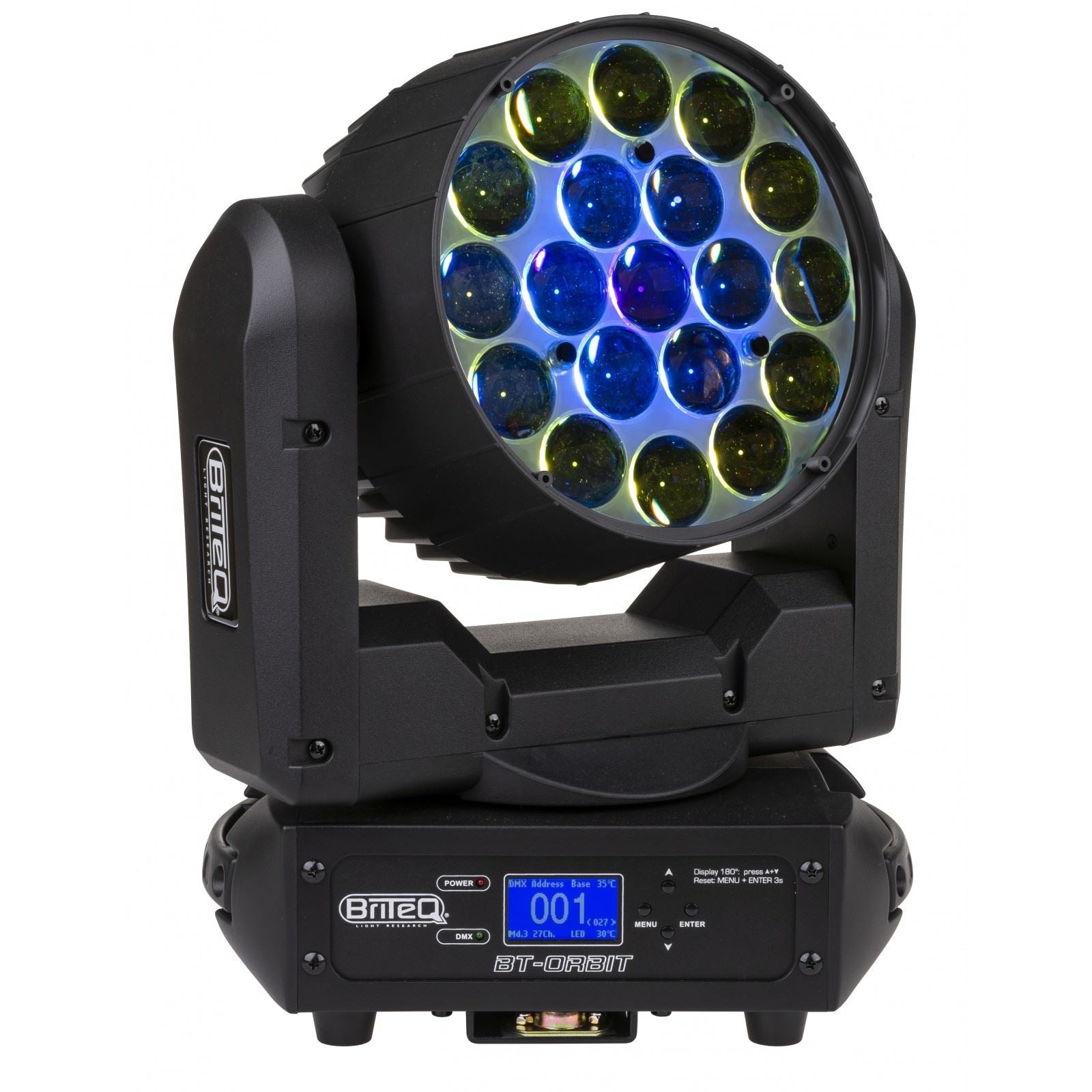

The LCD-display assures easy navigation in the different setup menus
High efficiency and low power consumption, only 290W
Noise level at 1m (no movement): 30.8 dB
Noise level at 1m (with pan/tilt movement): 35.7 dB
Equipped with omega brackets for fast installation

Specifications:

General
Dimensions (cm): 39.5 x 32.5 x 22.5 cm
Weight (kg): 9.2
Power input: AC 100 - 240V, 50/60Hz
Energy Label: No
Power consumption (W): 290
Color: black
Display: LCD
Fixation: optional omega bracket
IP rating: indoor

Control
Modes: standalone sound, standalone automatic, manual, DMX, Master/Slave
Protocol: DMX, Wireless DMX
Programmable: No
Upgradable software: Yes
Minimum DMX channels: 14
Maximum DMX channels: 27

Light
Lamp socket: No

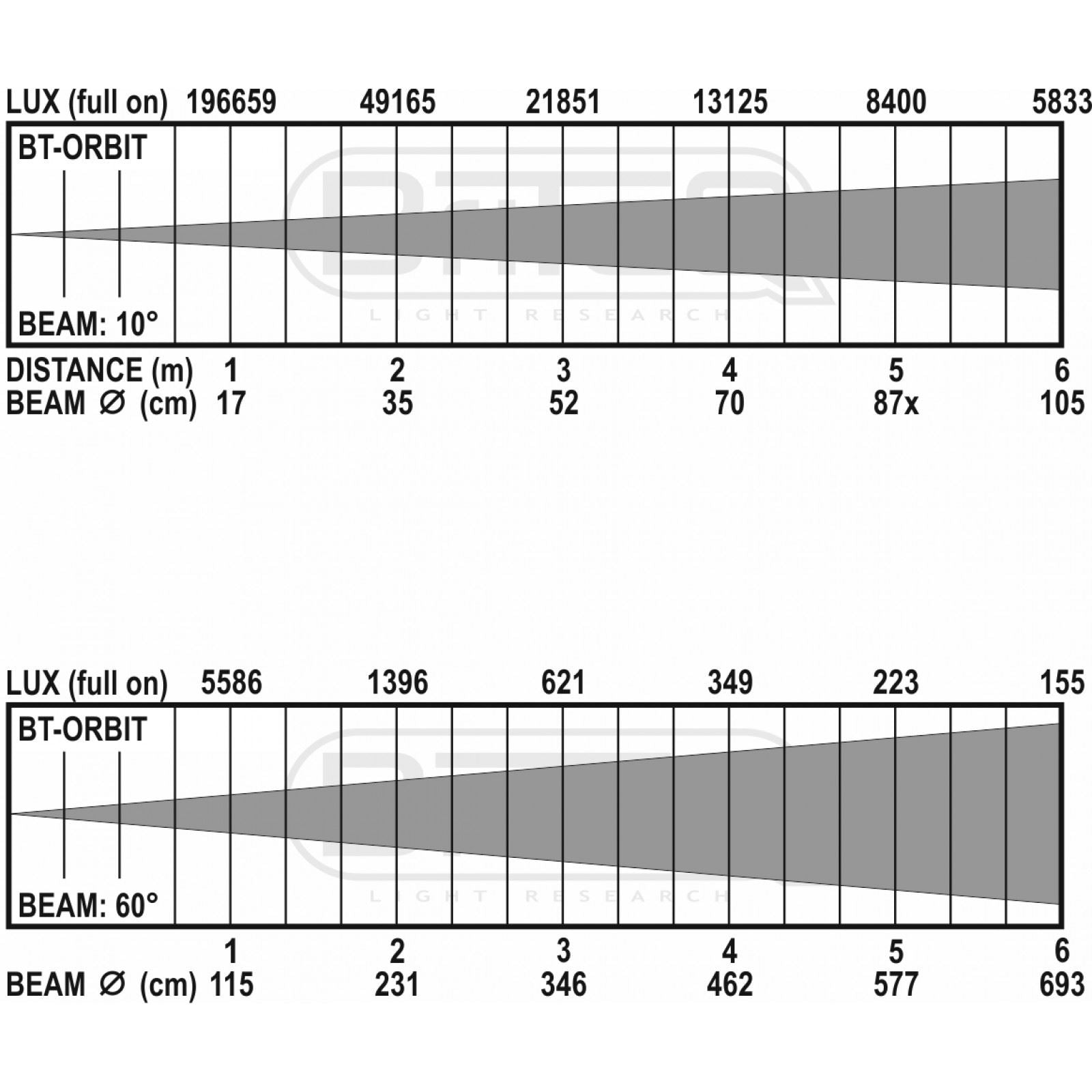

Lux: 577 lux @ 60° @ 5m, 8400 lux @ 10° @ 5m
Lamp: LED
Colors: RGBW
Mix colors: Yes
Functions: motorized zoom
Min. beam angle (°): 10
Max. beam angle (°): 60
Max. refresh rate (kHz): No

Connections

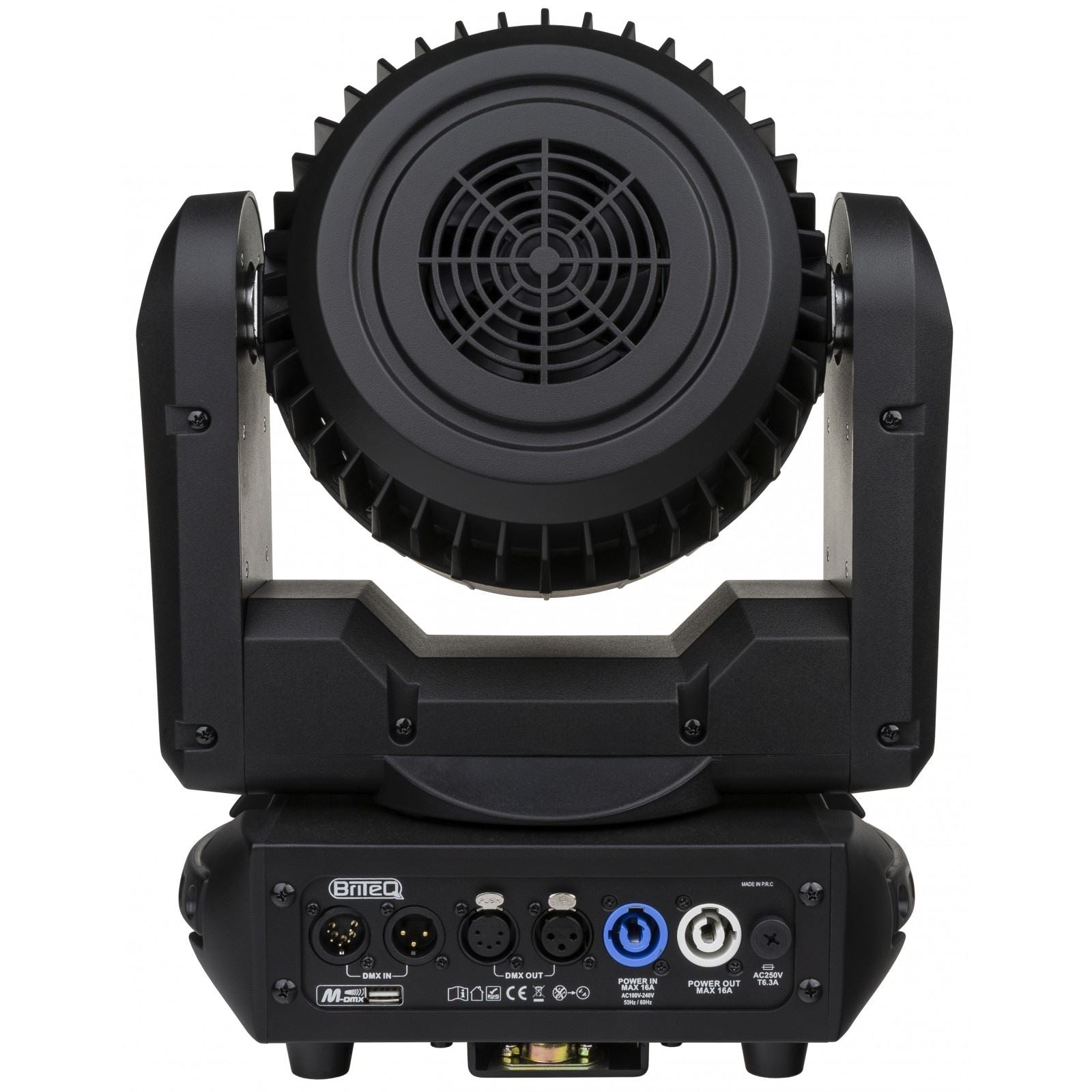

Input: 3 pin XLR, 5 pin XLR, wireless DMX optional, USB, PowerCon® or compatible
Output: 3 pin XLR, 5 pin XLR, PowerCon® or compatible

Brand: BRITEQ
EAN Code: 5420025644235
