Abstract XLite Pro System Black - 2 Pack Bundle inc bags, controller & tank trap bases

Description

Xlite Pro Bundle of 2 inc heavy duty tank trap bases.

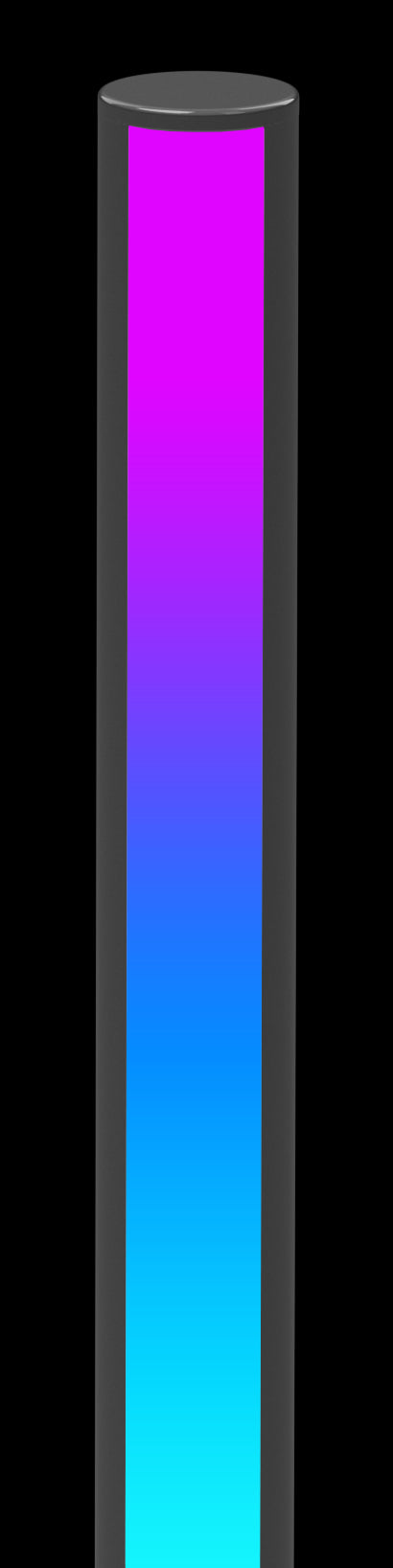

The Abstract AVR XLite Pro is a 2m tall RGBW LED pixel tube light containing 140 LEDs that are driven by the X-Drive Duplicator (processor) units.

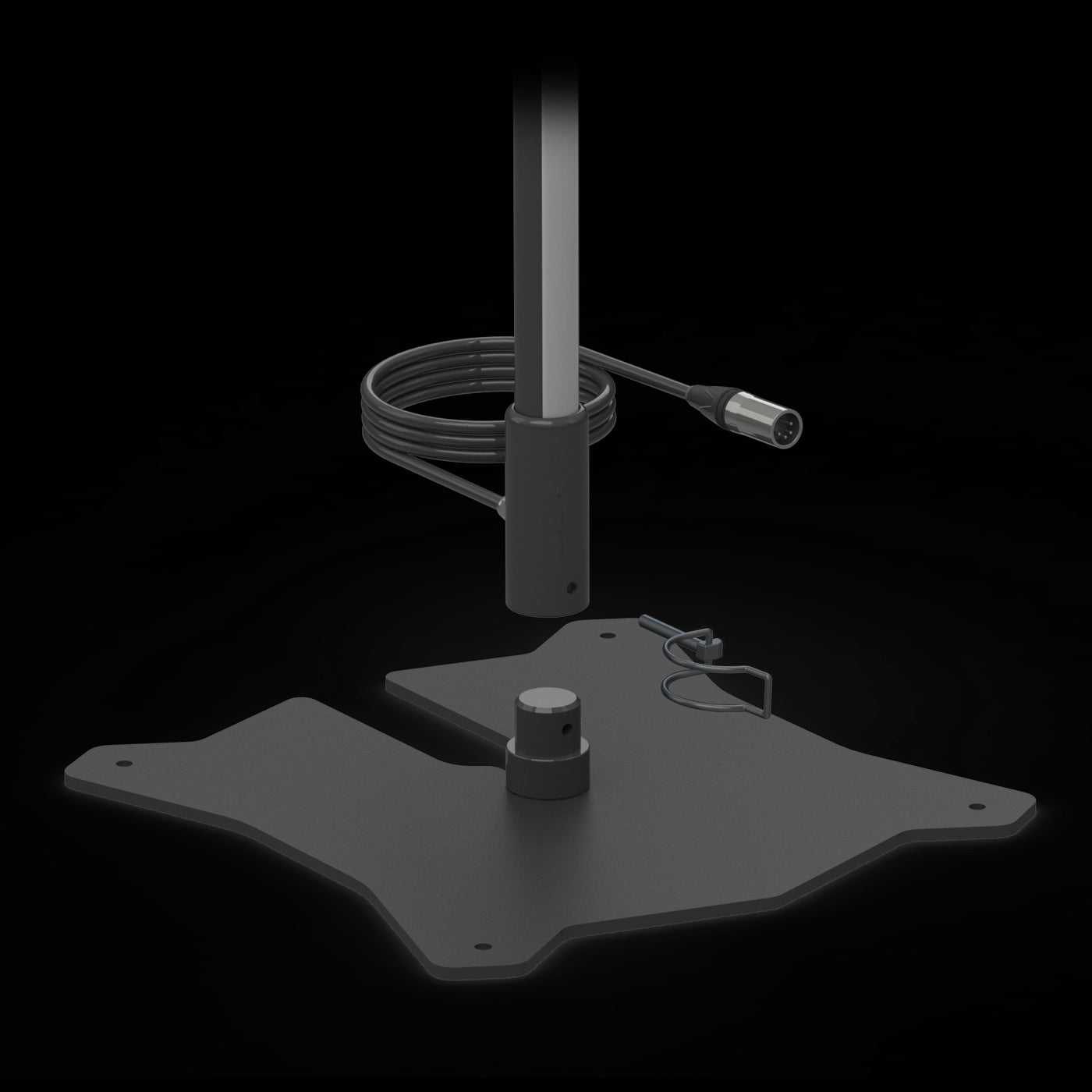

XLite Pro stands firm on its quick release tank trap base for instant load in and setup making them the premium choice of those looking for superior eye candy lighting effects fired from DMX macros built right into the X-Drive units

The XLite sets the bar for lighting excellence, with a high performance mix-at-source multi-chip LED housed in a precision engineered anodised aluminium housing.

The lighting enthusiasts freestanding pole of choice.

Channels Pixel controlled
Wattage 30W
Input Current Constant Voltage 5V
IP Rating IP20
LED Type RGB
Housing 35mm
Lens Options 160° Frost
LED Connection RJ45
Lumen Output 300lm
Operating Temp Range -20 to 50 °C
Height 2000mm
LED lite length 1950mm
LED Pitch 14.2mm​

Duplicator 4 - Controller
Voltage: 220 – 256V
Power Consumption: 200w
Control: DMX (via 5 pin XLR )
Mains Input: PowerCon
Output: 4x 4 Pin XLR sockets
Display: 4 Digit
Modes: Demo, Program Replay, Sound, Test, Fixed Colours, DMX Control Macros, Pixel Mapping + RGB+W LED Drive

Voltage: 5V
LED’s Per Meter: 70 (140 per XLite Pro)
LED Type: SMD5050
Power Consumption: 18W/M (36w per XLite Pro)
Available Housing Colours: White / Black / Silver (Silver & White made to order approx 2/3 weeks)
Channels: 4 Channels Per Pixel [RGBW – Red, Green, Blue, White]
IP Rating: IP20
Housing: Aluminium
Connection: 4 Pin XLR
Cable Length: 2m Trailing Tail Per XLite Pro
Controllable Pixels: 1 LED = 1 Pixel
Operating Temperature Range: -20° to 50°C

COMPATIBLE WITH XDRIVE PRO 2 / XDRIVE DUPLICATOR 2/4/6

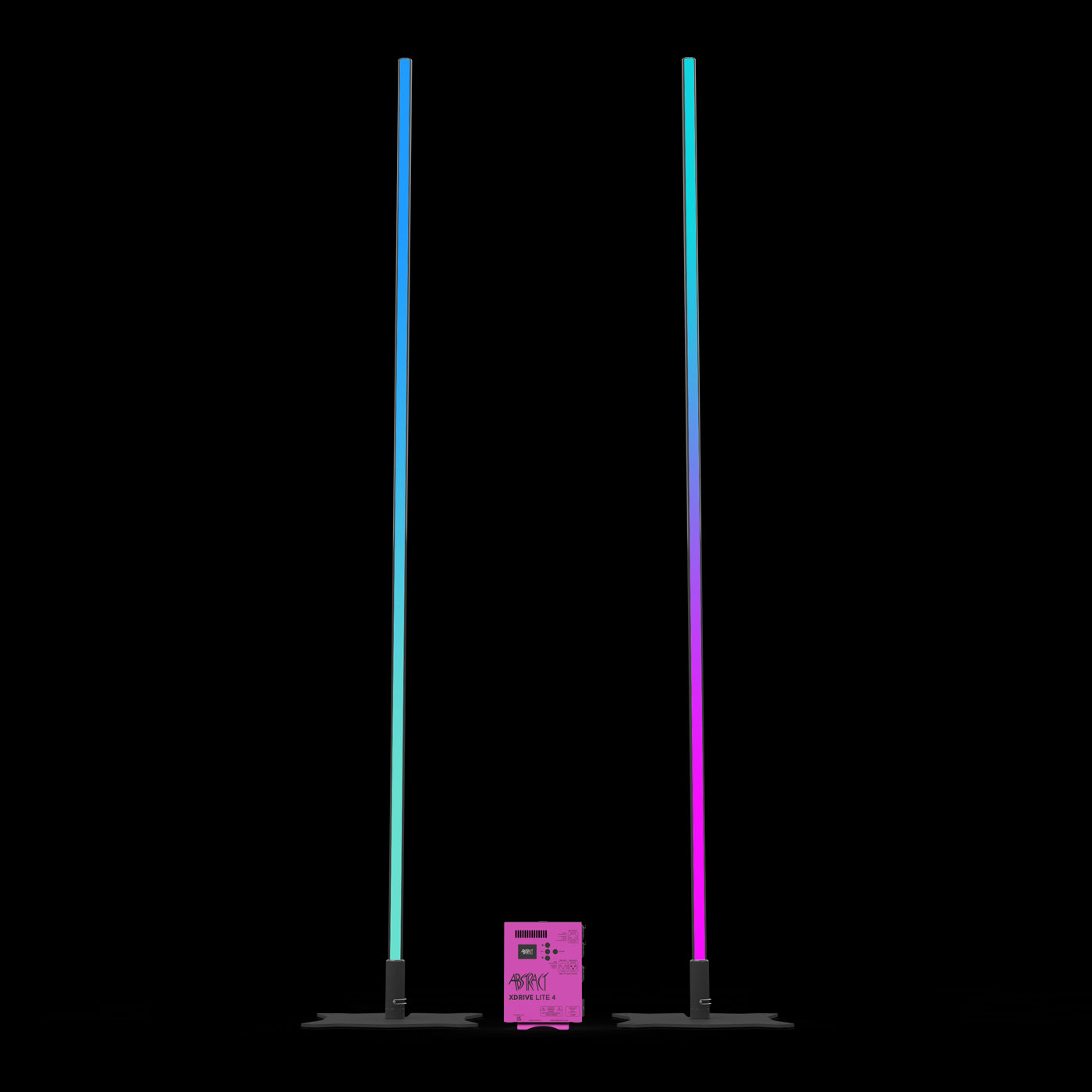

Each bundle of 2 contains:
1x X-Drive Duplicator (processor) per 4 XLite Pro
1x Tank trap base plates per XLite Pro
