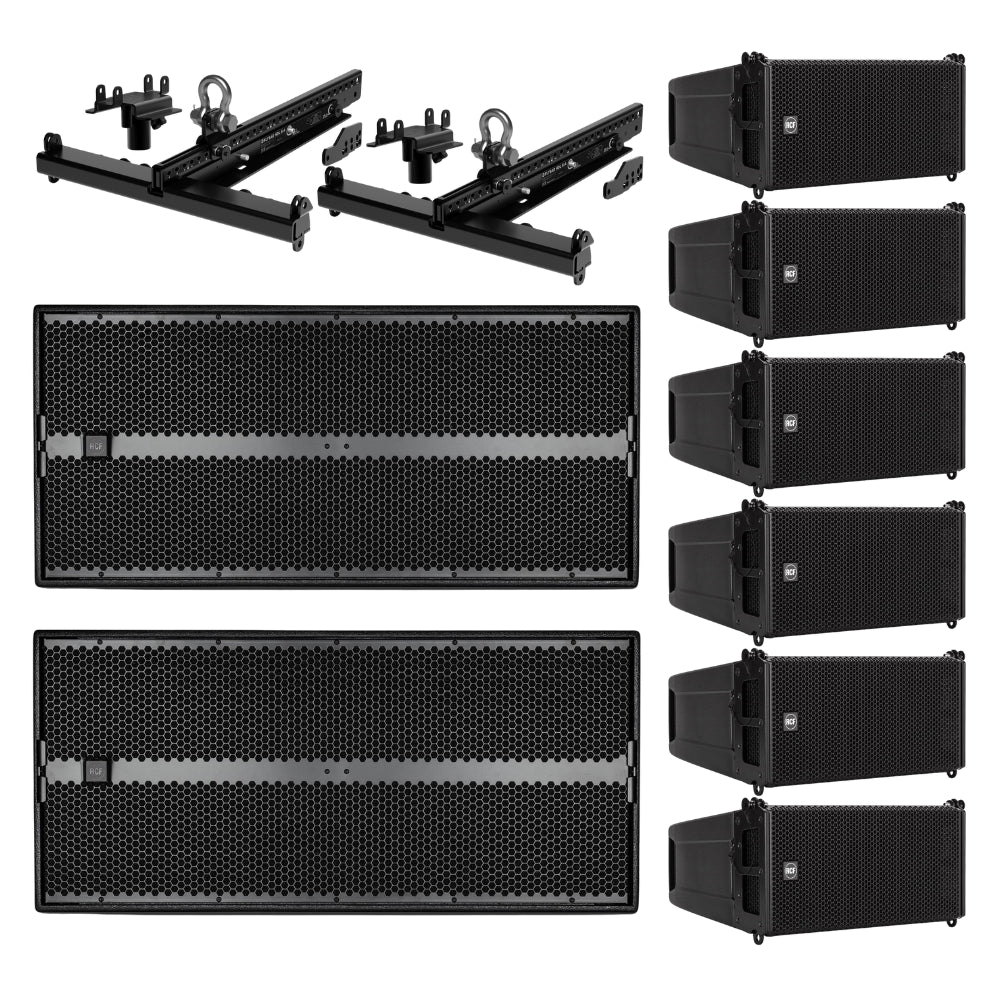

6x RCF HDL-6A Line Array Speakers + 2x RCF SUB9006AS Subwoofer and 2x HDL6A Flybar

Description:

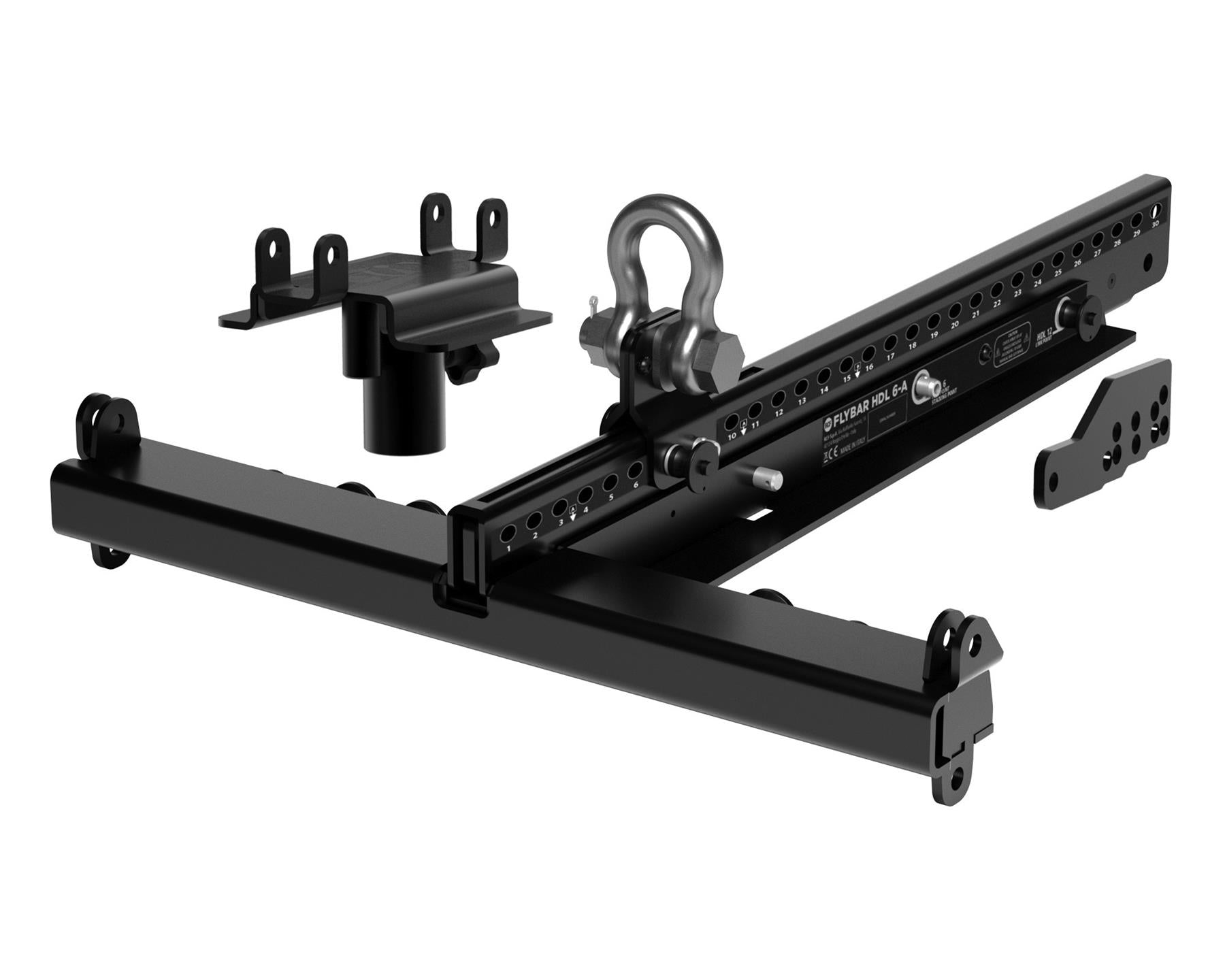

This bundle includes 6x RCF HDL-6A Line Array Speakers + 2x RCF SUB9006AS Subwoofers and 2x HDL6A Flybar for mounting line array speaker modules.

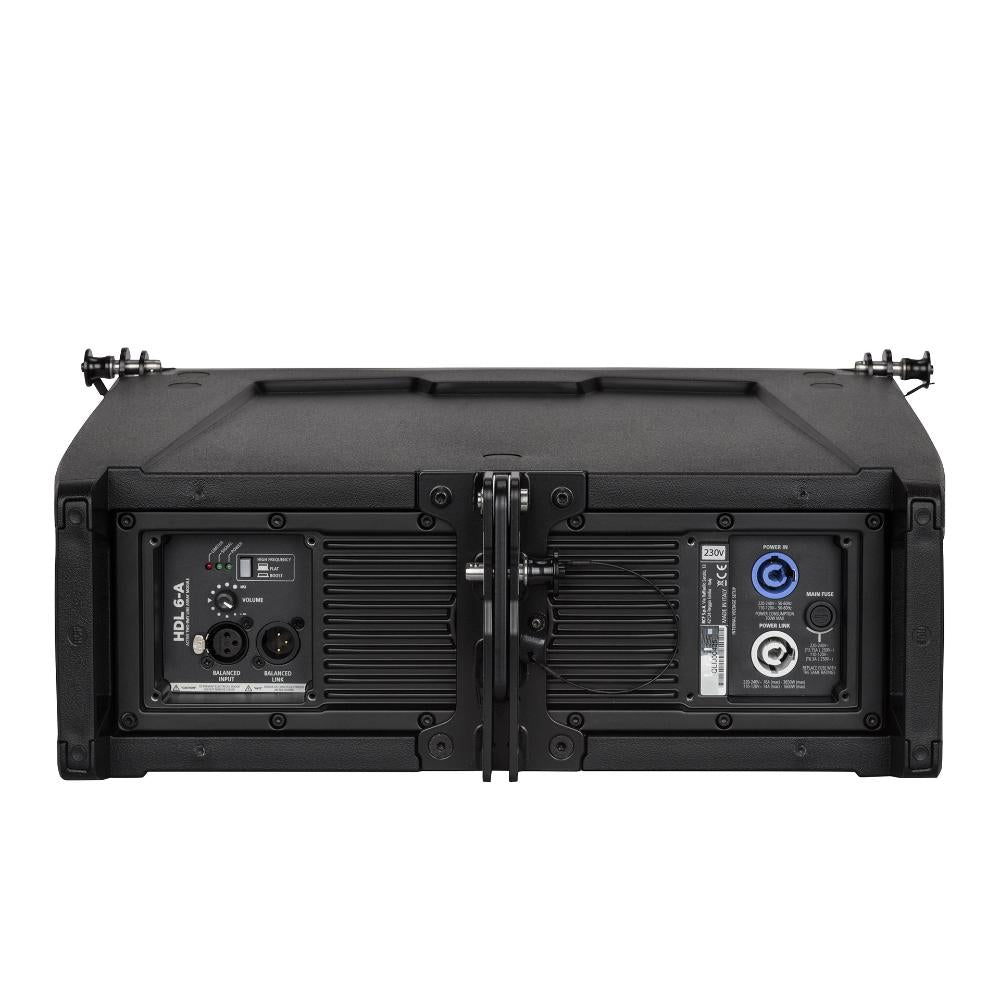

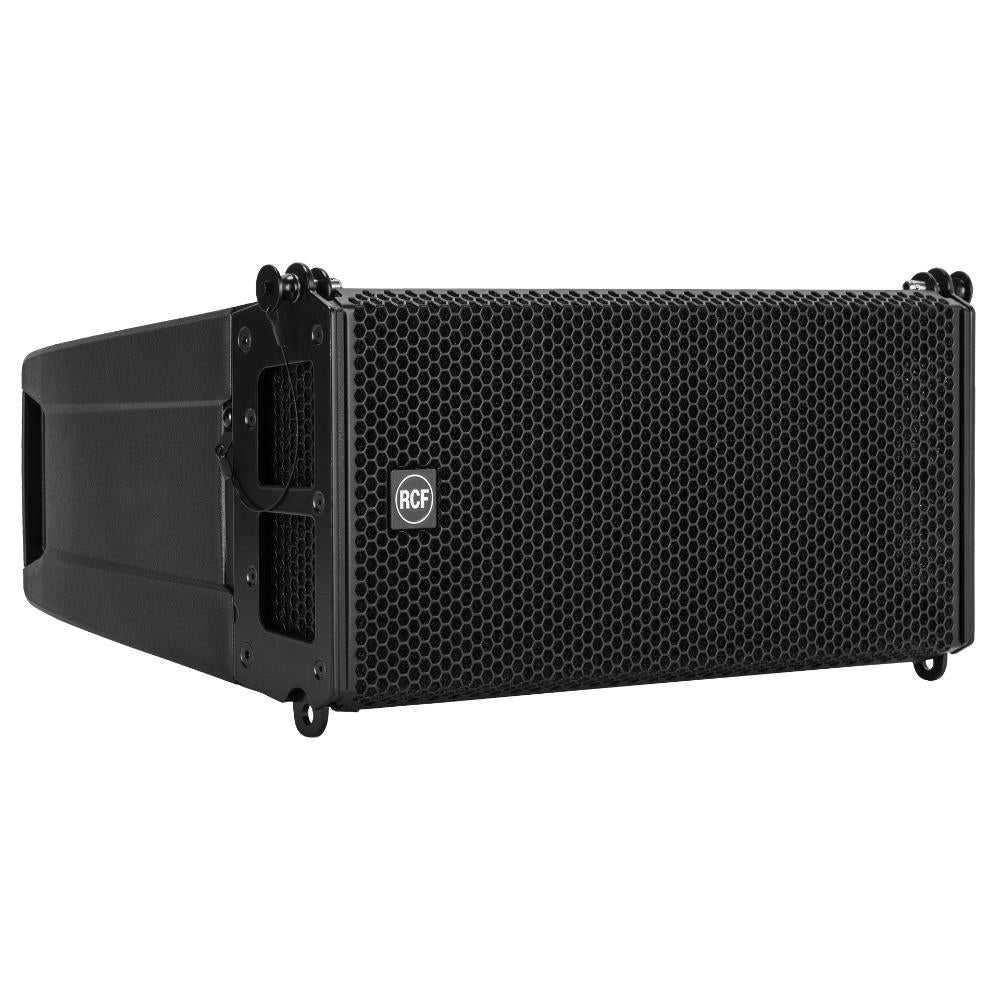

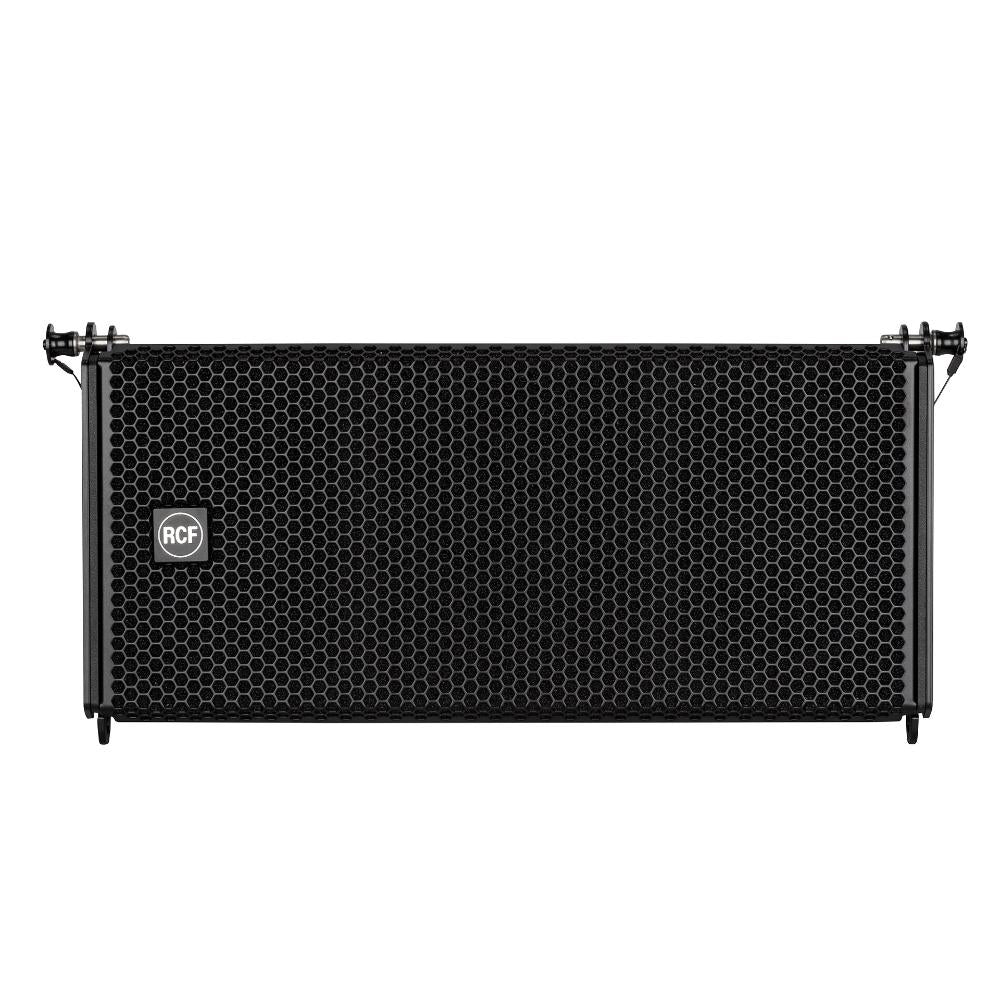

HDL6A 2x6" Active 2-Way Line-Array Module 700W Black:

The HDL6-A is the ideal choice when line array performance is needed and a fast and easy set-up a must. A 1400 W 2-channel class-D amplifier powers the system. A powerful DSP processes the sound including crossover, phase correction, limiting and protection. The system features state-of-the-art RCF transducers – two powerful 6.0” woofers for a solid bass reproduction plus a high powered 1.7” voice coil compression driver mounted on a precise 100° x 10° waveguide delivers vocal clarity with high definition and an incredible dynamic.

Features:

1400 W, two-way amplification
131 dB max SPL
1.7" voice coil neodymium compression driver
2 x high power neodymium 6.0" woofers
48 kHz, 32 bit floating point DSP processing
Symmetrical design
Extremely low weight
FiRPHASE processing

Specifications:

General
Frequency Response: 65 Hz ÷ 20000 Hz
Max SPL @ 1m: 131 dB
Horizontal coverage angle: 100°
Vertical coverage angle: 10°
Compression Driver: 1.0'' neo, 1.75'' v.c
Woofer: 2 x 6.0'' neo, 2.0'' v.c
Input signal: bal/unbal
Input connectors: XLR
Output connectors: XLR
Input sensitivity: +4 dBu
Crossover Frequencies: 900 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: HF correction
Total Power: 1400 W Peak, 700 W RMS
High frequencies: 400 W Peak, 200 W RMS
Low frequencies: 1000 W Peak, 500 W RMS
Cooling: Convection
Connections: Powercon IN/OUT
CE marking: Yes
Cabinet/Case Material: PP Composite

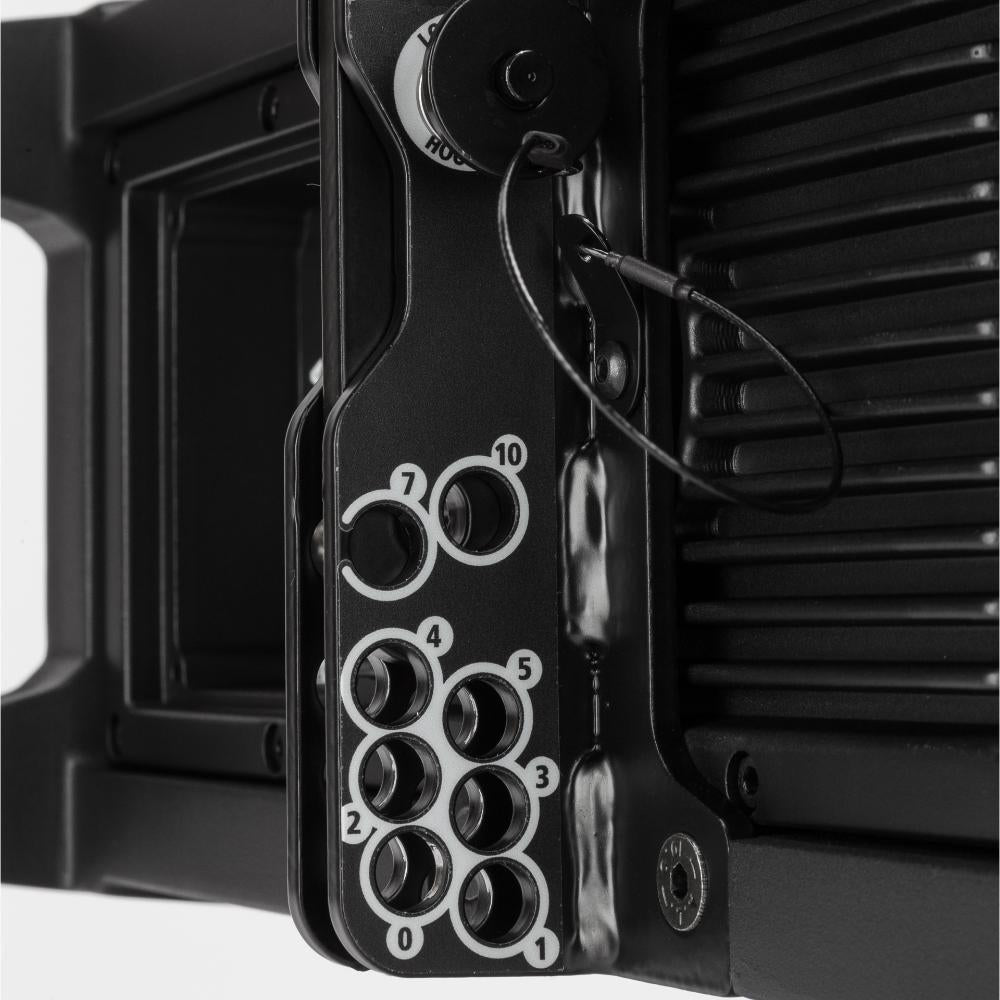

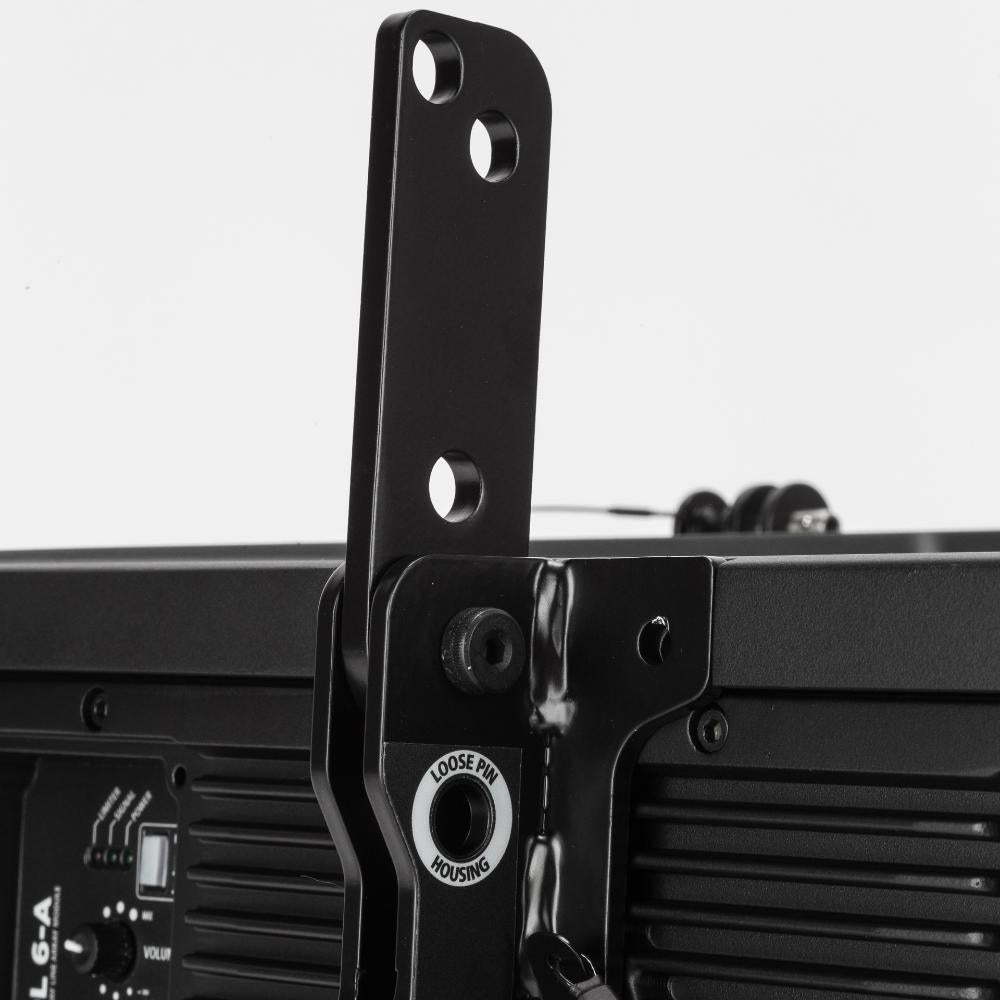

Hardware: Array fittings
Handles: 2 Back
Grille: Steel
Color: Black
Physical & Dimensions
Height: 237mm
Width: 470mm
Depth: 377mm
Weight: 11.6kg

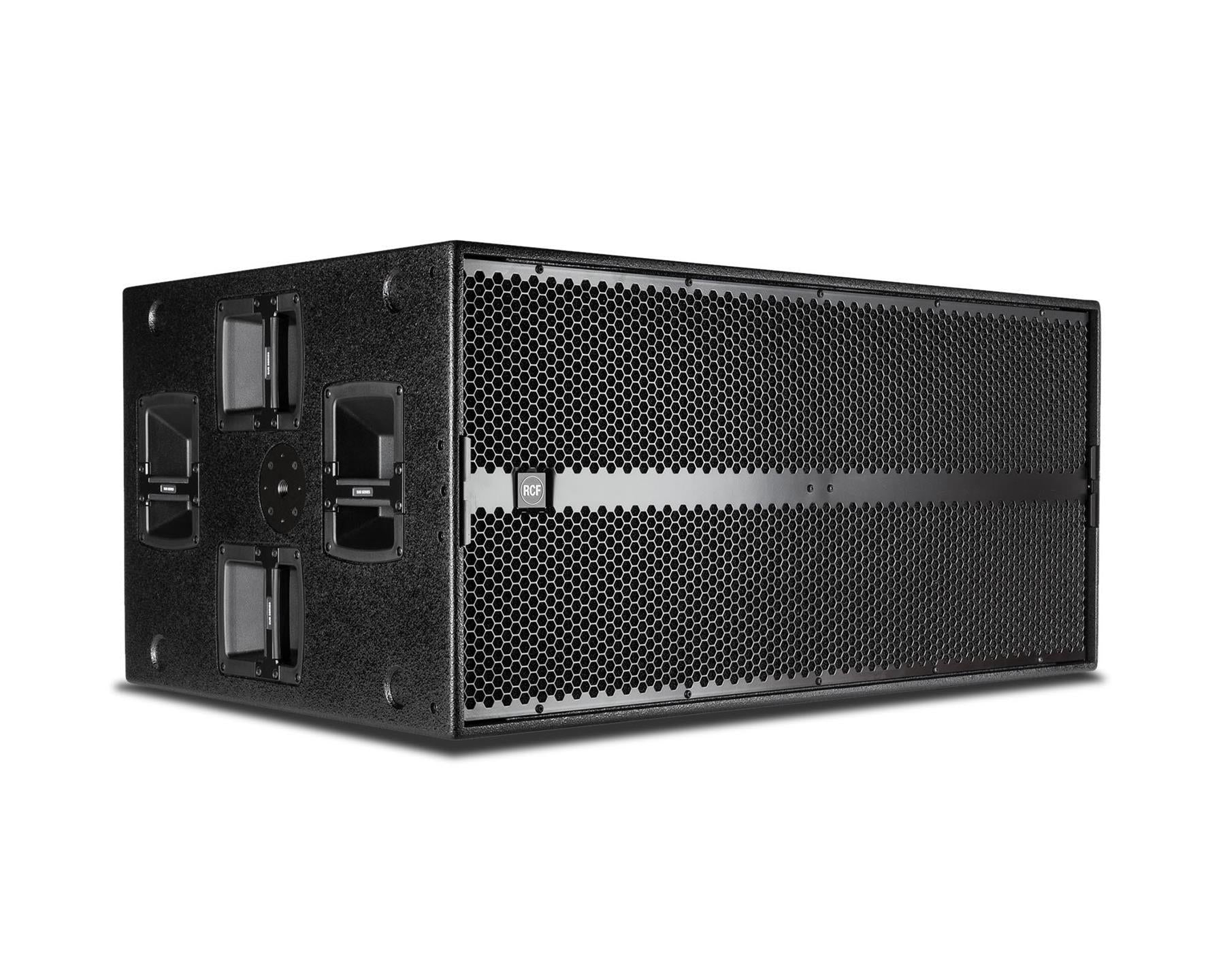

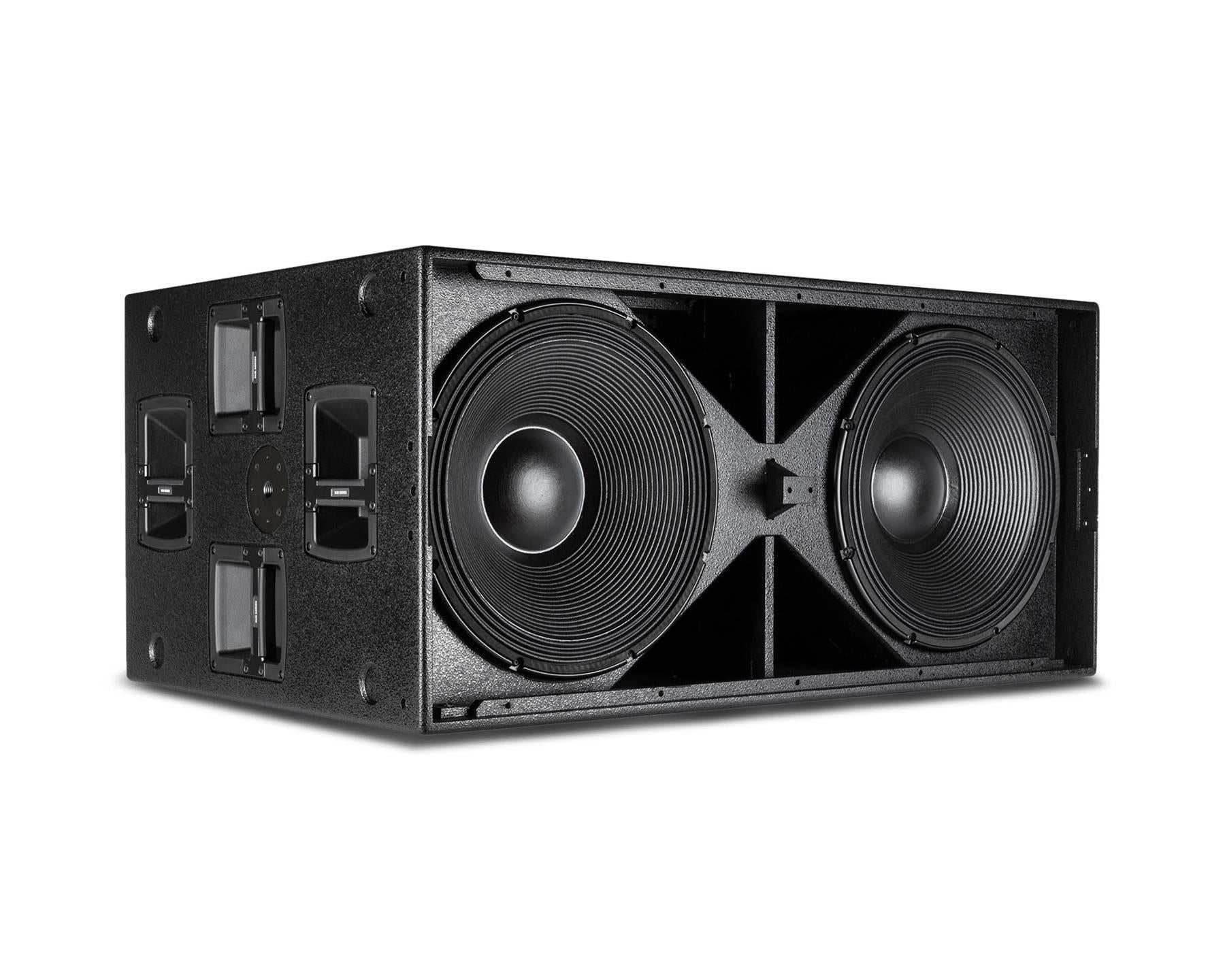

SUB9006AS 2x18" Active High Power Subwoofer 7200W Peak:

The SUB 9006-AS is one of the most powerful 2x18” subwoofers in the field of live sound. Featuring two high-power hyper-vented 18” neodymium woofers with 4.0” inside-outside voice coils, this cabinet delivers a serious amount of low frequencies. Powered by a 7200 W digital amplifier, the SUB-9006-AS can perform in the most demanding situations. The housing of the SUB-9006-AS matches the RCF D-Line HDL50-A and HDL10-A array systems, enabling to build stacked systems in a perfect combination.

RCF RDNet 3.0
The new RDNet release features extensive improvements. The audio system is now configurable in Groups of speakers or in the new Array clusters, the Air Compensation and the Cluster Size shaping are more precise and controllable, as well as the FiRPHASE gain. The subwoofer configuration is faster, even for complex EndFire set-ups.

Top End Electronics

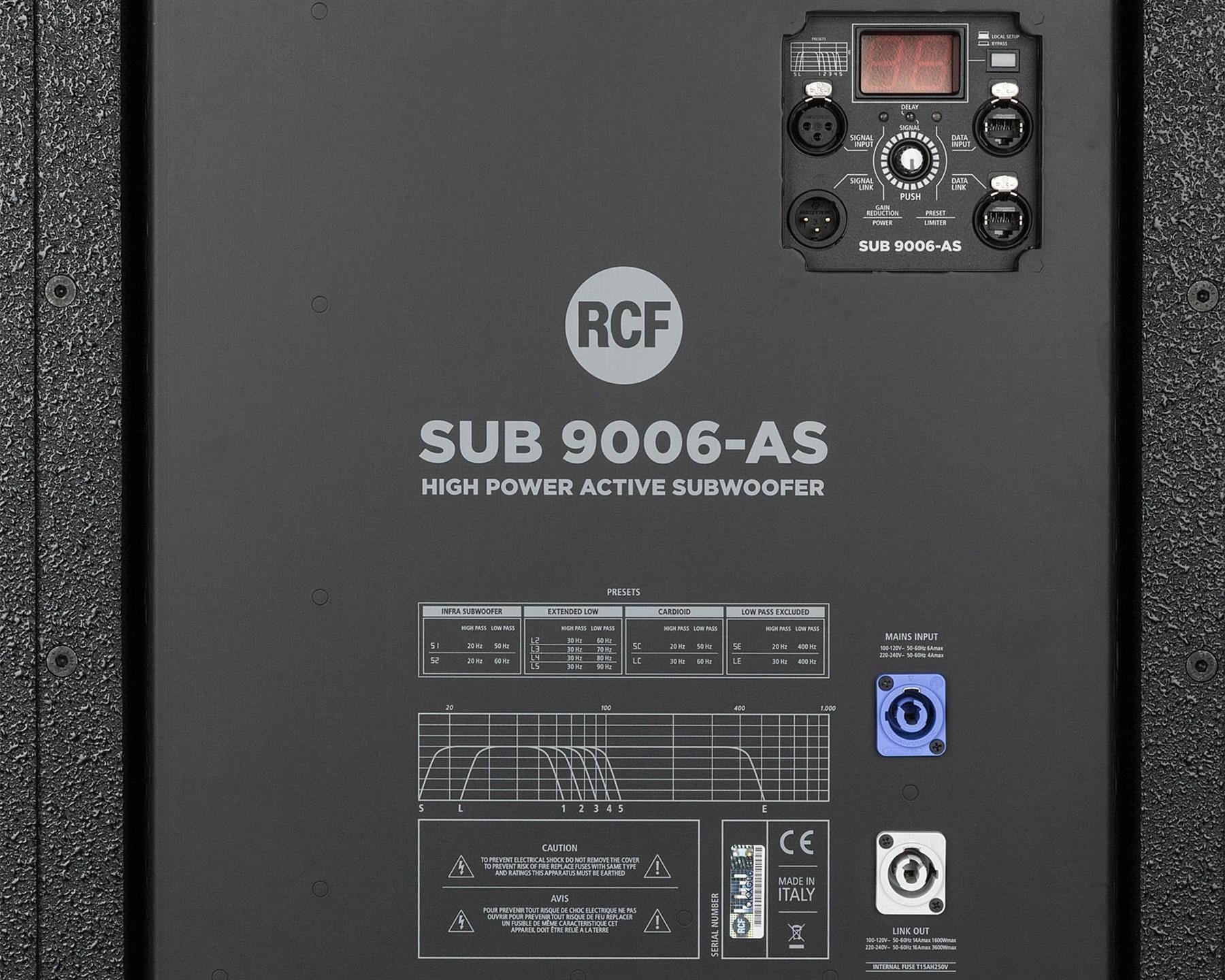

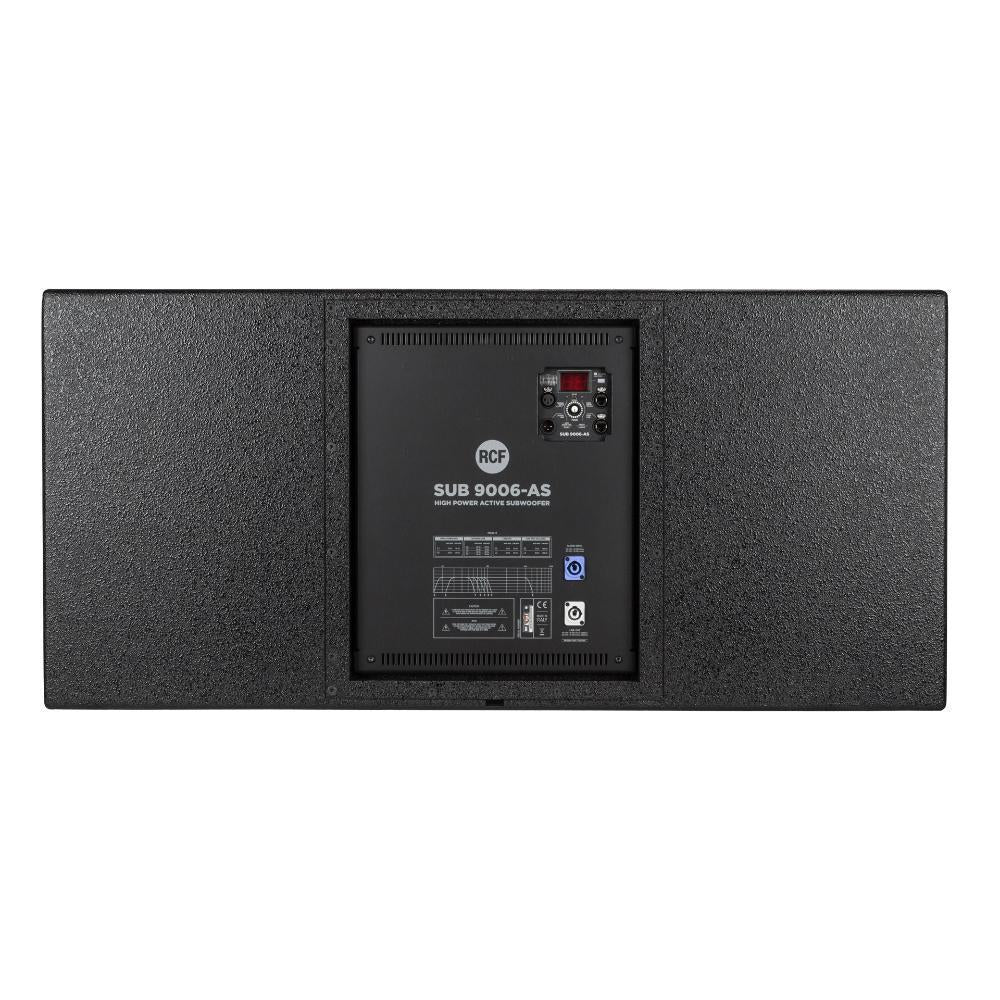

The amplifier integrates a low-noise 32-bit DSP circuit, controlled through the RCF proprietary RDNet network to easily handle the soft clipping limiters, RMS limits, polarity, amplitude, timing and equalisation. All the settings, monitoring and advanced features are available inside the RDNet Networked Management software. The available control panel on the back adjusts input sensitivity, Low Cut, Xover, volume, bypass, delay and presets selection. The regulated power supply guarantees full power from 100 V to 260 V. The amplifier houses on a unique Vibrostop floating aluminium panel for extra protection during transportation.

Hyper Ventilation System
RCF manufactures these components to deliver the cleanest, punchiest, and undistorted low frequencies reproduction. The cone is composed of 30% carbon fibre, 20% fibreglass and 50% cellulose pulp. This particular chemical composition has been carefully developed to improve the robustness and rigidness of the cone avoiding any deformation that would result in a loss of efficiency. The 4.0" inside/outside voice coil is wounded on a strong fibreglass former and guarantees a more efficient cooling. The former is internally and externally reinforced with Nomex that stiffen the overall structure for a better energy transfer between the voice coil and the body cone. In order to dissipate the heat generated by the powerful voice coil, RCF engineers have developed the unique Hyper Ventilation system with very low power compression. The cone is water resistant.

Cabinet

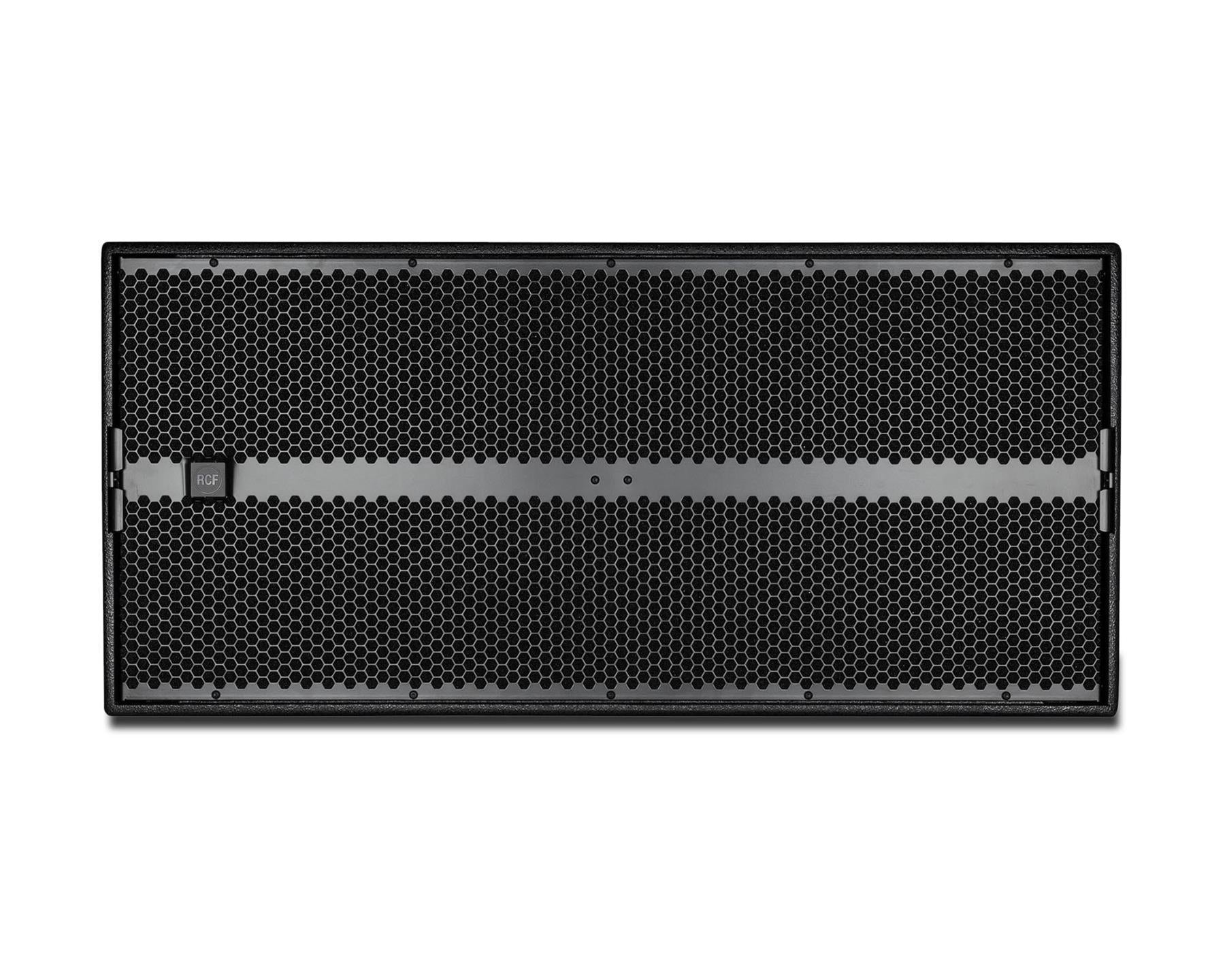

The heavy-duty powder coated front grille integrates a central reinforcement bar and a special transparent-to-sound foam backing on the inside helps to further protect the transducers from dust. The subs are stackable and light-weight, for easy set-up and tear down. The SUB 9007-AS and SUB 9006-AS are equipped with 8 aluminium handles (4 per side) with ergonomic rubber handgrip. The transportation is fast with the detachable Kart kit: a dolly caster-board with rugged tour grade casters and rotating cam mechanism

Features:

7200-Watt Peak power - 3600 Watt RMS
142 dB max SPL
30 Hz - 400 Hz frequency response
2 x 18" Woofer
DSP controlled Input section with selectable presets
RDNet remote control
Delay control
Baltic birch cabinet

Specifications:

Acoustical Specifications Frequency Response: 30 Hz ÷ 400 Hz
Max SPL @ 1m: 142 dB
Transducers Woofer: 2 x 18'' neo, 4.0'' v.c
Input/OutputInput signal: bal/unbal
Input connectors: XLR, RDNet Ethercon
Output connectors: XLR, RDNet Ethercon
Input sensitivity: +4 dBu
Processor Section Hi-Pass Frequencies: 30Hz, 40Hz
Low-Pass Frequencies: Variable from 50Hz to 400Hz
Protections: Thermal, RMS
Limiter: Fast Limiter
Controls: Gain, EQ, Preset, Phase switch, Output
Delay Settings
RDNet: Yes
Power SectionTotal Power: 7200 W Peak, 3600 W RMS
Low frequencies: 7200 W Peak, 3600 W RMS
Cooling: Convection/Forced
Connections: Powercon IN/OUT
Standard Compliance CE Marking: Yes
CabinetCabinet/Case Material: Baltic birch plywood
Hardware: 2 x M20
Handles: 8 side
Grille: Steel
Colour: Black
Physical & Dimensions
Height: 558 mm / 21.97 inches
Width: 1188 mm / 46.77 inches
Depth: 785 mm / 30.91 inches
Weight: 86 kg / 189.6 lbs
