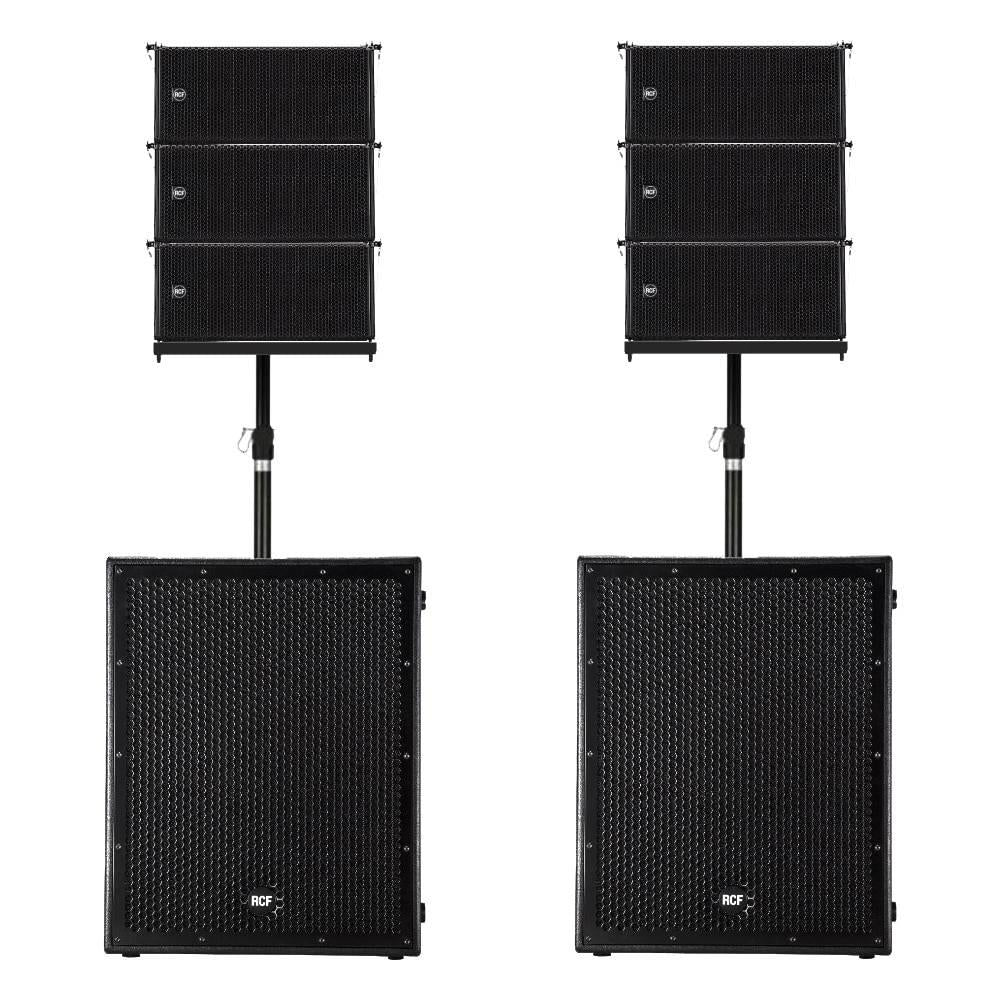

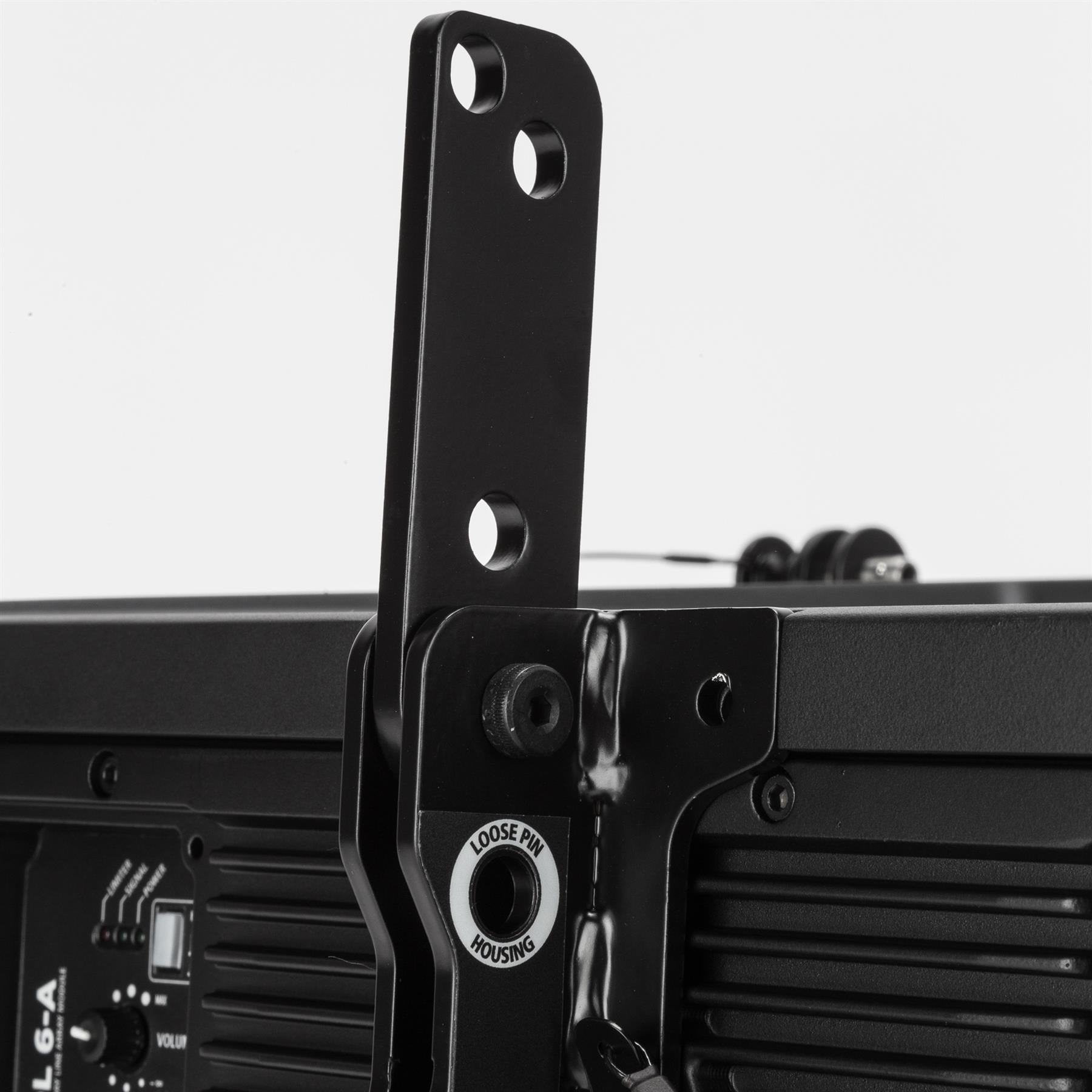

6x RCF HDL-6A Line Array Module with 2x Speaker Poles/ Mounting Kit and SUB-8004-as Active Subwoofer

Description:

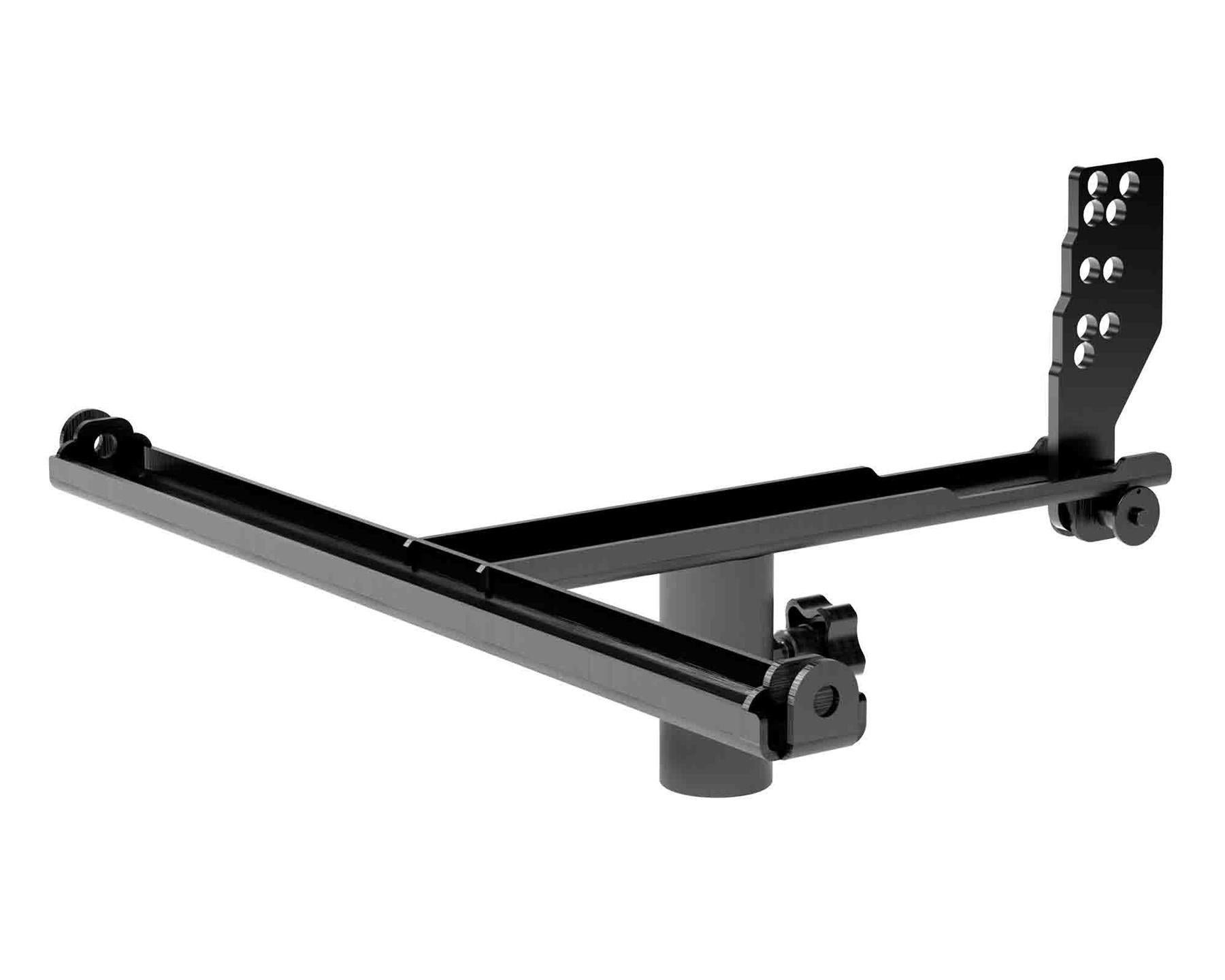

This bundle includes 6x HDL-6A line array modules with RCF SUB-8004 AS active subwoofer and 2x speakers poles/ mounting kit

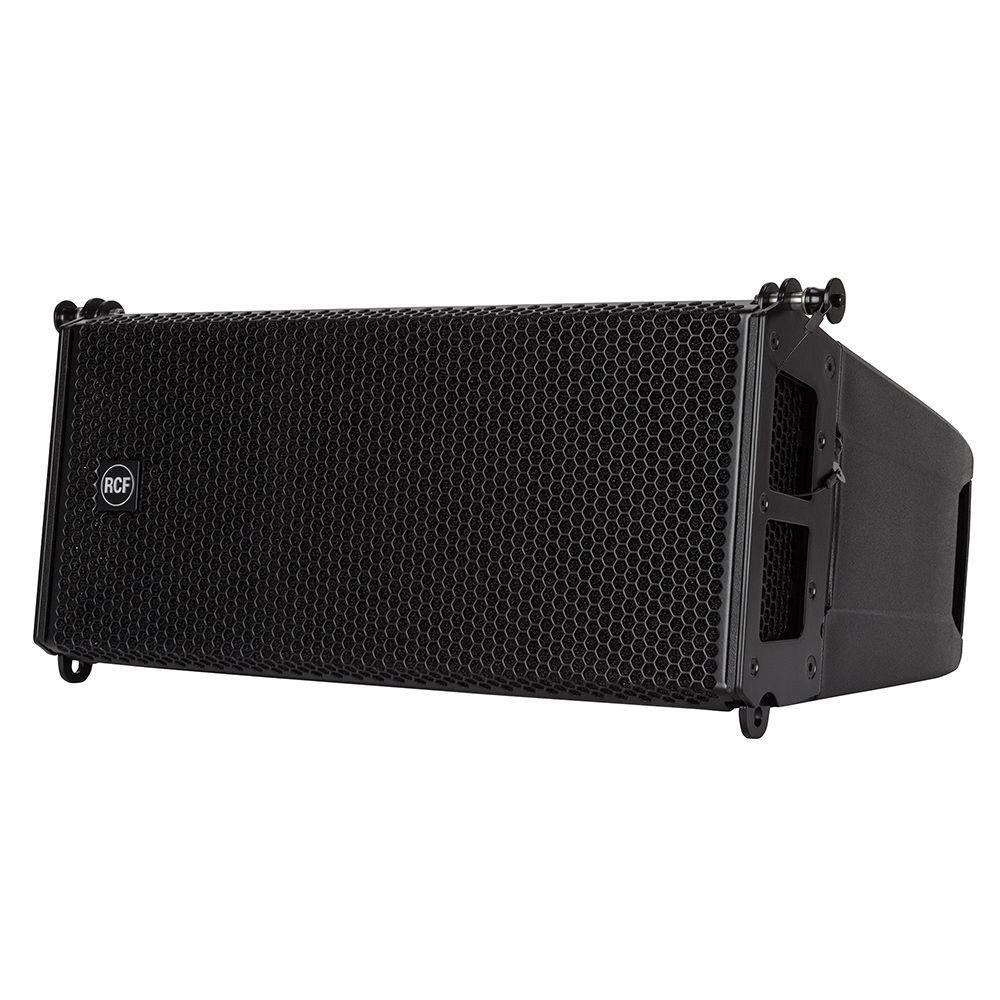

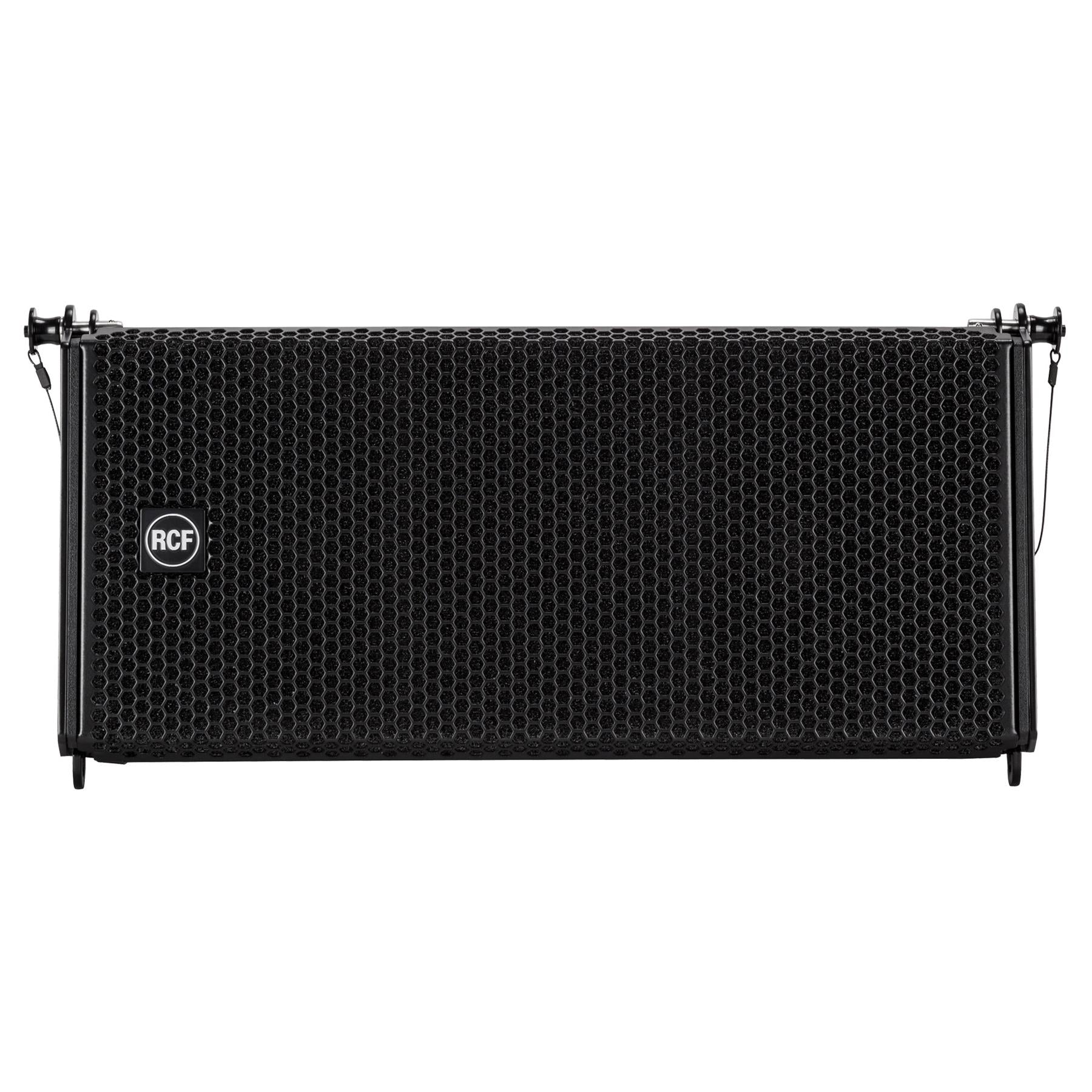

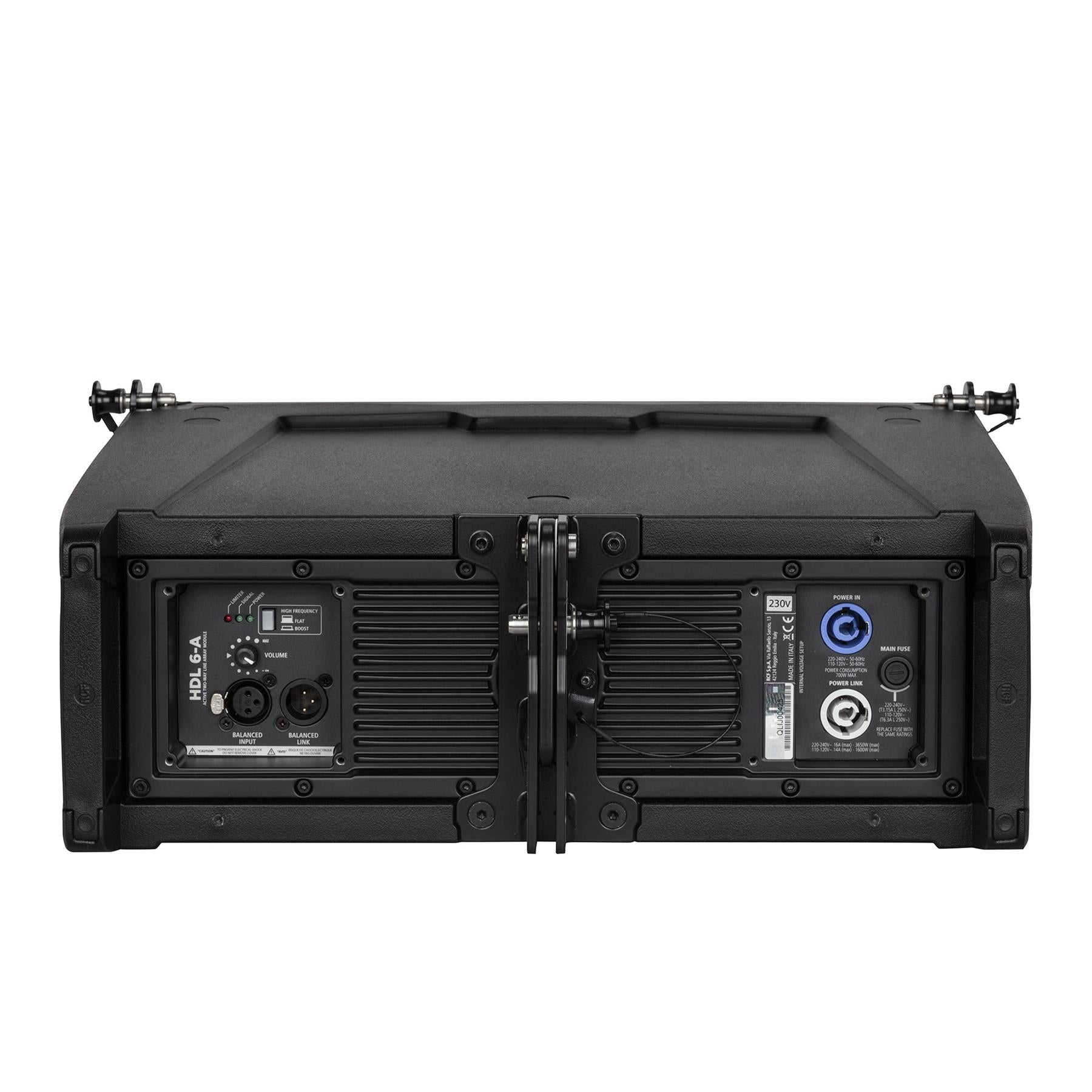

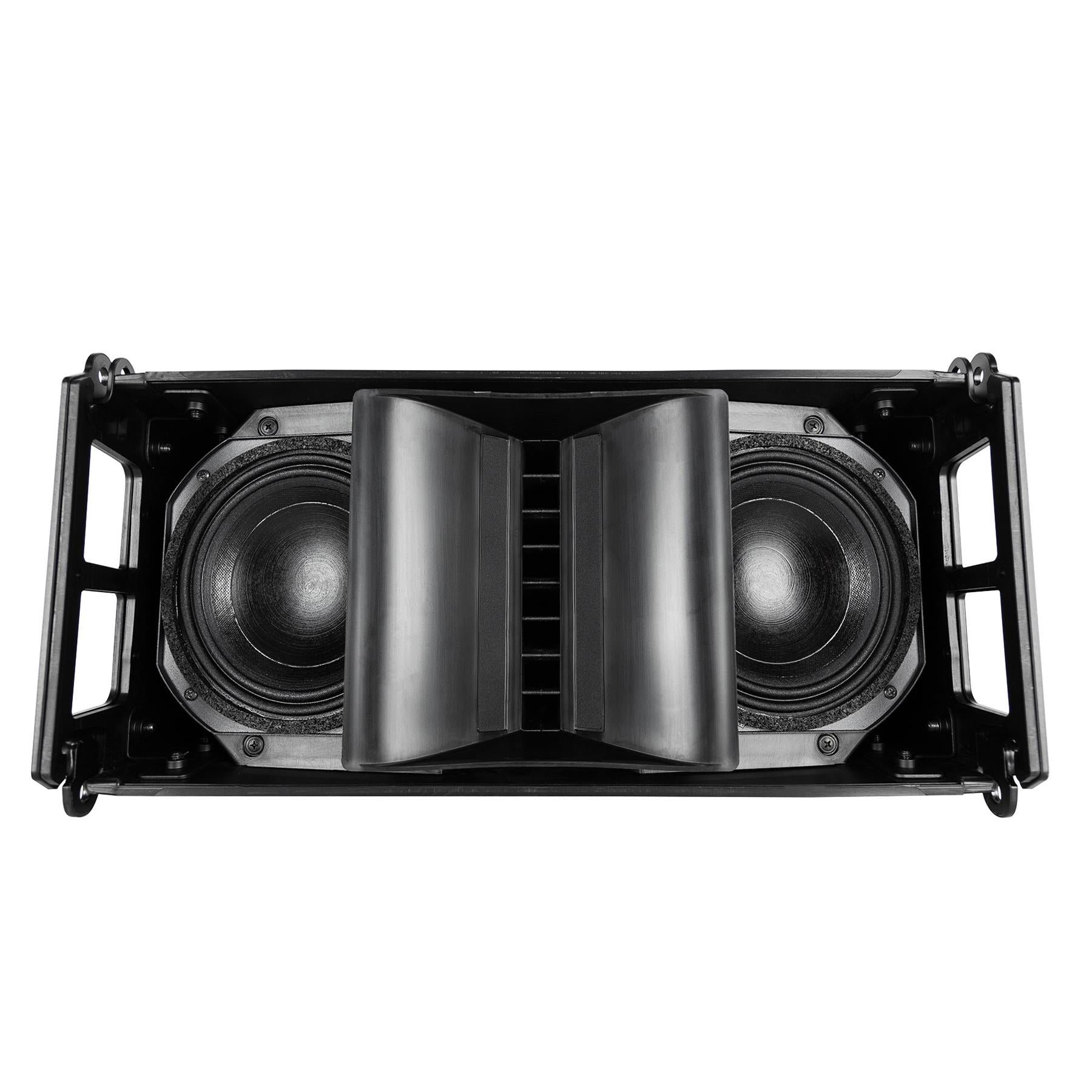

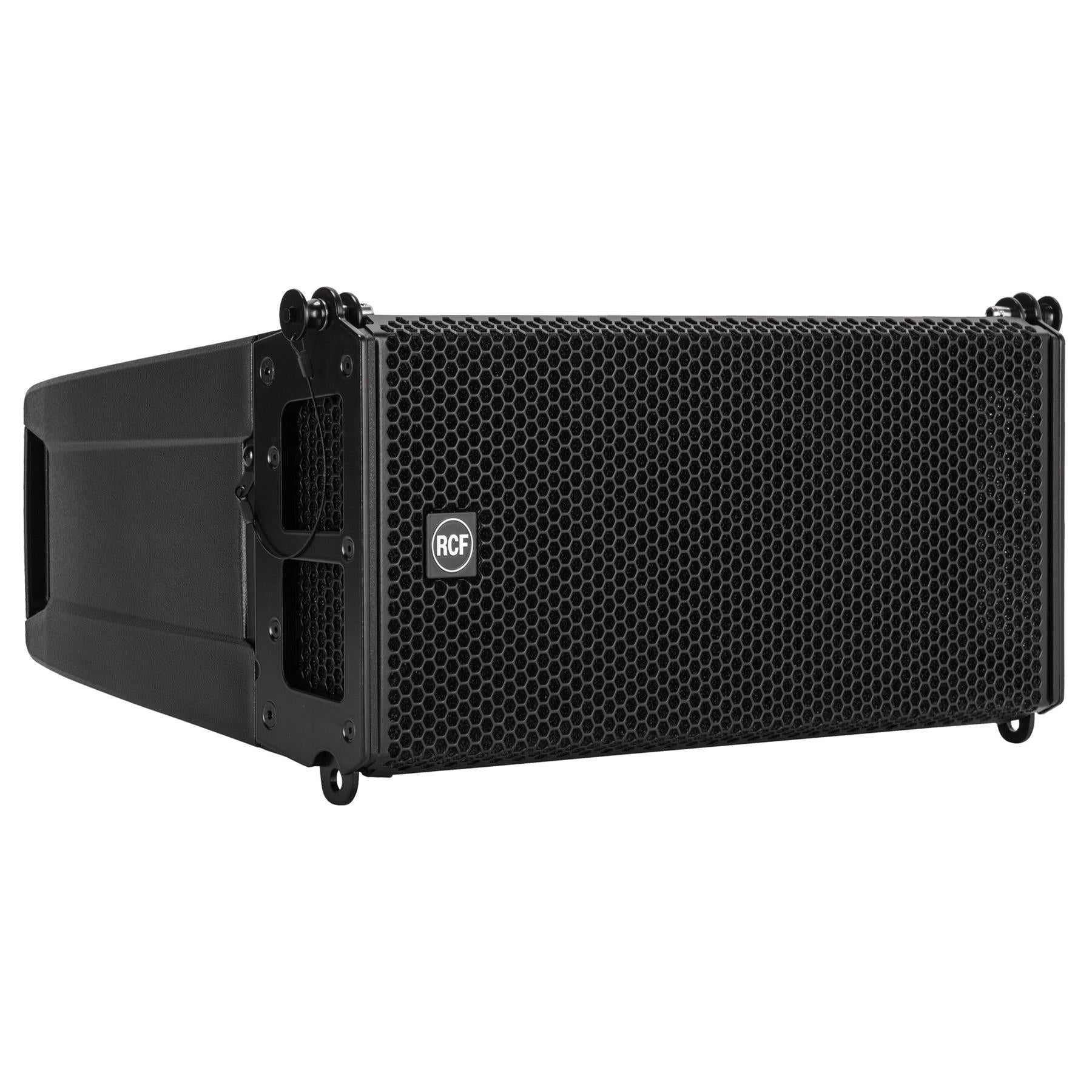

HDL-6A Line Array:

The HDL6-A is the ideal choice when line array performance is needed and a fast and easy set-up a must. A 1400 W 2-channel class-D amplifier powers the system. A powerful DSP processes the sound including crossover, phase correction, limiting and protection. The system features state-of-the-art RCF transducers – two powerful 6.0” woofers for a solid bass reproduction plus a high powered 1.7” voice coil compression driver mounted on a precise 100° x 10° waveguide delivers vocal clarity with high definition and an incredible dynamic. The HDL 12-AS is the ideal flyable bass complement for the HDL 6-A array system.

1400 W, two-way amplification
131 dB max SPL
1.7" voice coil neodymium compression driver
2 x high power neodymium 6.0"woofers
48 kHz, 32 bit floating point DSP processing
Symmetrical design
Extremely low weight
FiRPHASE processing

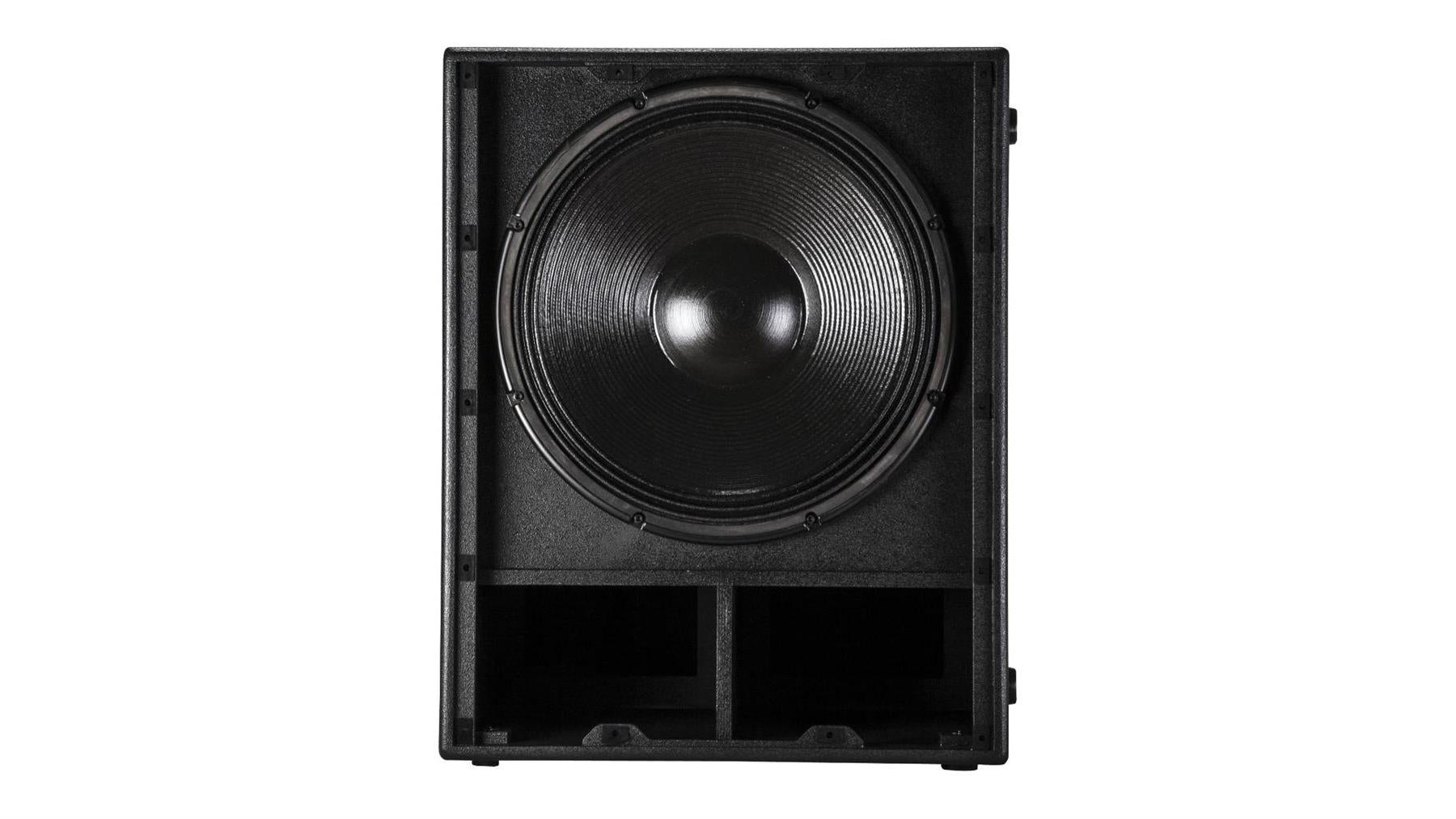

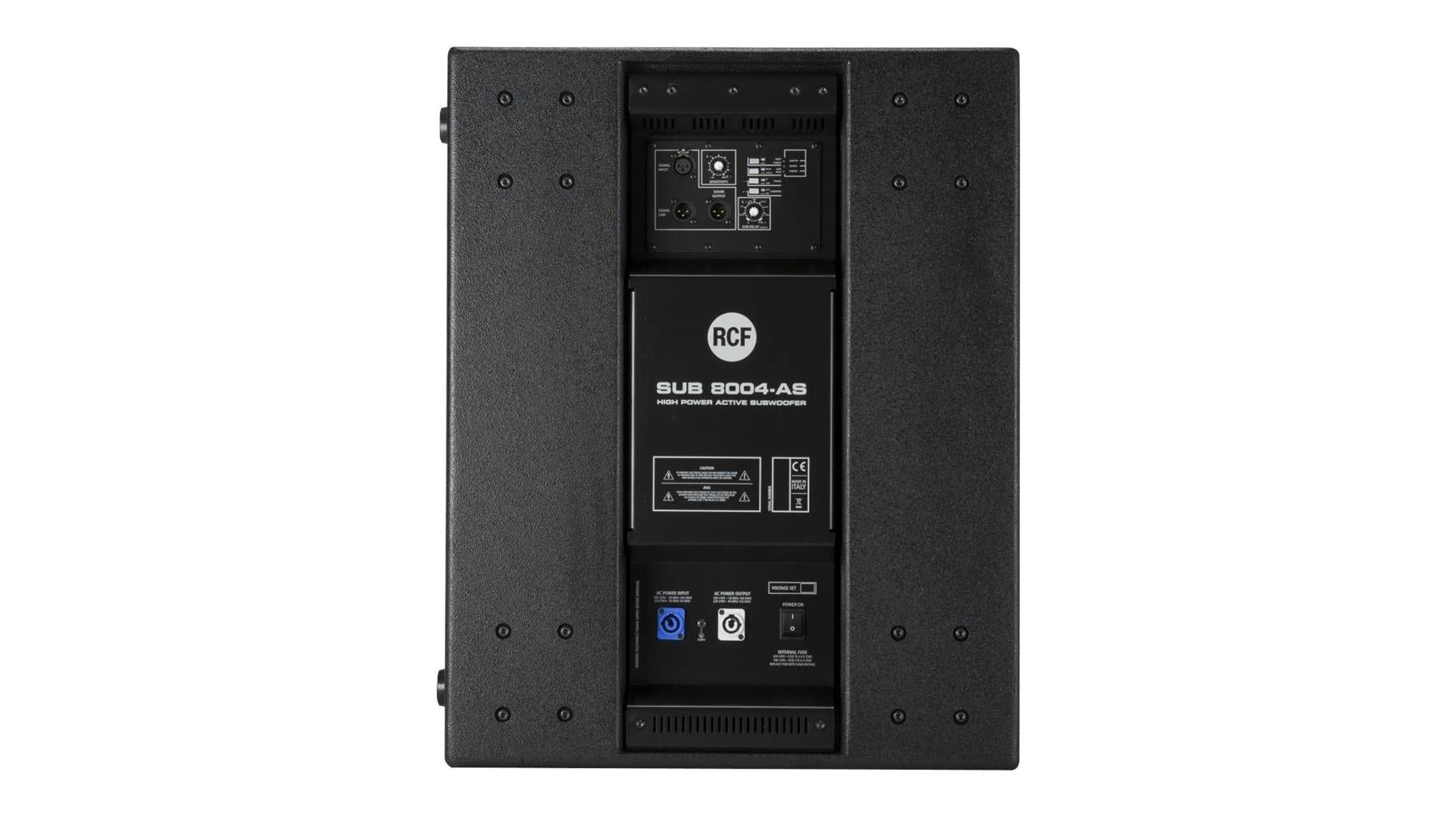

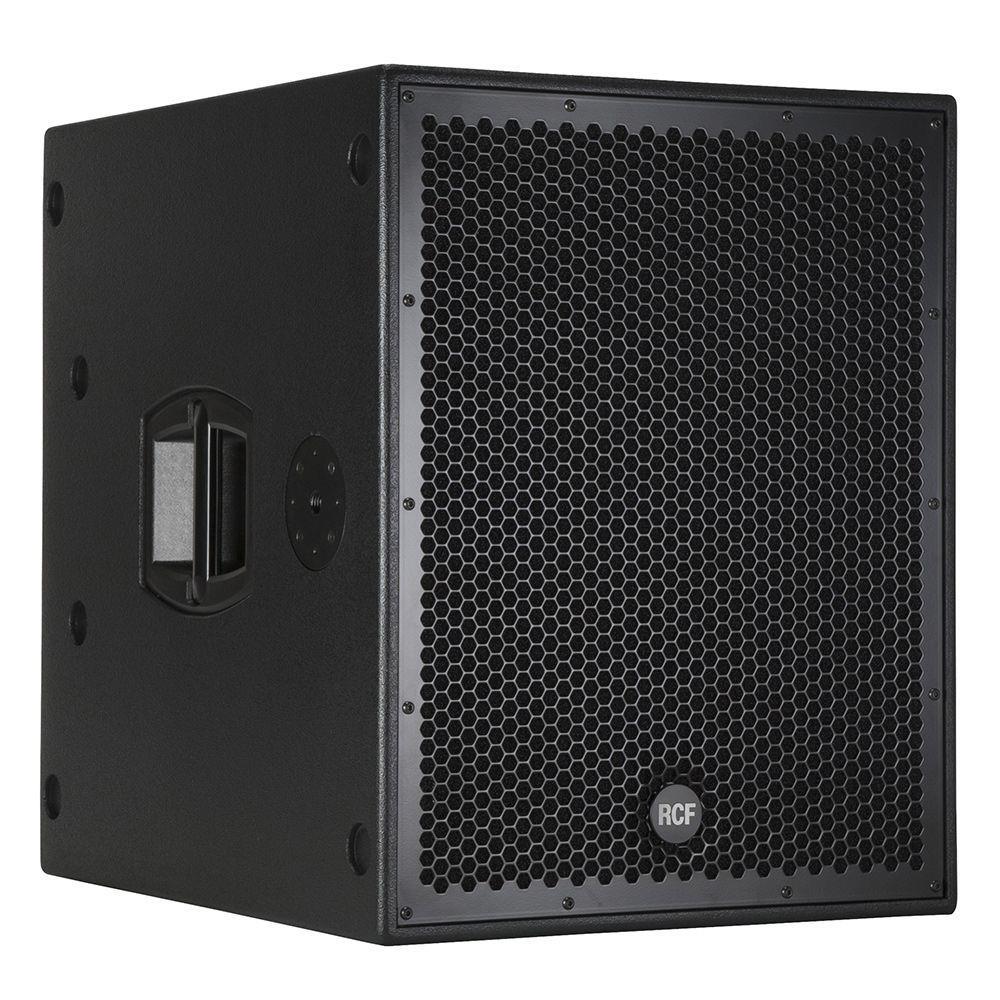

RCF SUB-8004 AS Active Subwoofer:

The SUB 8004-AS is one of the most powerful 18” subwoofers in pro-sound category. Featuring a high power, hypervented 18” woofer, with 4” inside/outside voice coils, this cabinet is designed to deliver a serious amount of low frequency. Powered by a 1250W digital amplifier module, the SUB 8004-AS can perform in the most demanding situations. The input board includes volume control, deep/punch switch, high pass switch, phase switch, cardioid, time delay.

2500 Watt Peak, 1250 Watt RMS
136 dB max SPL
30 Hz - 120 Hz frequency response
18" Woofer, 4.0" voice coil vented woofer
DSP controlled Input section with selectable presets
Delay control
Baltic birch tour grade cabinet
Compatible with NXL23-A (stacking)
Compatible with NXL24-A (stacking)
Multiple configurations with HDL 10-A and HDL 20-A

Specifications:

Acoustical specifications
FREQUENCY RESPONSE: 30 Hz ÷ 120 Hz
Transducers
WOOFER: 18'', 4.0'' v.c
Input/Output section
INPUT SIGNAL: bal/unbal

INPUT CONNECTORS: XLR

OUTPUT CONNECTORS: XLR

INPUT SENSITIVITY: -2 dBu/+4 dBu
Processor section
HI-PASS FREQUENCIES: 120 Hz

LOW-PASS FREQUENCIES: 90 Hz

PROTECTIONS: Thermal, RMS

LIMITER: Fast Limiter

CONTROLS: Xover, Phase switch, Deep/Punch, Outuput Delay Settings, Cardioid
Power section
TOTAL POWER: 2500 W Peak, 1250 W RMS

LOW FREQUENCIES: 2500 W Peak, 1250 W RMS

COOLING: Convection

CONNECTIONS: PowerCon IN/OUT
Standard compliance
CE MARKING: Yes
Physical specifications
COLOUR: Black

Dimensions 700 x 558 x 700mm

Weight 56kg
