Q-Venue Sound QMEDIAMIX52 5ch Media Mixer Rackmount Bluetooth Install

Description

The Venue Sound QMEDIAMIX52 is a compact yet powerful audio mixing and management system designed for professional applications, featuring versatile inputs, precise control options, and robust connectivity in a durable, rack-mountable design.

The Q-Audio QMEDIAMIX52 media installation mixer features 3 stereo inputs, 2 microphone inputs and multimedia player with Bluretooth receiver, FM tuner, and USB input.

Two stereo inputs are equipped with signal-present LEDs, rear-panel gain controls, and front-panel level control. A front-panel 3.5mm stereo jack input allows for easy connections for tablets and phones. There are two microphone inputs with rear-side 1/4 jack connectors. The mixer is tailored for voice with a 2-band EQ and on air switches for the microphone inputs. An adjustable auto talk-over function automatically reduces music levels when the microphone is used.

The internal media player/tuner supports USB thumb drives up to 16GB/2000 songs, offering file/folder access, MP3 tag readout on a large LCD display, regular and random play sequences, elapsed/remain time modes, an FM tuner mode with RDS station display. The media player has a useful built in jingle player capable of playing up to three jingles, these can be scheduled or played via buttons on the front panel, this is perfect for announcements and advertising.

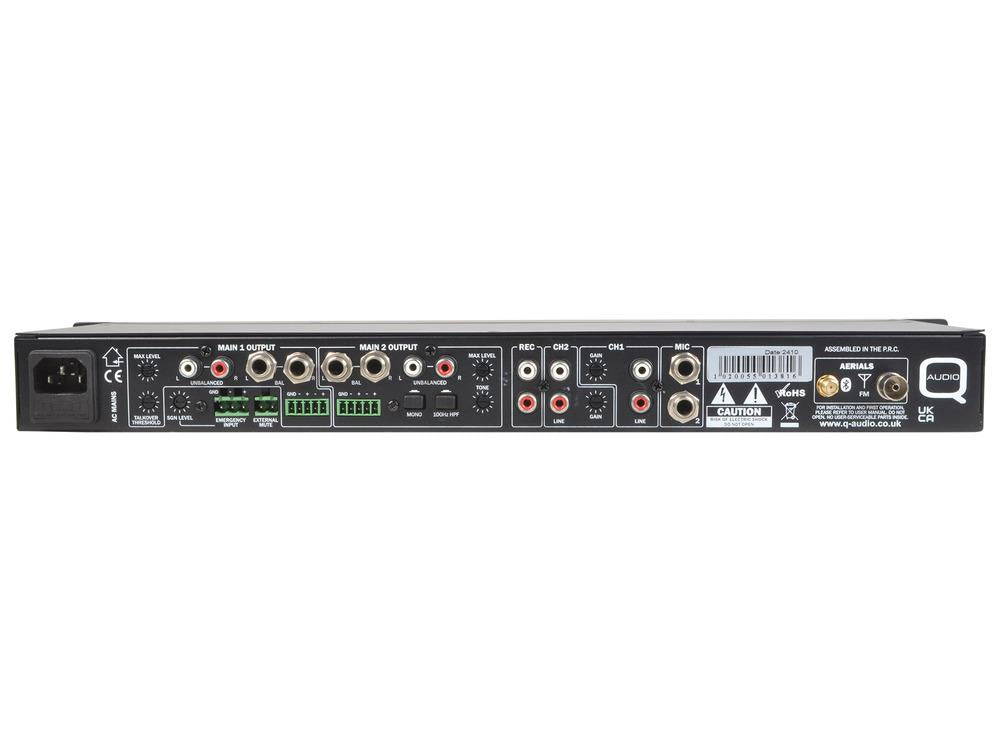

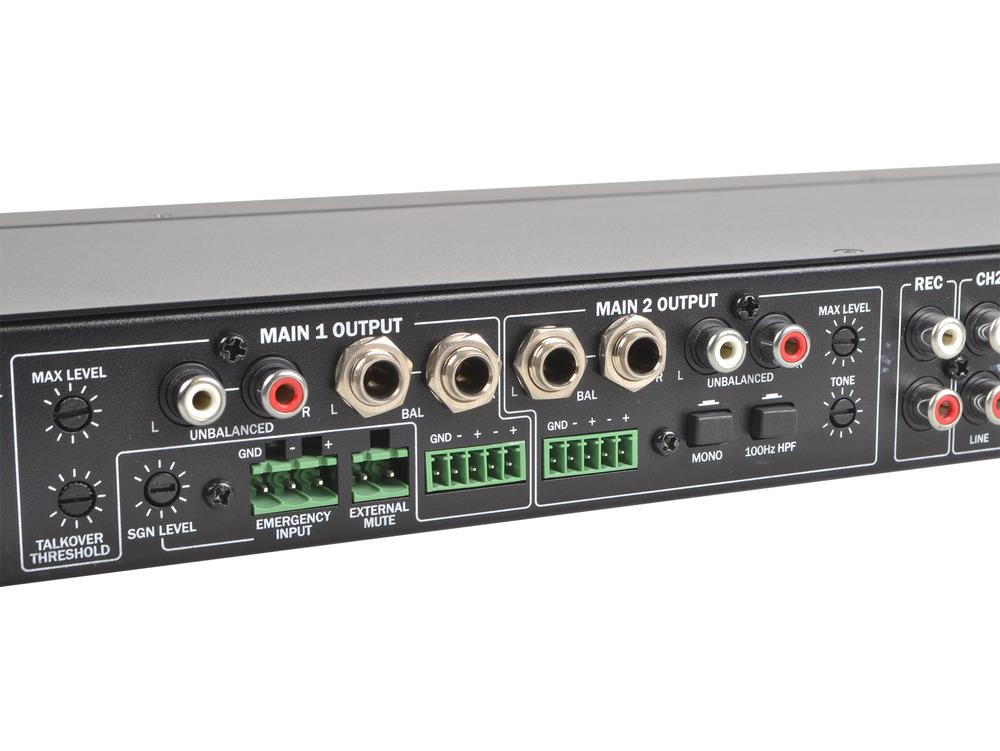

The mixer has two stereo main outputs with independent level controls. Main output 1 features a 2-band front-side EQ and a 10-LED level meter, while main output 2 offers rear-side tone control, a mono switch, and a 100Hz high-pass filter. Both outputs have balanced TRS and Phoenix connectors, as well as unbalanced RCA connectors.

An emergency input overrides the master output to play the emergency signal, and an output mute contact allows for external muting.

The headphone section includes volume control and a front-side 6.3mm stereo jack

A feature packed mixer for installations in bars, restaurants, schools and more.

5 Channel Mixer with Media Player.
Two stereo inputs with signal-present LEDs, rear gain controls, and front-level adjustments.
Convenient front-panel 3.5mm stereo TRS input.

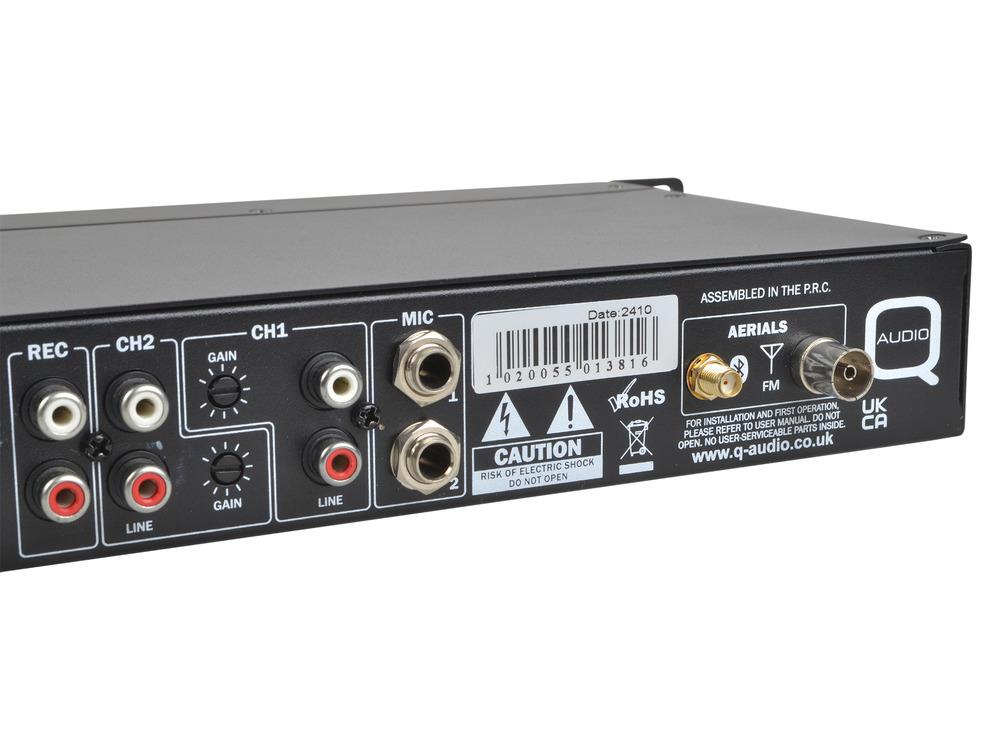

Two microphone inputs with rear 1/4" TRS connectors.

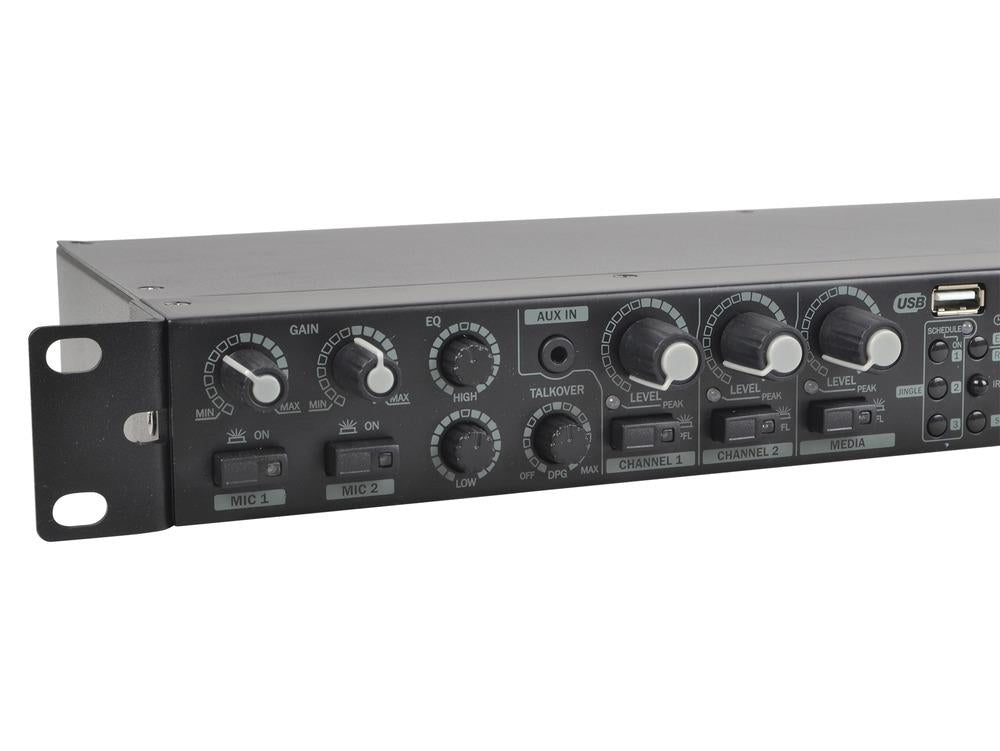

Voice-specific 2-band EQ and "on air" switches for mic inputs.
Adjustable auto talk-over for seamless music reduction during microphone use.
FM tuner, USB thumb drives up to 16GB (2000 songs), jingle player with scheduled play mode.
Jingle Player for Announcements and advertising.
Two stereo main outputs with independent level controls.
2-band EQ for main output 1.
Rear gain controls for each output.
Balanced ¼" jack and Phoenix output connectors, plus unbalanced RCA connectors.
Emergency input for automatic shutdown and emergency signal playback.
Output mute contact for external muting control.
Headphone section with volume control and front-side 6.3mm stereo jack.
Rear Tone control for main output 2, with mono switch and 100Hz high-pass filter.
RCA record output.
Low noise Hi-Fi power supply for clean, reliable operation.

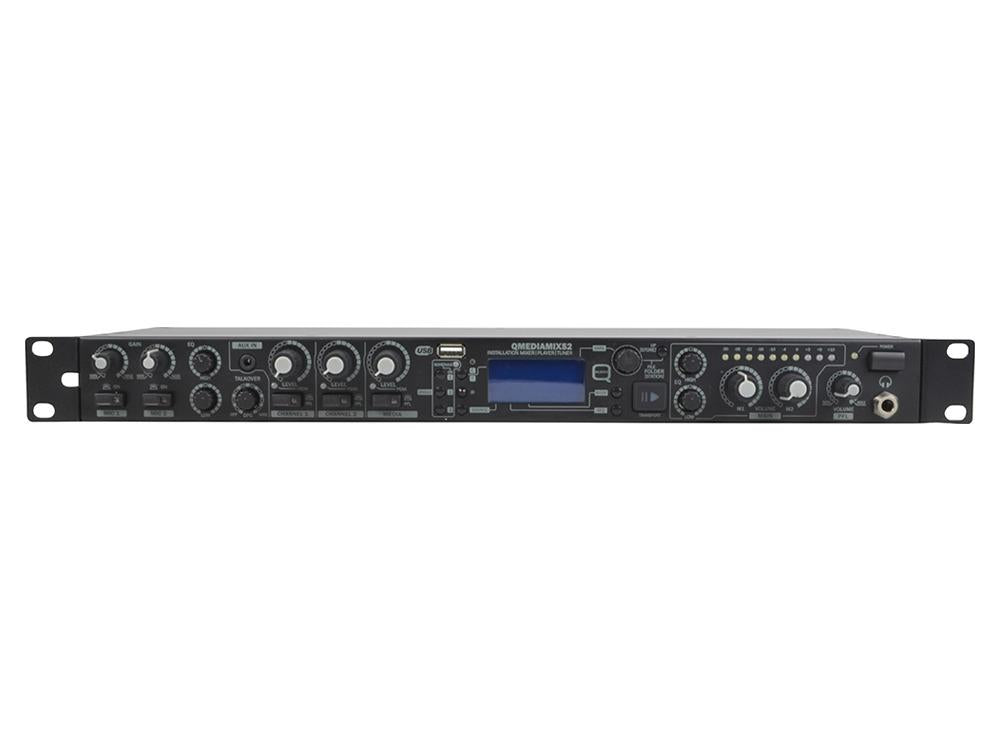

Sturdy 1u 19" metal case with detachable rack ears.
