Palmer AoC Loom TRSm Audio over Cat Loom from etherCON to 4 x 6.3 mm TRS jack

Description

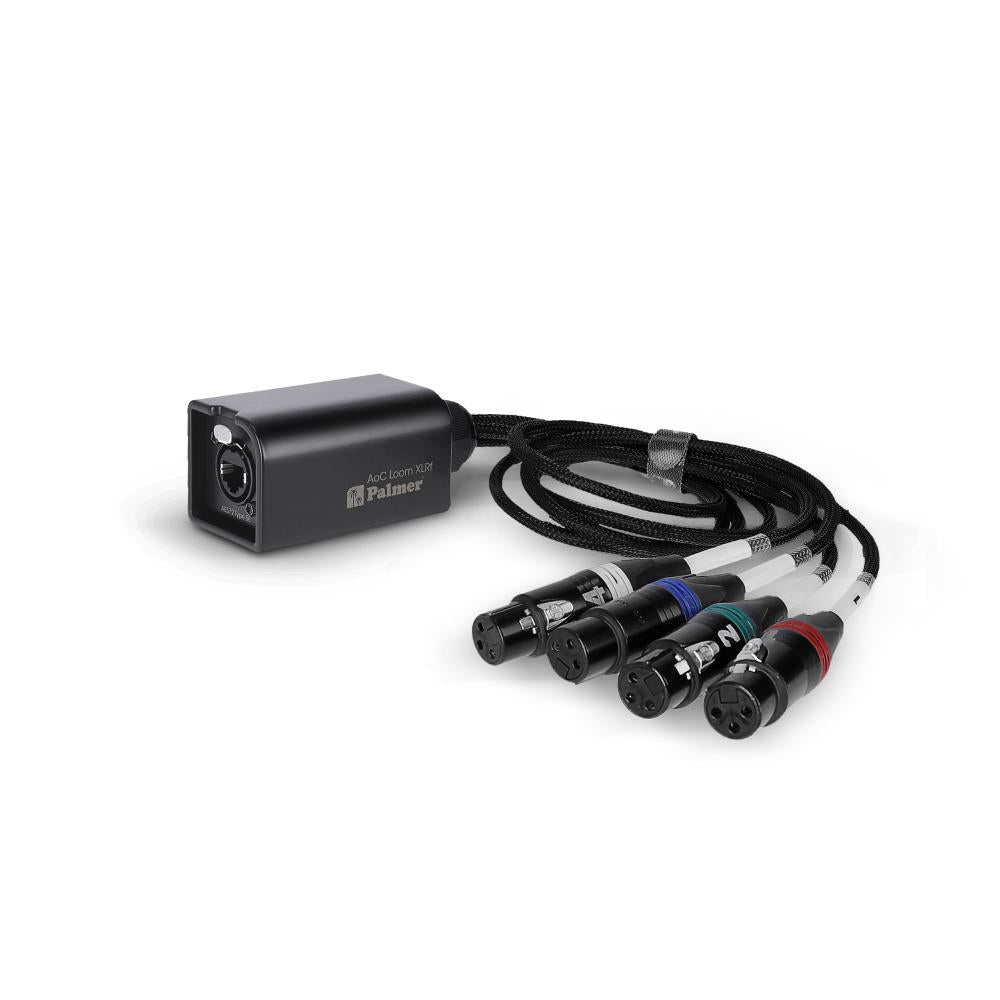

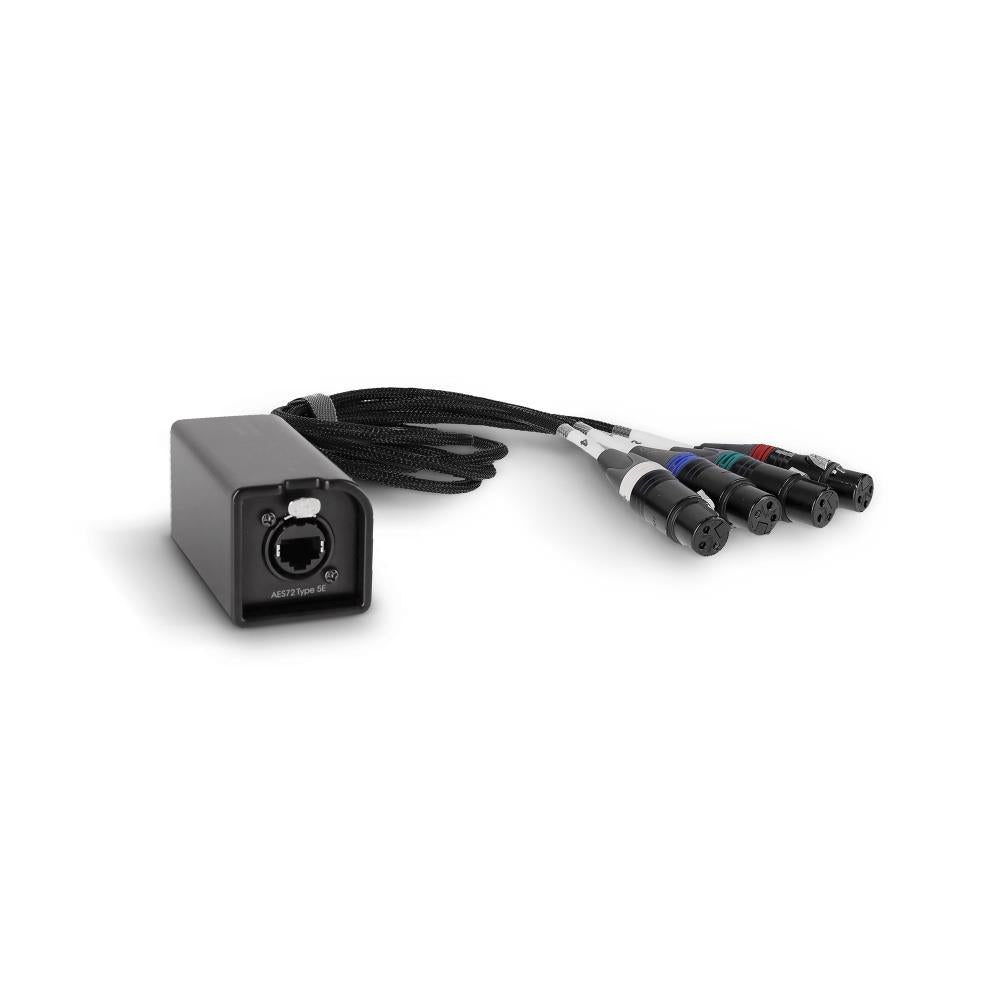

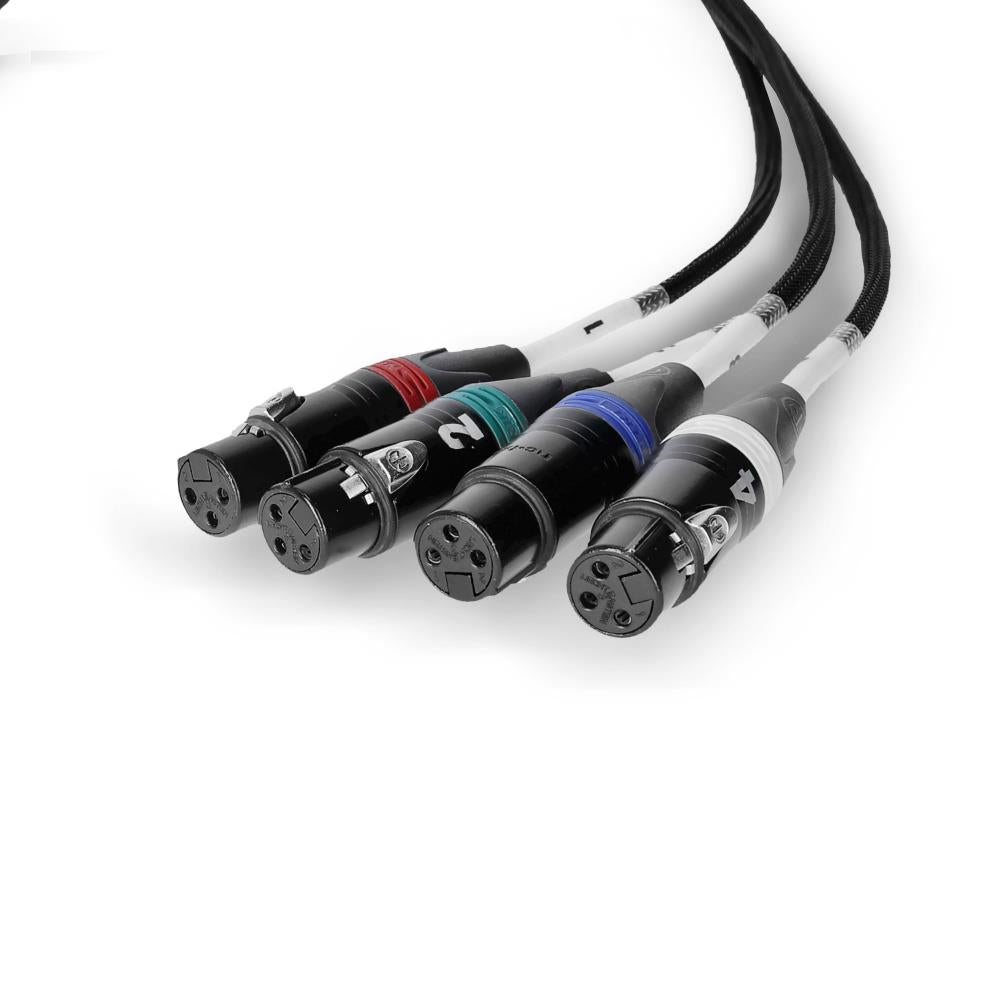

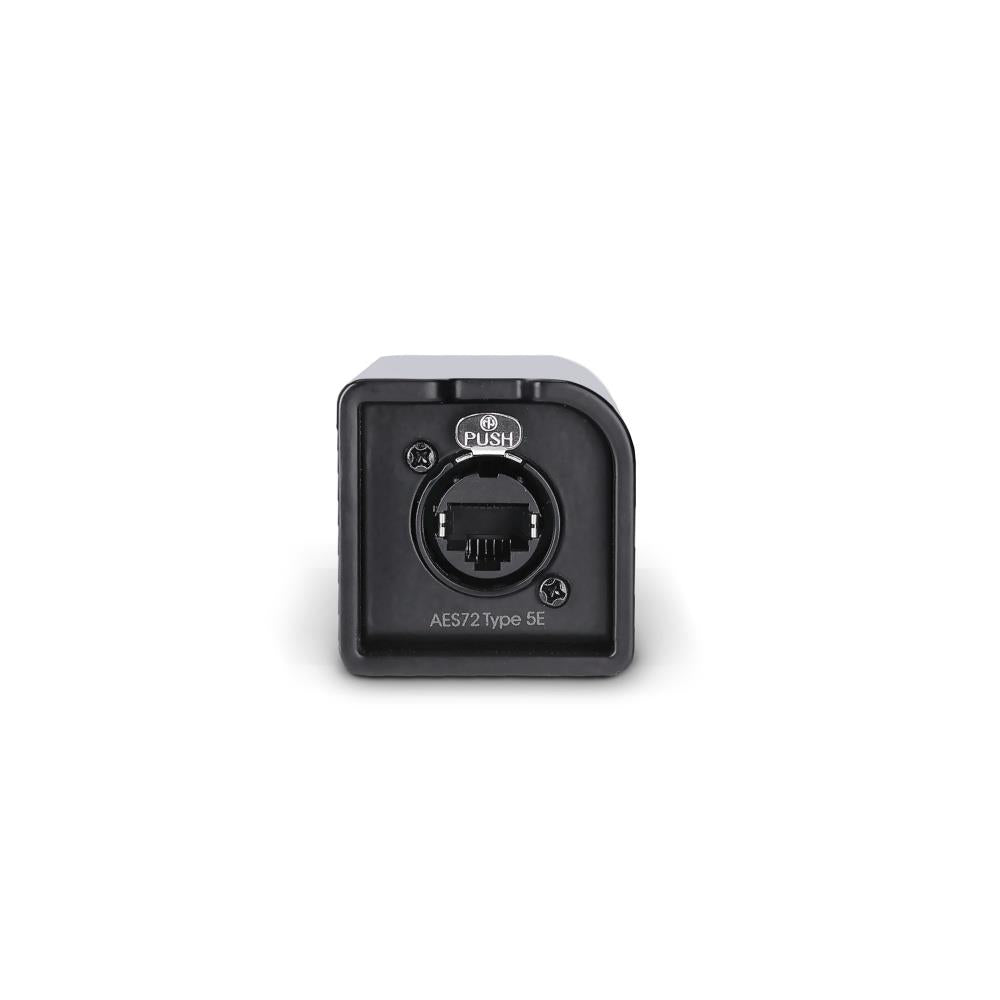

The P AOC L XLR F is a multicore adapter cable that facilitates the stable transmission of 4 separate analog and balanced audio signals or 8 digital AES3 signals through a network cable (not included). The female XLR plugs are numbered and color-coded for easy identification. The Ethercon connection is safeguarded against unlocking to prevent accidental cable disconnection.

In addition to audio signals, the P AOC L XLR F enables the transmission of DMX, or MIDI control signals, along with 48-volt phantom power, via a single, standard Ethernet cable. This versatility allows it to be used flexibly across various applications, be it for live concerts, studio sessions, press conferences, or other productions.

Featuring high-quality Neutrik components, a solid aluminum-steel housing, and robust mesh cables with a 50 cm splice, the P AOC L XLR F guarantees reliable signal transmission and durability in professional environments. Its simple, high-quality design also enhances the visual appeal of any setup.

All these factors make the P AOC L XLR F a reliable and durable tool that provides an affordable and flexible alternative to conventional 4-channel multicores without compromising audio quality - as you have always come to expect from Palmer.

Number of inputs - 4
Input type - Balanced
Input Connector - RJ45
Number of outputs - 4
Output type - Balanced
Output connector - XLR female
Material - Aluminium, Steel
Cable Length - 0.5 m
Width - 80 mm
Depth - 45 mm
Height - 45 mm
Weight - 0,39 kg
Operating Temperature- 20 - 70 °C
Air humidity < 80 % ( non-condensing )
