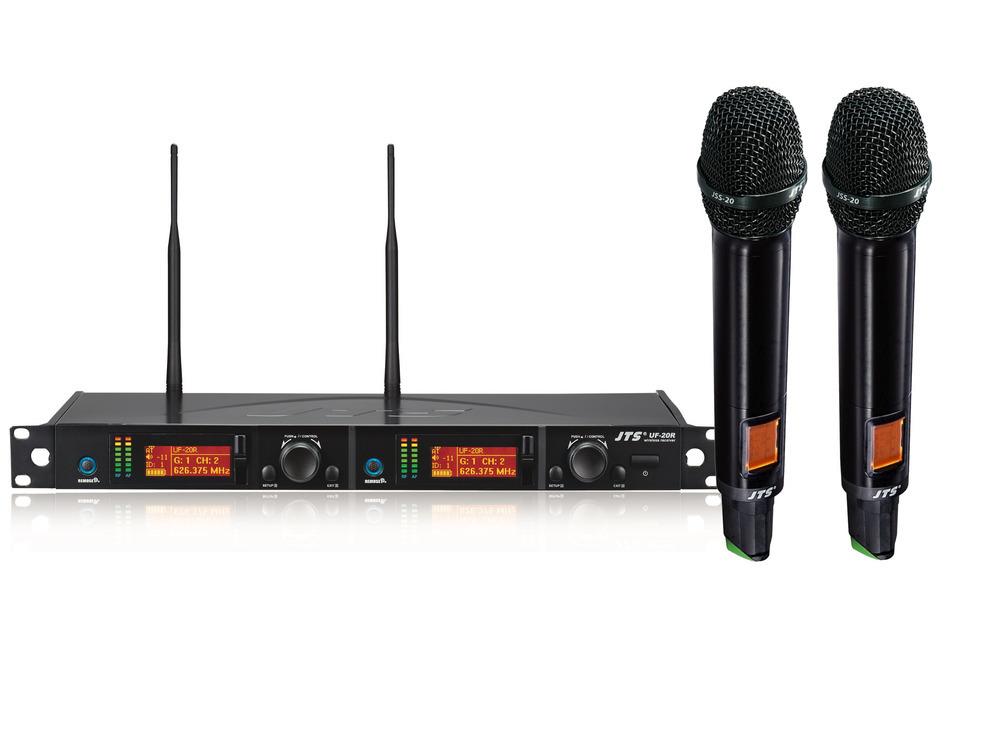

JTS Dual Handheld System UF-20R + 2x JSS-20 CH38 Rackmount

Description

The UF-20R/JSS-20 Dual system is supplied with 2 x JSS-20 handheld transmitters for the perfect multi channel system. Adding additional channels is simple due to the built in mains and antenna distribution and the massive wideband 75MHz frequency range.

UF-20R Professional True Diversity Receiver / JS-22 Professional Handheld Transmitter

The new JTS UF-20 true diversity, dual channel wide band UHF professional wireless system, which boasts an operating range of 200-480 meters and a one-touch set-up facility, REMOSET, which can set all parameters of the transmitter within an effective distance of 10 metres or more. Controllable via REMOSET are functions including Frequency Data, RF Power, Sensitivity, Low Cut, Key Lock and User name.

Built to the usual rugged JTS quality standard, the UF-20 also features extremely low companding noise, cascadable power and antenna distribution and comes with an optional slide-in re-chargeable transmitter station.

The JSS-20 handheld transmitter is manufactured to the highest standards for professional use, featuring rugged aluminium alloy chassis. The JSS-20 features interchangeable capsule modules compatible with other microphone brands, if required. As standard it comes with the newly developed JTS SAM-8WLN capsule which delivers outstanding performance while minimising handling noise.

Further key features of the UF-20 include a maximum 2400 to 3000 selectable frequencies across 60 to 75 MHz operation, 15 preset groups each of up to 63 compatible channels, user programmable 6 groups each of 64 channels, a free space scan function, Mute and Lo Battery alert at the receiver display.

UHF True diversity technology renders 200-480 meters of operation distance
Maximum 2400 to 3000 selectable frequencies across 60 to 75 MHz
Preset 15 groups each of up to 63 compatible channels
User programmable 6 groups each of 64 channels
Free space scan function
JTS Patented obstacle-free RF function synchronises a transmitter by pushing a button
JTS LCX circuit design technology minimises Companding noise
REMOSET - This now not only sends the frequency data but also the transmitters RF power, sensitivity, low cut, key lock and user's name.
RF NO SIGNAL alert function.
AF MUTE alert function.
Built in equaliser
Power / Antenna cascading output provided.
JSS-20 Professional Handheld Microphone Transmitter
2400 to 3000 selectable frequencies
Preset 15 groups each of up to 63 compatible channels
Phase-Locked Loop (PLL) synthesized tune
Adjustable transmission power between Low and High
Low cut function.
JTS newest development SAM-8WLN capsule assures outstanding acoustic performance while minimises touching noise.
Interchangeable capsule design for various choices including some classic capsule modules.
It is designed with slot-in charging feature with two AA NiMH rechargeable batteries.
