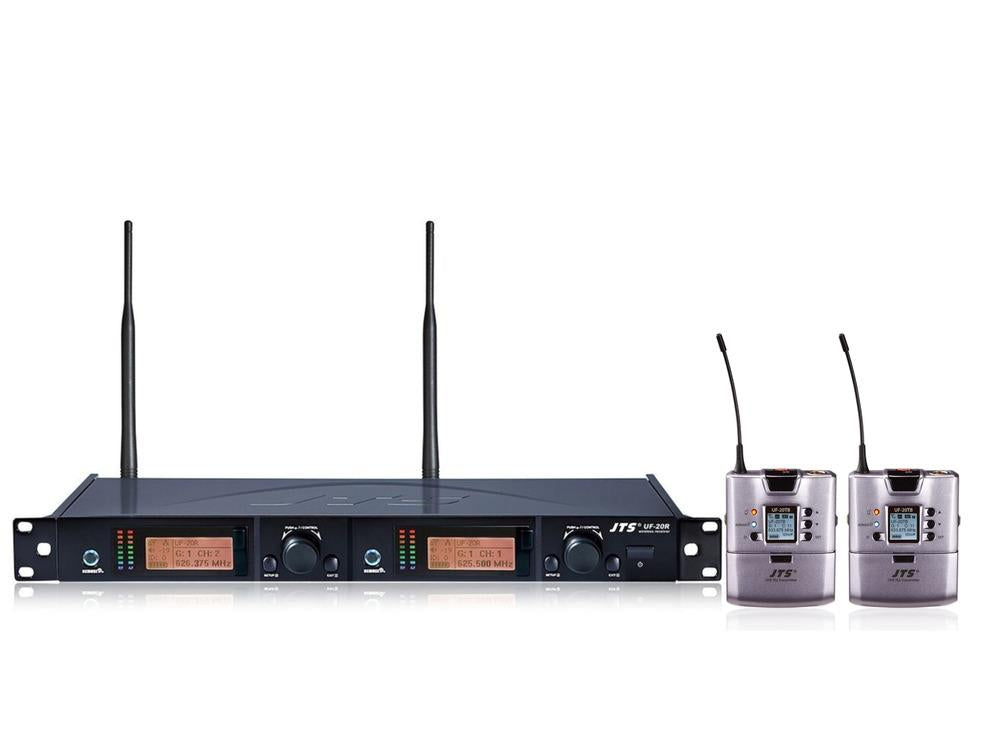

JTS Dual Beltpack System UF-20R + 2x UF-20TB CH38 Rackmount

Description

The UF-20R/UF-20TB Dual system is supplied with 2 x UF-20TB beltpack transmitters for the perfect multi channel system. Adding additional channels is simple due to the built in mains and antenna distribution and the massive wideband 75MHz frequency range.

UF-20R Professional True Diversity Receiver / UF-20TB Professional Beltpack Transmitter

The new JTS UF-20 true diversity, dual channel wide band UHF professional wireless system, which boasts an operating range of 200-480 meters and a one-touch set-up facility, REMOSET, which can set all parameters of the transmitter within an effective distance of 10 metres or more. Controllable via REMOSET are functions including Frequency Data, RF Power, Sensitivity, Low Cut, Key Lock and User name.

Built to the usual rugged JTS quality standard, the UF-20 also features extremely low companding noise, cascadable power and antenna distribution and comes with an optional slide-in re-chargeable transmitter station.

Compact Bodypack Transmitter with REMOSET
The UF-20TB is the perfect partner for the UF-20S and UF-20R.Fully metal housing houses our latest class leading technology to ensure rock solid RF. Many high end features are incorporated including Low Cut function, the slot in charger keeps the system ready to work at any time.

Powered by 2 x AA batteries the UF-20TB is a compact, lightweight beltpack featuring a 4pin mini-xlr input to accept a range of inputs such as JTS' headsets or lavalier microphones such as the popular CM-501.
The chassis is an aluminium alloy design and due to it's solid construction ensures there is no handling noise.
The features of the beltpack can also be controlled via REMOSET.

Carrier Frequency: UHF 606-681MHz
Controls: Power ON / OFF, AF Level, Frequency (Up / Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust
RF Outputs: High/Low Option
Frequency Deviation: ±48KHz (Peak)
Battery: 2x AA
Stability: < ±10KHz
LCD Display: Group, Channel, Frequency, Battery Status, User Name, GAIN Adjust
Bandwidth: 75Mhz Super wideband
Freq. Response: 50Hz - 18kHz
Frequency Preperation: PLL Synthesized Control

Further key features of the UF-20 include a maximum 2400 to 3000 selectable frequencies across 60 to 75 MHz operation, 15 preset groups each of up to 63 compatible channels, user programmable 6 groups each of 64 channels, a free space scan function, Mute and Lo Battery alert at the receiver display.

UHF True diversity technology renders 200-480 meters of operation distance
Maximum 2400 to 3000 selectable frequencies across 60 to 75 MHz
Preset 15 groups each of up to 63 compatible channels
User programmable 6 groups each of 64 channels
Free space scan function
JTS Patented obstacle-free RF function synchronises a transmitter by pushing a button
JTS LCX circuit design technology minimises Companding noise
REMOSET - This now not only sends the frequency data but also the transmitters RF power, sensitivity, low cut, key lock and user's name.
RF NO SIGNAL alert function.
AF MUTE alert function.
Built in equaliser
Power / Antenna cascading output provided.
