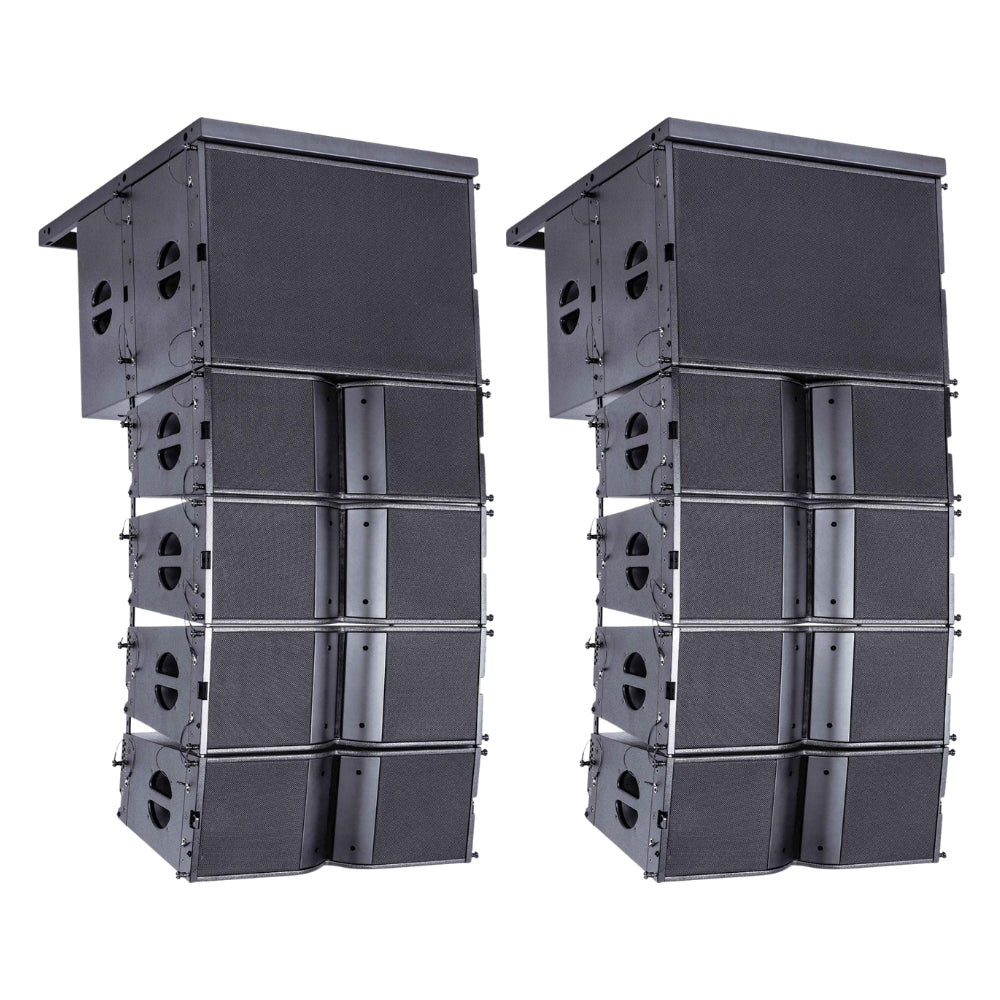

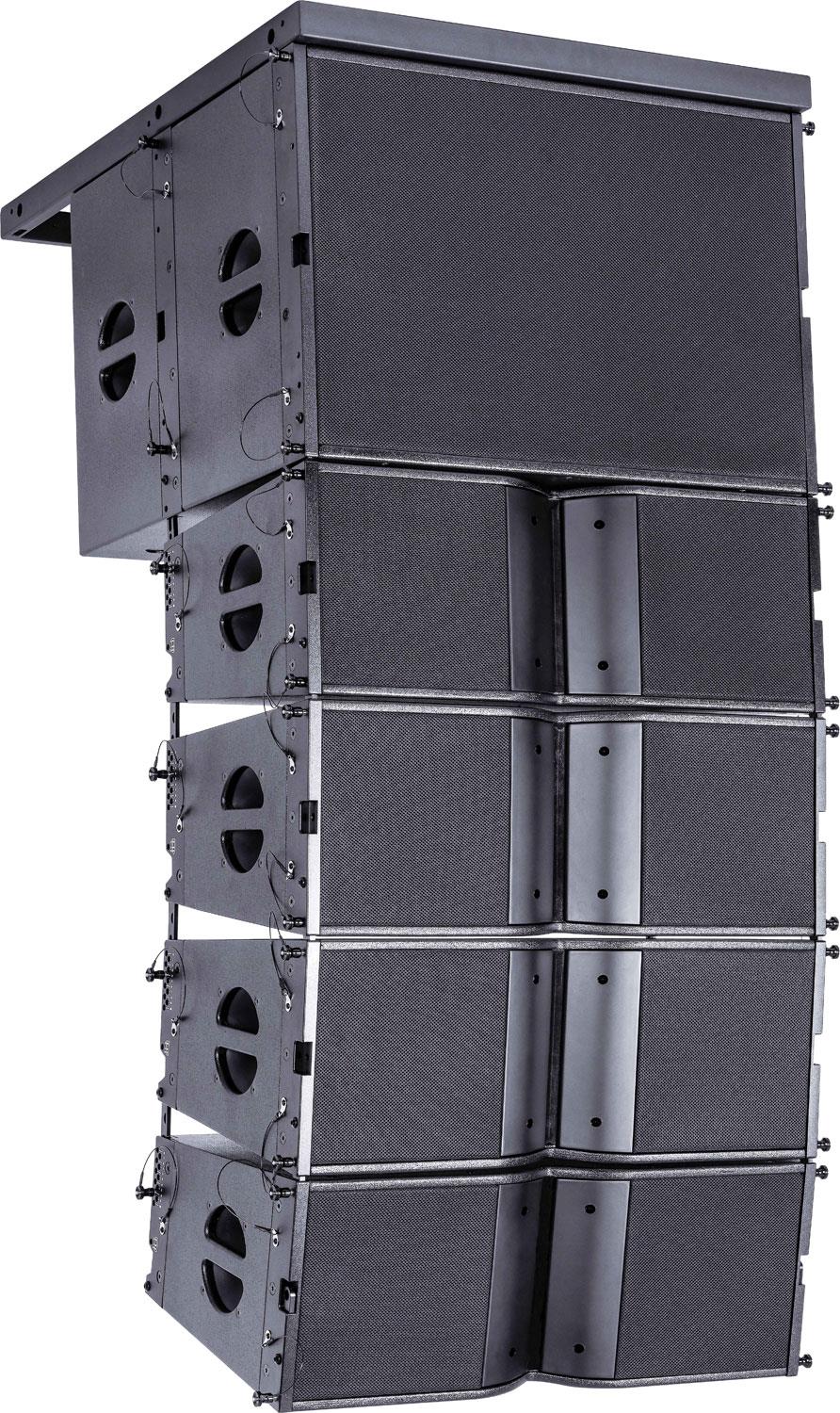

Citronic 8x C-208 Line Array Speakers with 2x C-118S Subwoofer and C-Rig Flying Frame

Description:

Bundle including 8x Citronic C-208 Line Array Cabinet 2x8" and 2x Citronic C-118S Subwoofer Cabinet 1x18" with 2x Citronic C-Rig Support / Flying Frame

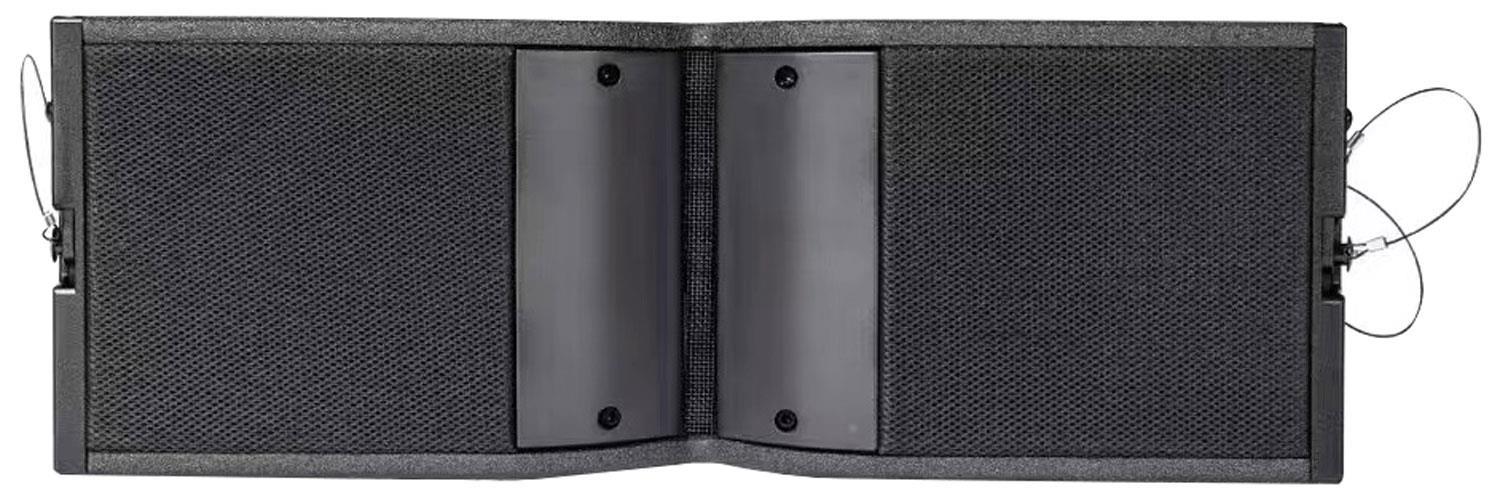

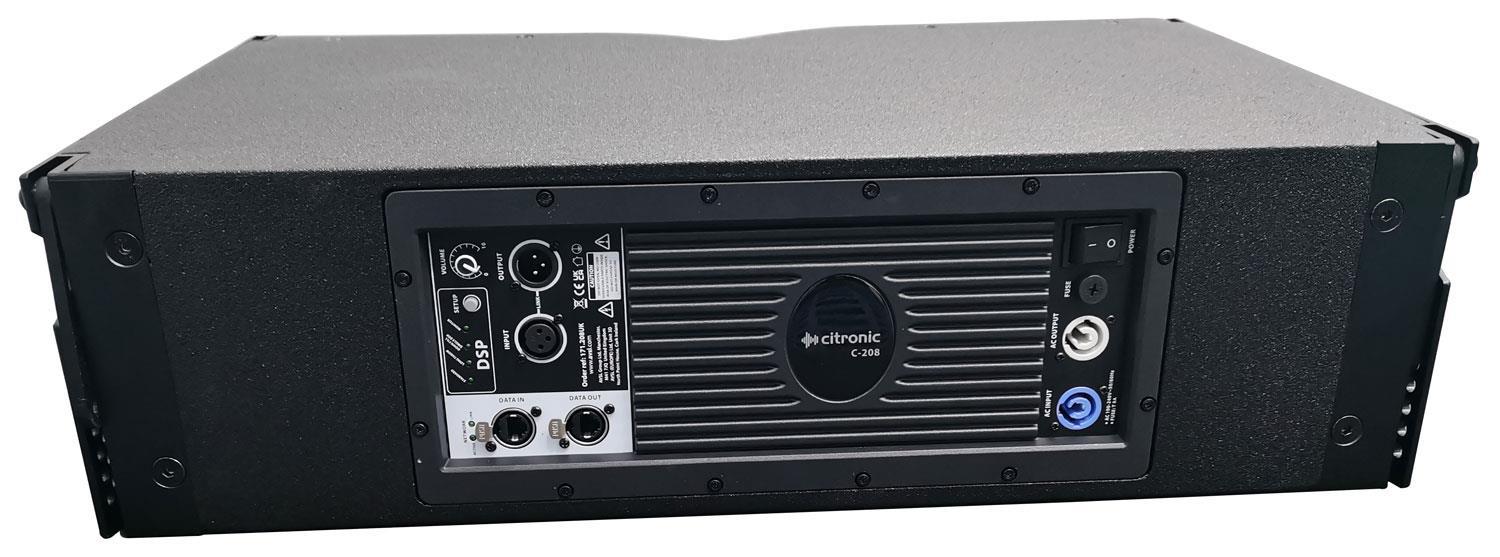

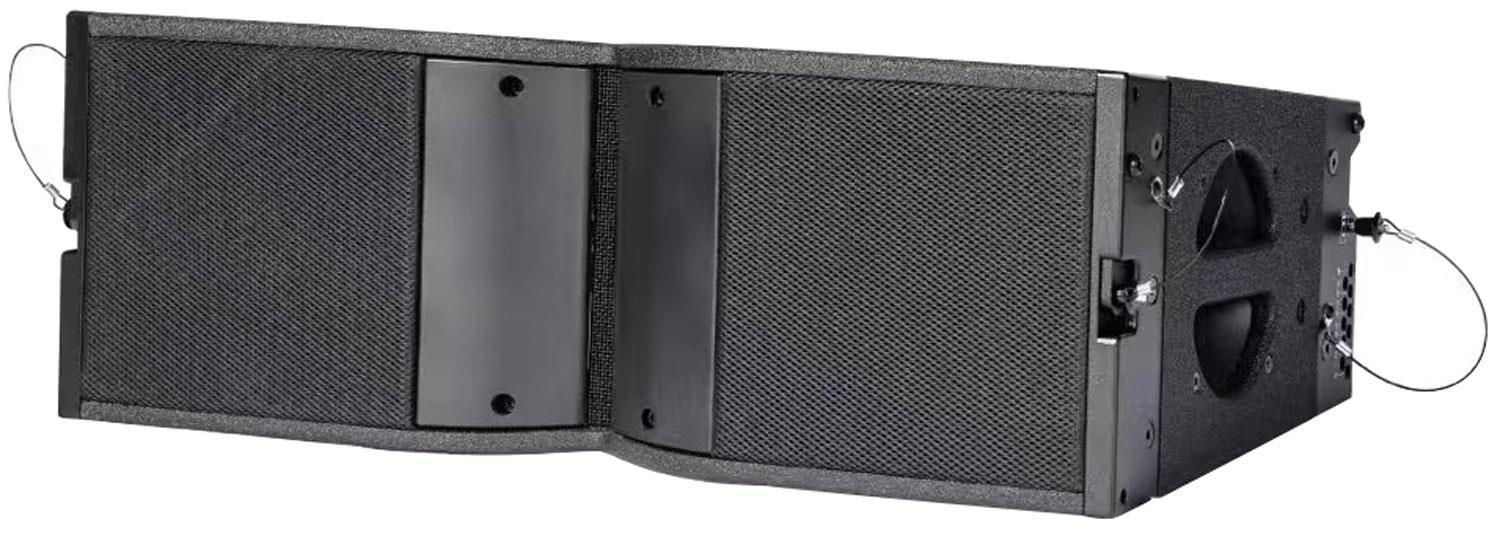

Citronic C-208 Line Array Cabinet 2 x 8" + HF 600Wrms

Created for high SPL output in medium to long throw applications, the C-series line array system offers uncompromised sound performance and power control in a modular and easy to configure format. The C-208 line array unit comprises 2 x 8" main drivers coupled with a 3" compression driven ribbon tweeter for wide horizontal coverage. All drivers are fitted with high flux-density Neodymium magnets to efficiently convert power into sound pressure and are loaded into a computer-designed plywood wedge enclosure. A class-D bi-amplifier section is fully DSP controlled for accurate and efficient power delivery to the driver units across all frequencies. Fitted with side handles and array hardware, the C-208 can be angled for exact coverage of the venue or auditorium, either flown or floor mounted from the optional C-FRAME support assembly and/or partnered to the the C-118S sub units.

Features:

Neodymium magnets for efficient power-to-sound conversion.
Internal 500+100Wrms digitally controlled bi-amplifier
Integral pinlock array hardware and carry handles
2 x 8" main drivers + 3" CD ribbon tweeter

Specifications:

Power supply: 230Vac, 50Hz (Powercon® in + through)
Construction: 15mm plywood cabinet, polyurea coated
Frequency response: 45Hz - 20kHz

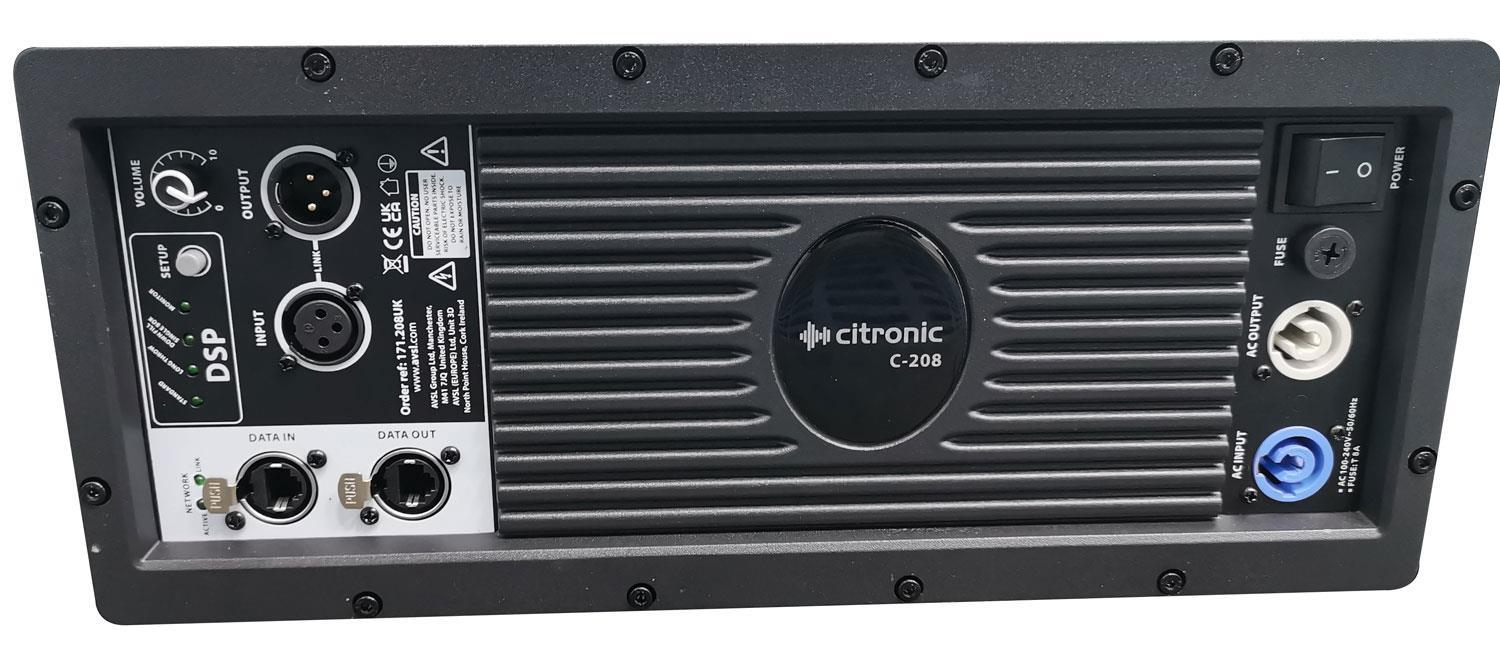

Amplifier construction: Class-D bi-amp (inbuilt DSP)
Output power rms: 600W
Output power peak: 1200W
Drivers: 2 x 200mmØ (8") LF + HF ribbon tweeter (Ti CD)
Voice coil: 2 x 50mmØ (2") LF, 1 x 75mmØ (3") HF
Sensitivity: 98dB
Dimensions: 690 x 380 x 248mm
Weight: 22.5kg

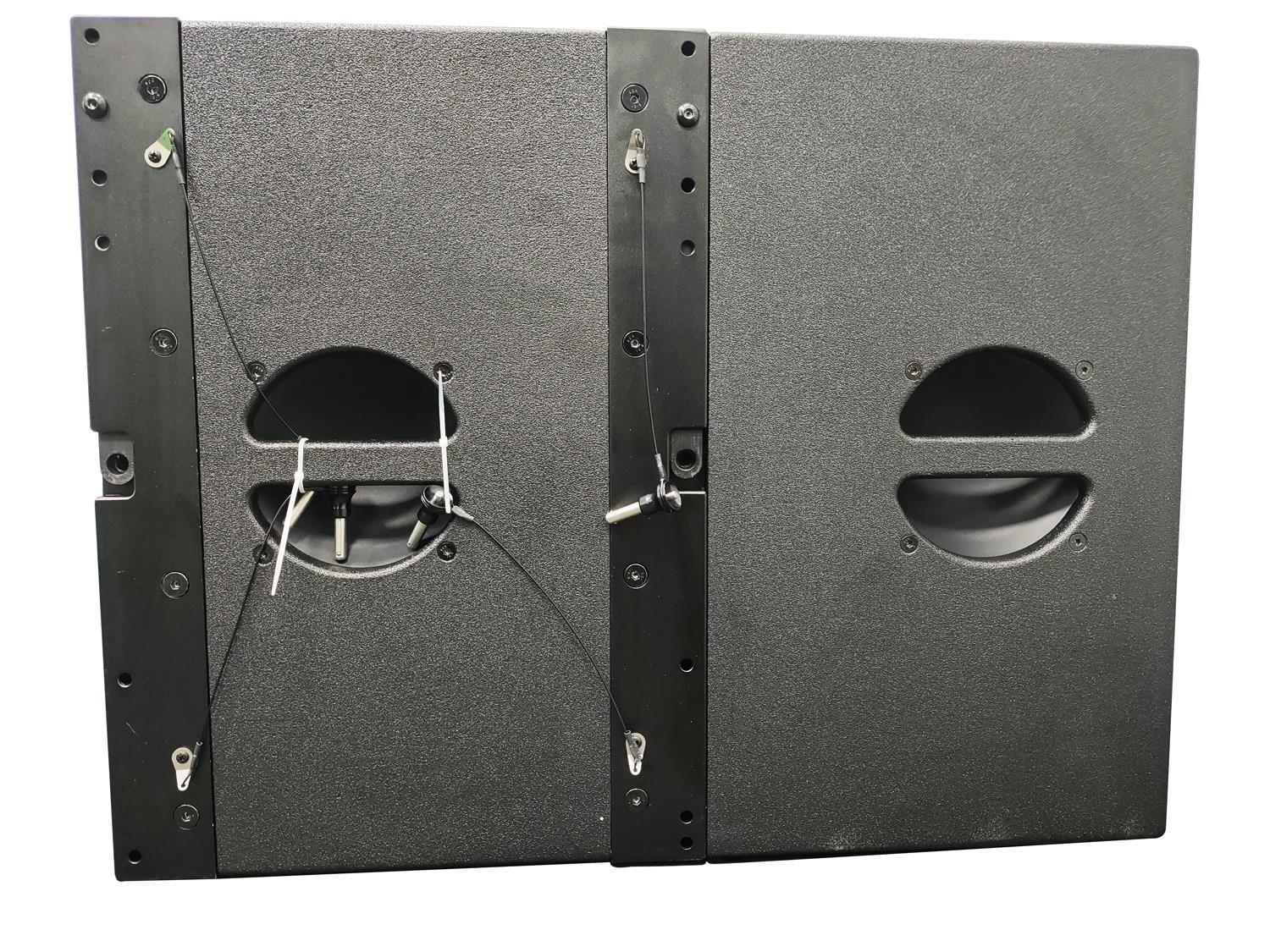

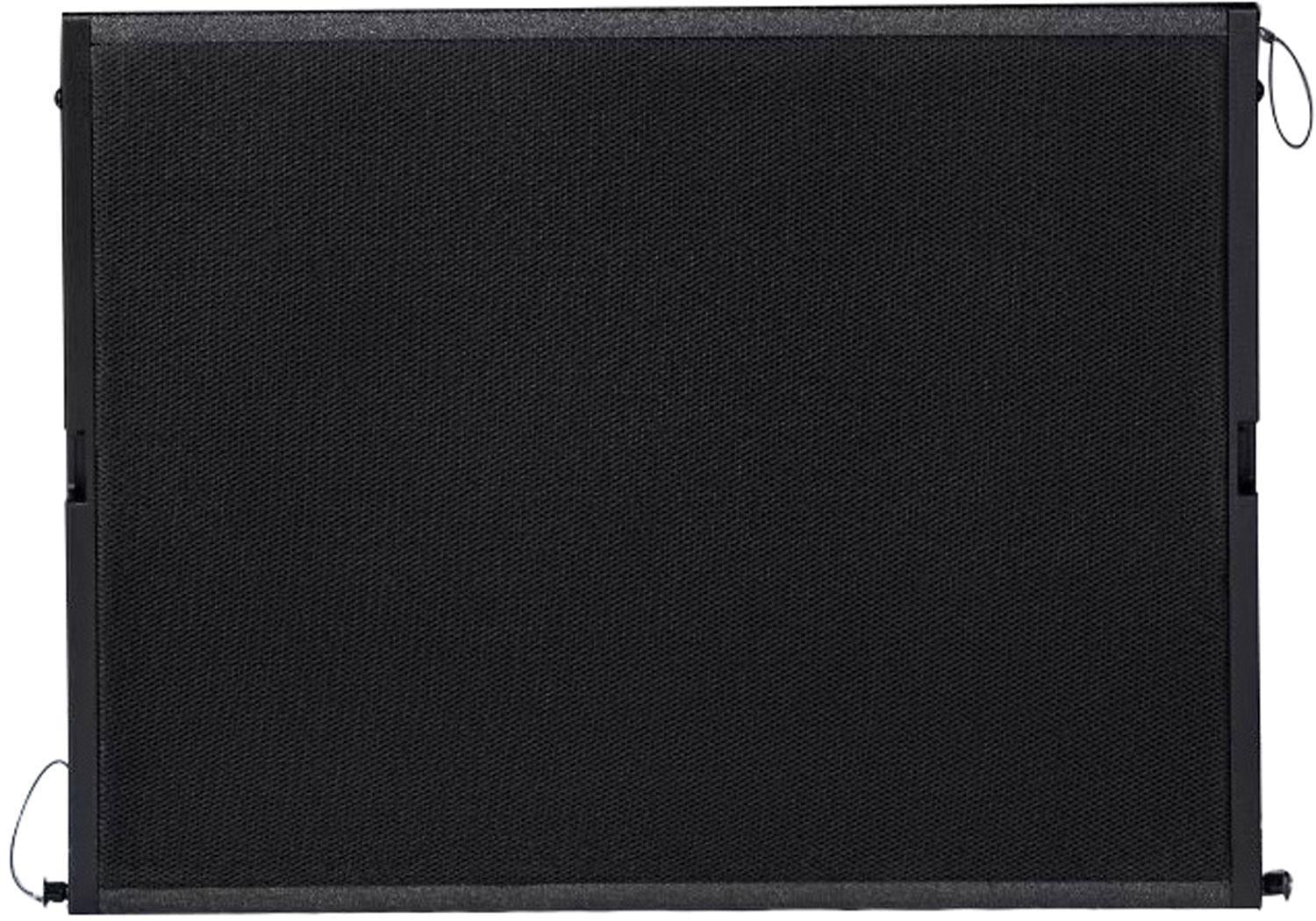

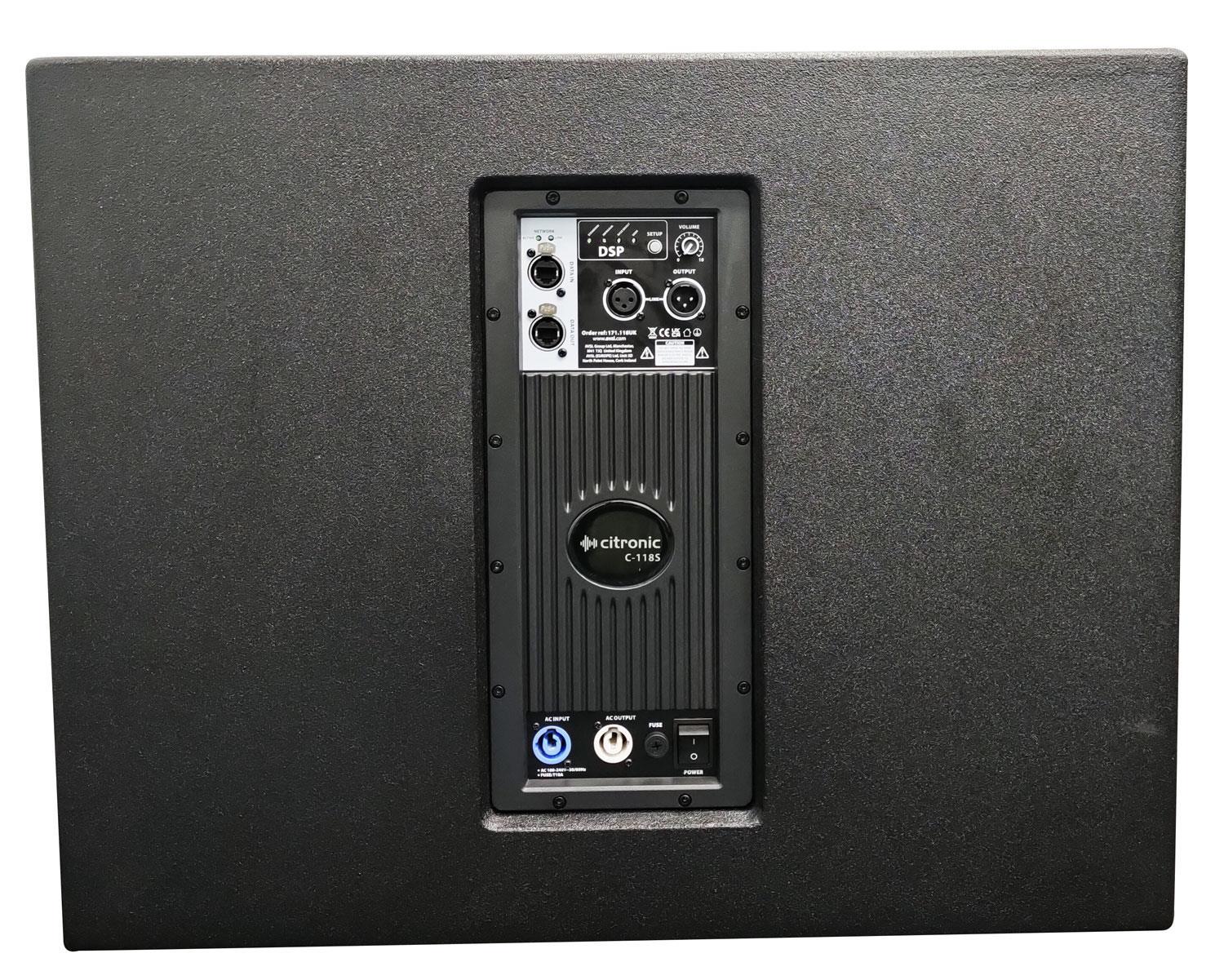

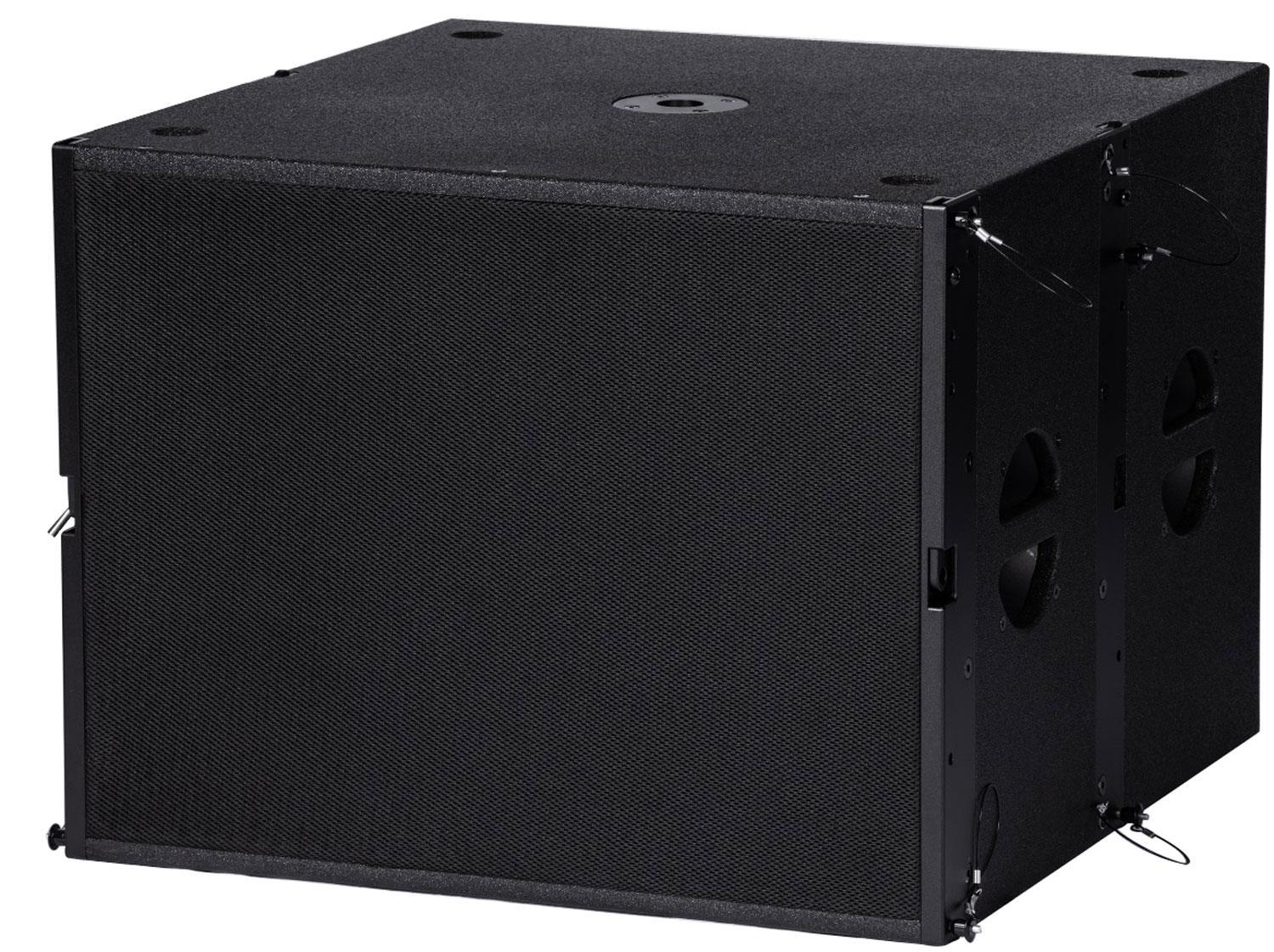

Citronic C-118S Line Array Sub Cabinet 1x18" 1000Wrms:

Created for high SPL output in medium to long throw applications, the C-series line array system offers uncompromised sound performance and power control in a modular and easy to configure format. The C-118S sub unit features a single 1000W 18" driver with cast aluminium basket and double reinforced suspension, loaded into a custom computer-designed and tuned wooden enclosure with a super-tough polyurea texture finish. The subwoofer is served by an internal class-D amplifier section with inbuilt pre-set DSP to deliver 1000W of power on demand with accurate frequency and dynamics control. The C-118S can be used as a standalone active subwoofer, stacked in multiples, or flown with C-series array cabinets using the optional C-FRAME support assembly

Features:

Internal 1000 Wrms digitally controlled amplifier
Integral pin lock array hardware and carry handles
Polyurea-coated wooden cabinet
Single heavy duty sub driver
Top panel 35mmm pole mount socket

Specifications:

Power supply: 230Vac, 50Hz (Powercon® in + through)
Construction: 15mm plywood cabinet, polyurea coated
Frequency response: 40Hz - 150Hz
Amplifier construction: Class-D (inbuilt DSP)
Output power rms: 1000W
Output power peak: 2000W
Driver unit: 450mmØ (18") driver, Al frame, ceramic magnet
Voice coil: 100mmØ (4")
Sensitivity: 98dB
SPL max.: 101dB
Dimensions: 710 x 690 x 545mm
Weight: 54kg

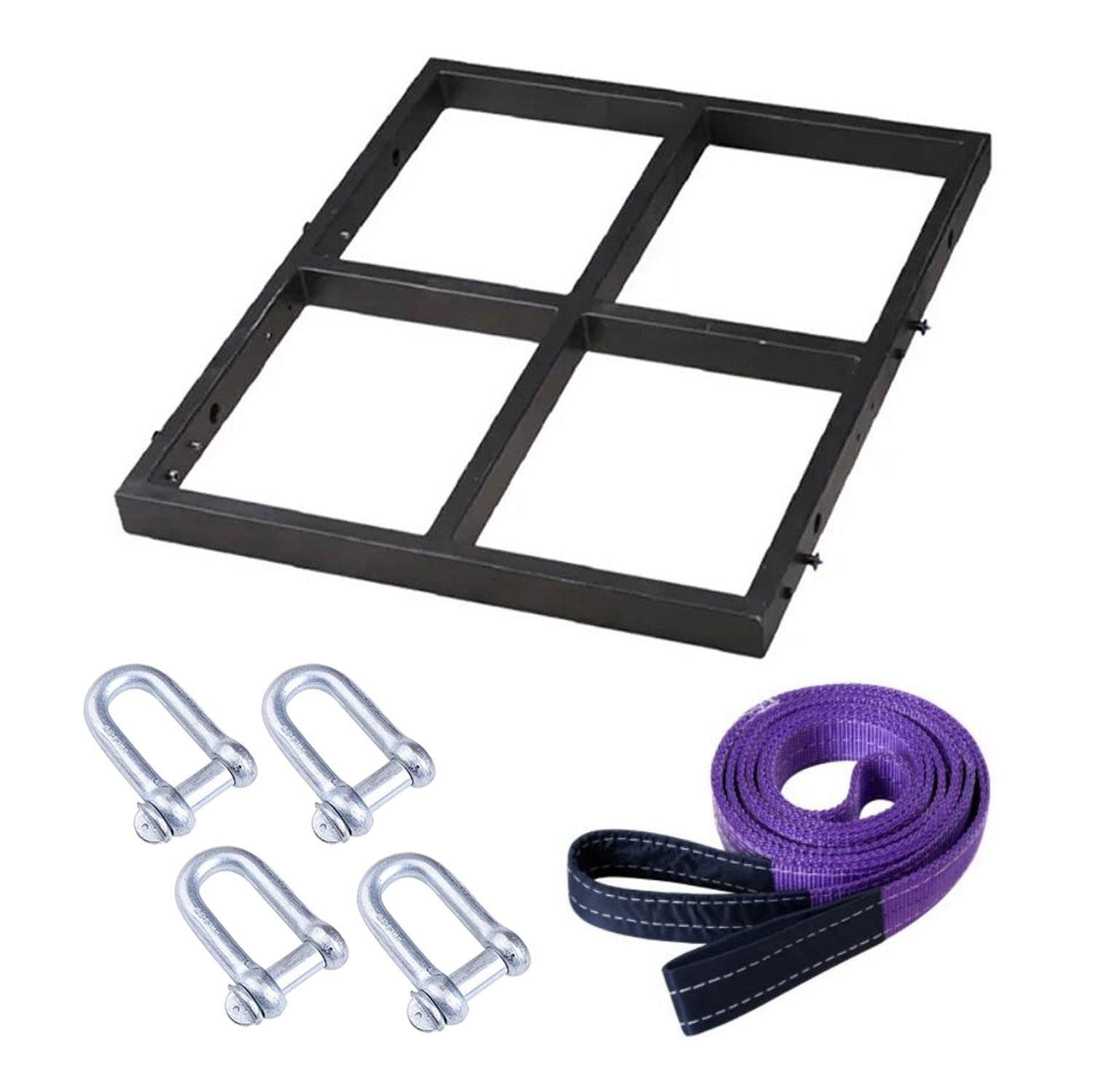

C-Rig Support / Flying Frame:

Heavy duty frame for suspending the C-Array speaker components as a line array set. Constructed from powder-coated steel with bracing and fixing points. Supplied with shackles and lifting strap for attaching to hoists or truss.

Purpose built flying frame for the C-Array
Supplied with shackles and lifting strap
Safe Working Load270kg (max. 12 x C-208)
Dimensions 688 x 465 x 50mm
Weight 13.1kg (inc. accessories)
