ADJ ElectraPix Bar 8 Pak 6x IP65 Battery Hex LED Bar Bundle

Description

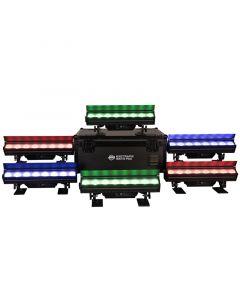

The ADJ ElectraPix Bar 8 Pak is a complete all-in-one touring solution that includes six ElectraPix Bar 8 fixtures housed in a rugged flight case with built-in charging functionality. Each half-meter fixture features eight 20W RGBAL+UV Hex LEDs and 32 RGB background LEDs, providing stunning foreground and ambient effects with full pixel control. The Aria X2 Wireless DMX system enables cable-free programming, while a UCIR24 remote is included for quick IR-based control. Designed for professional outdoor and indoor applications, each unit offers up to 20 hours of battery life, IP65-rated construction, and versatile rigging options. The flight case allows simultaneous charging of all fixtures via PowerCON locking inputs/outputs and includes status indicators for each slot.

Features
Complete touring set with 6 x ElectraPix Bar 8 fixtures and flight case with integrated charging
8 x 20W RGBAL+UV Hex LEDs and 32 background RGB LEDs per fixture
Up to 20 hours battery operation or wall-powered flexibility
Aria X2 Wireless DMX, Bluetooth, RDM, and IR control (remote included)
Variable white temperature control from 2,300K to 9,900K
9 DMX modes with advanced pixel mapping and built-in LED programs
OLED screen, glare shield, diffusion slot, and angle-adjustable feet
Slide-lock system for linking bars horizontally
Flight case includes 6x charging bases, power supplies, and status indicators
Designed for quick deployment, efficient transport, and weather-resistant performance

Specifications
Light source per fixture 8 x 20W RGBAL+UV Hex LEDs, 32 x 0.2W RGB LEDs
White color temperature range 2,300K to 9,900K
Beam angle 17°
Lens size 45mm x 8
Control modes DMX512, Aria X2 Wireless, Bluetooth, IR, RDM, Manual
DMX channel modes 9 modes (5, 6, 9, 13, 22, 24, 48, 52, 66)
Display OLED screen with English/Spanish menu
Connectivity 5-pin XLR DMX In/Out (IP-rated), locking power sockets, battery charge port
Battery type 7,000mAh lithium-ion, 22.2V
Battery runtime up to 20 hours
Charge time 5 hours via AC or flight case
Battery cycles 500
Fixture power consumption 60W
Fixture power linking 15 units @120V / 28 units @230V
Fixture dimensions 94.5 x 586.7 x 268.7 mm
Fixture weight 7.3 kg (16.1 lbs)
Flight case power input AC100–240V, 50/60Hz
Flight case max power consumption 400W
Flight case charge indicator yes
Flight case dimensions 807.5 x 696.4 x 441.9 mm
Loaded weight 79 kg (174 lbs)
Operating temperature -20°C to 45°C (-4°F to 113°F)
Storage temperature -30°C to 45°C (-22°F to 113°F)
Certifications CE, FCC, cETLus (Control #4002034)
IP rating IP65
Included accessories 6x outdoor locking power cables, 6x charging bases, 1x UCIR24 remote, 6x 20° diffusion filters, flight case
Optional accessories Accu Stand VFB1, LTrack A2, LTrack CA2, EPIX B816 IPCB (replacement charging base), optional beam angle filters for ElectraPix Bar 8
