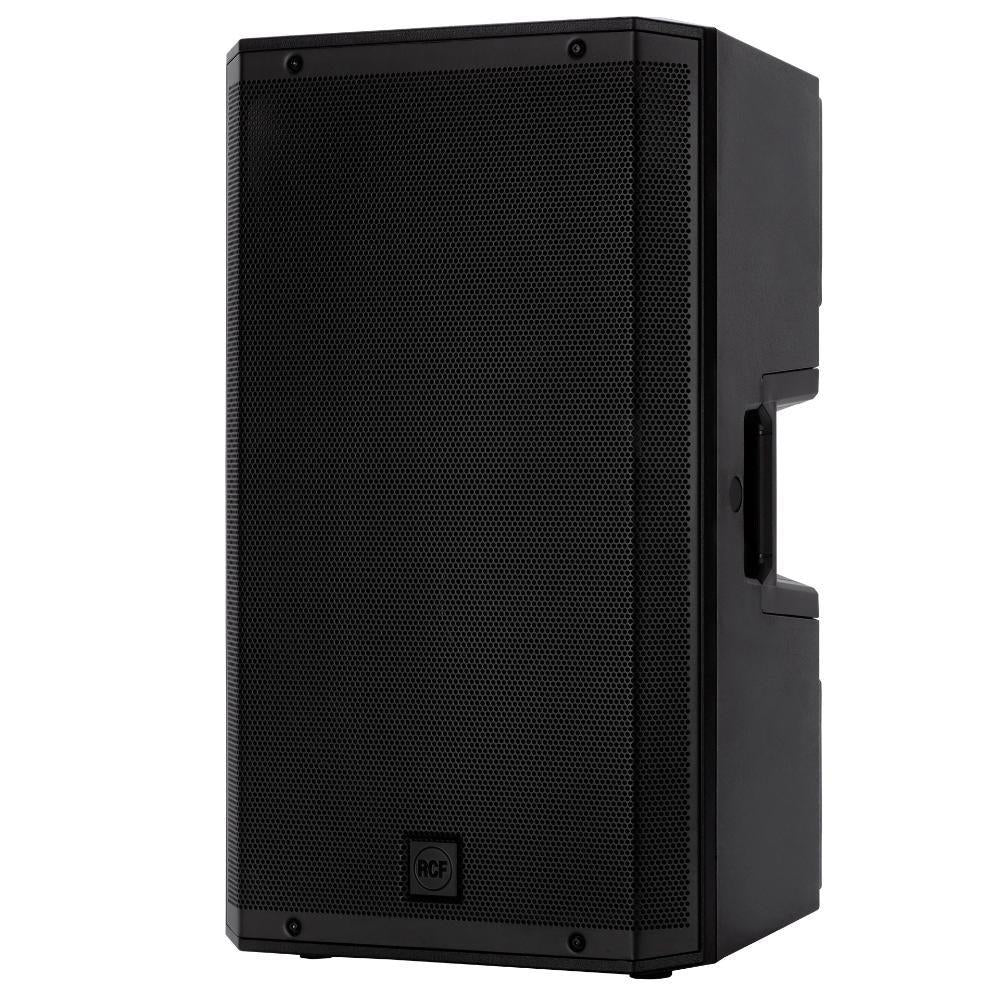

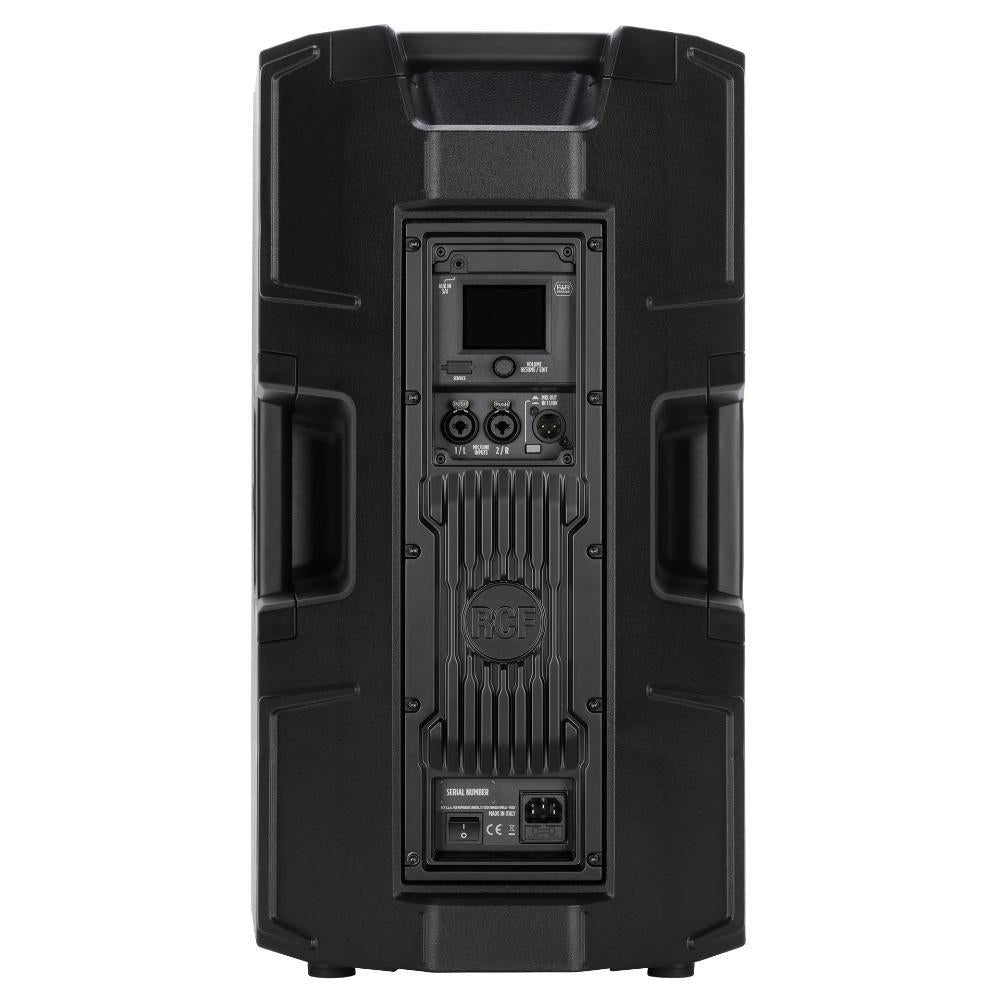

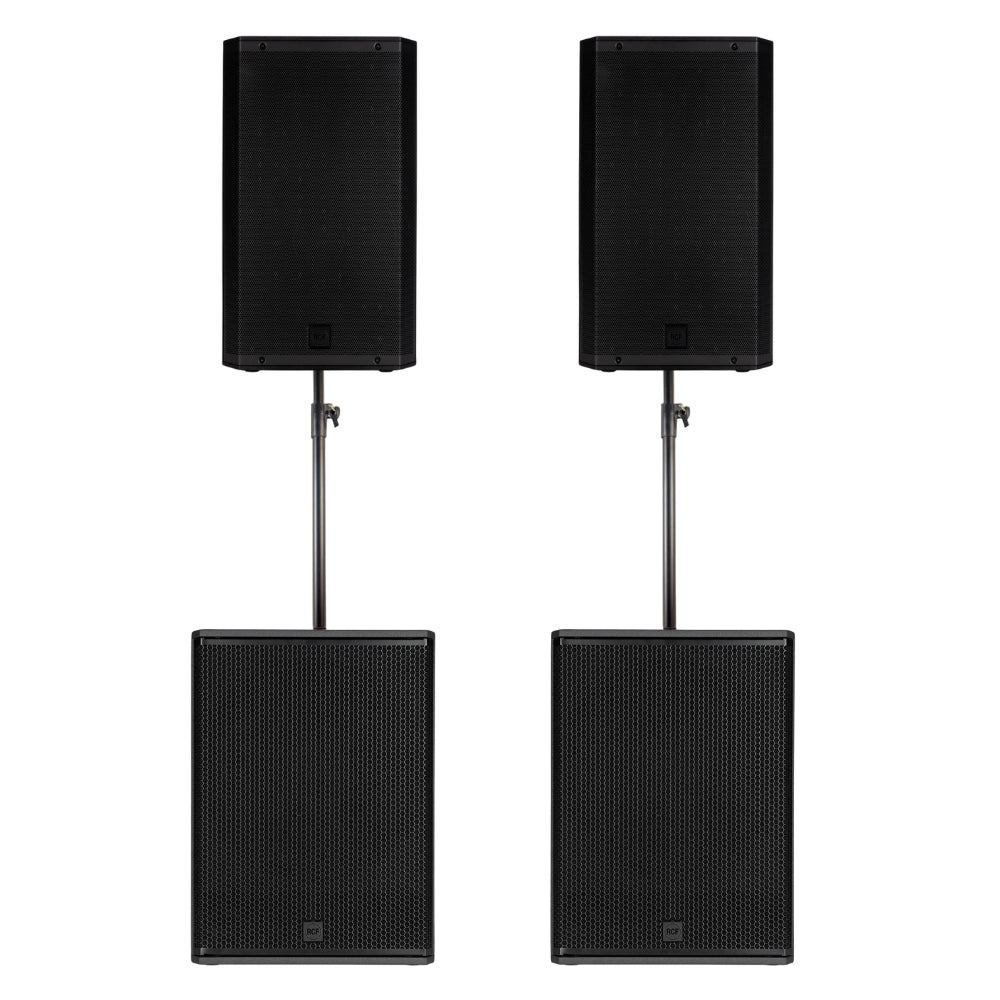

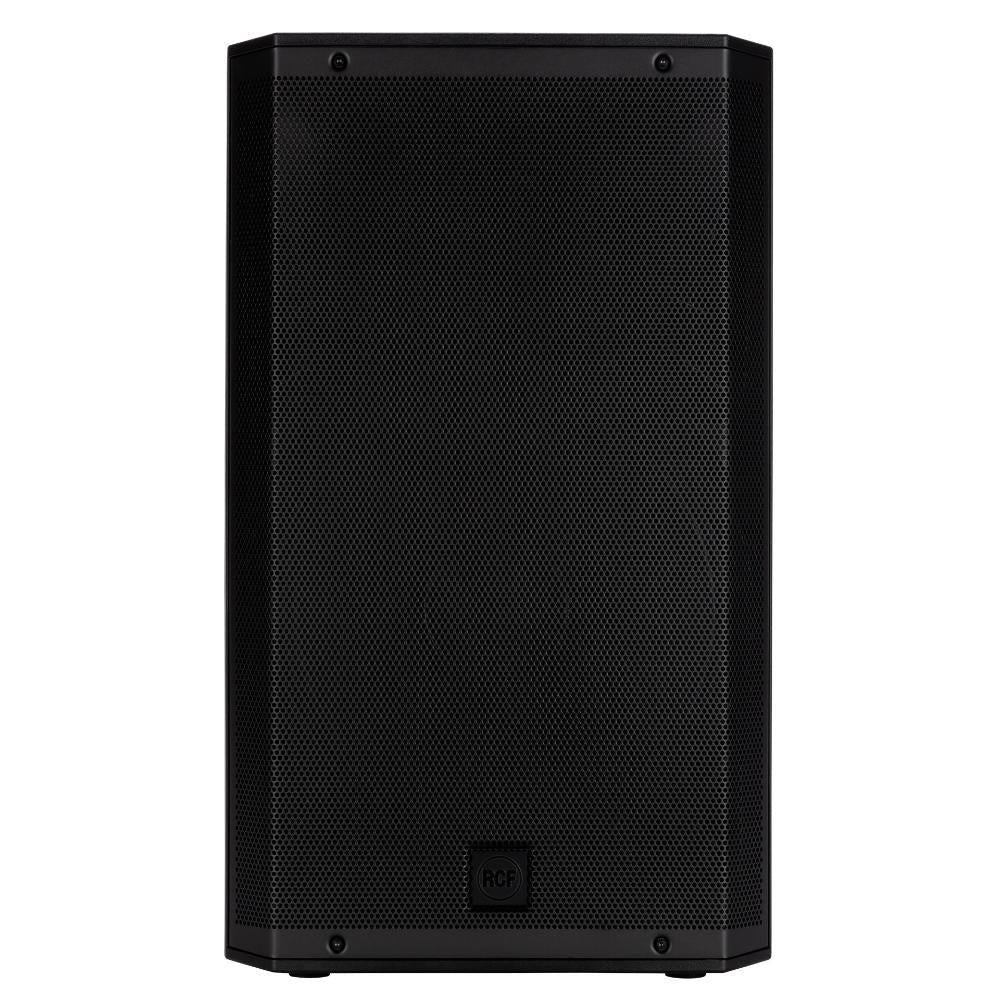

2x RCF SUB 18-AX 18" Active Subwoofer 2200W Bluetooth 2x RCF 912-AX Active Speaker 2100W

Description:

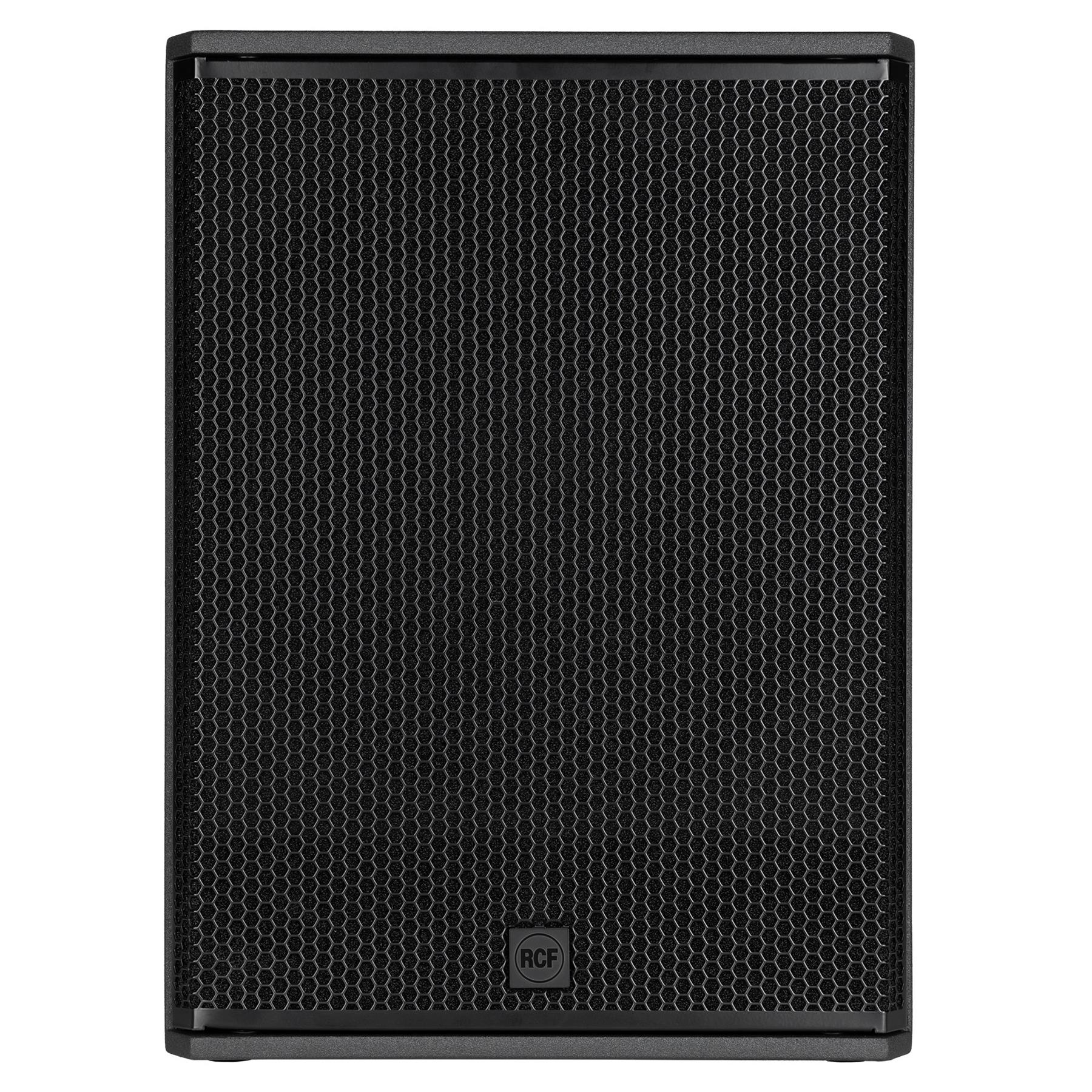

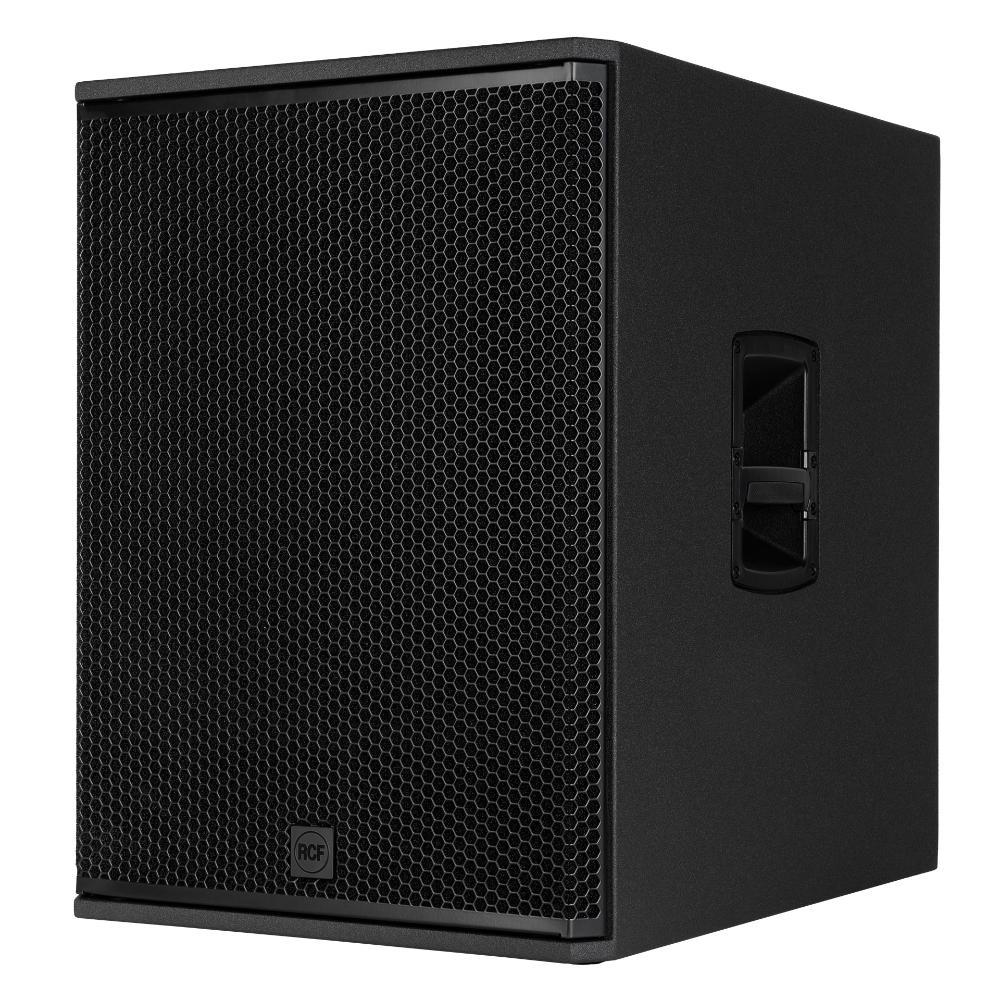

The SUB 18-AX is a portable 18" high-power active subwoofer for live sound applications with fully featured processing, a color touch panel, and remote control via Bluetooth®. The combination of a latest-generation transducer with a powerful Class-D amplifier delivers sound pressure levels up to 135 dB with exceptional clarity and headroom. SUB AX subwoofers are designed specifically for small to mid-sized venues and ideal for portable applications. SUB 18-AX is the ideal complement for 10", 12” or 15" woofer-size loudspeakers; it centralizes speaker management inside the subwoofer, providing dual crossovers, 8-band EQs, routing, delays, cardioid configurations, and recallable crossover presets. The polyurea-coated all-wood cabinet features a sealed Powercon True1 Top connector.

Features:

2200 Watt Class-D Amplifier
135 dB MAX SPL
18” Woofer, bass reflex housing
Digital Crossover w/ Presets
Multi-ply hardwood polyurea-coated
LiveRemote App
Dual XLR/TRS combo Input + Link, Dual XLR Xover Out
Bass Motion Control excursion management
Powercon True1 Top Sealed AC Connector

Specifications:

ACOUSTICAL SPECIFICATIONS
Frequency Response 35 Hz ÷ 120 Hz
Max SPL @ 1m 135 dB

TRANSDUCERS

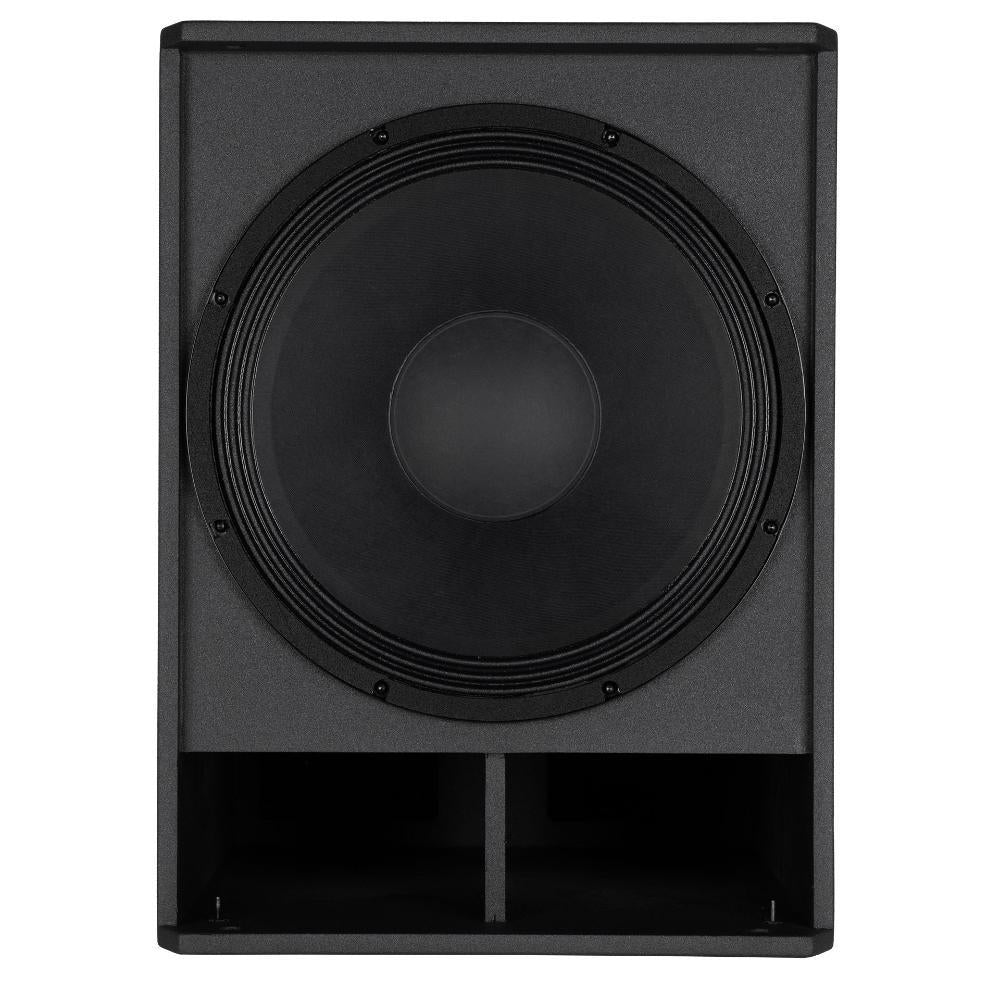

Woofer 1 x 18'', 4.0'' v.c

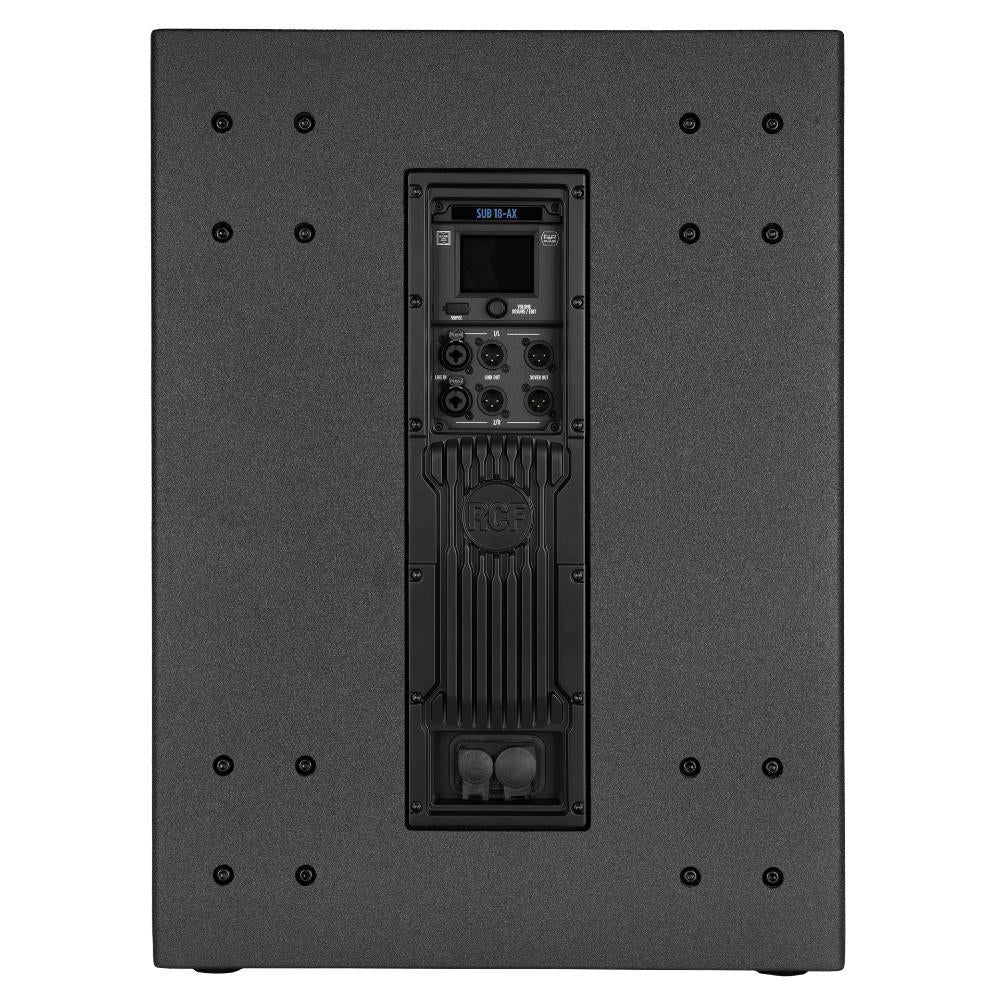

INPUT/OUTPUT SECTION
Input signal bal/unbal
Input connectors Combo XLR/Jack
Output connectors XLR
Input sensitivity -2 dBu/+4 dBu

PROCESSOR SECTION
Protections Thermal
Limiter Soft Limiter
Controls Encoder for Volume control and data entry. Touch Screen for parameter management and monitor.

POWER SECTION
Total Power 2200 W Peak, 1100 W RMS
Cooling Convection
Connections Powercon TRUE1 TOP IN/OUT

STANDARD COMPLIANCE
Safety agency CE compliant

PHYSICAL SPECIFICATIONS

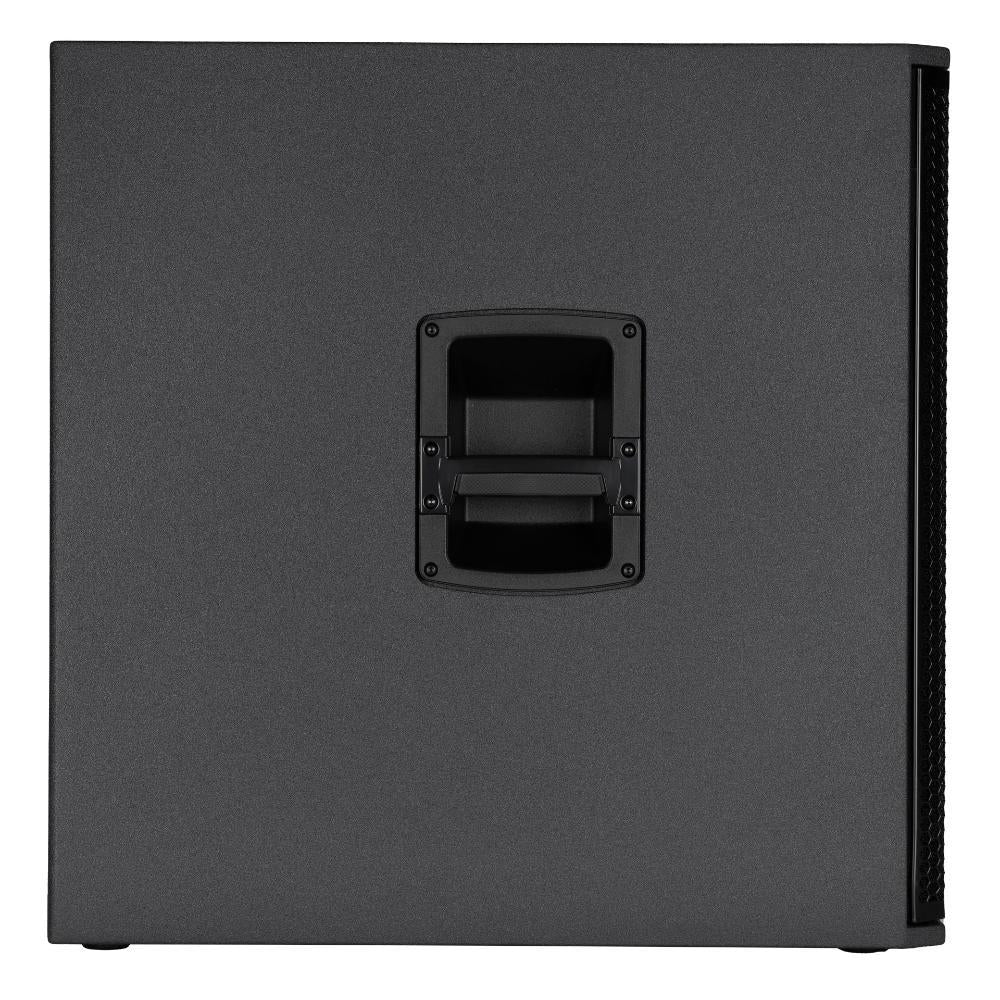

Handles 1 handle per side
Pole mount/Cap Yes
Color Black, White

SIZE
Height 693 mm / 27.28 inches
Width 505 mm / 19.88 inches
Depth 685 mm / 26.97 inches
Weight 37.6 kg / 82.89 lbs
