OMNITRONIC PA Set AZX passive XL

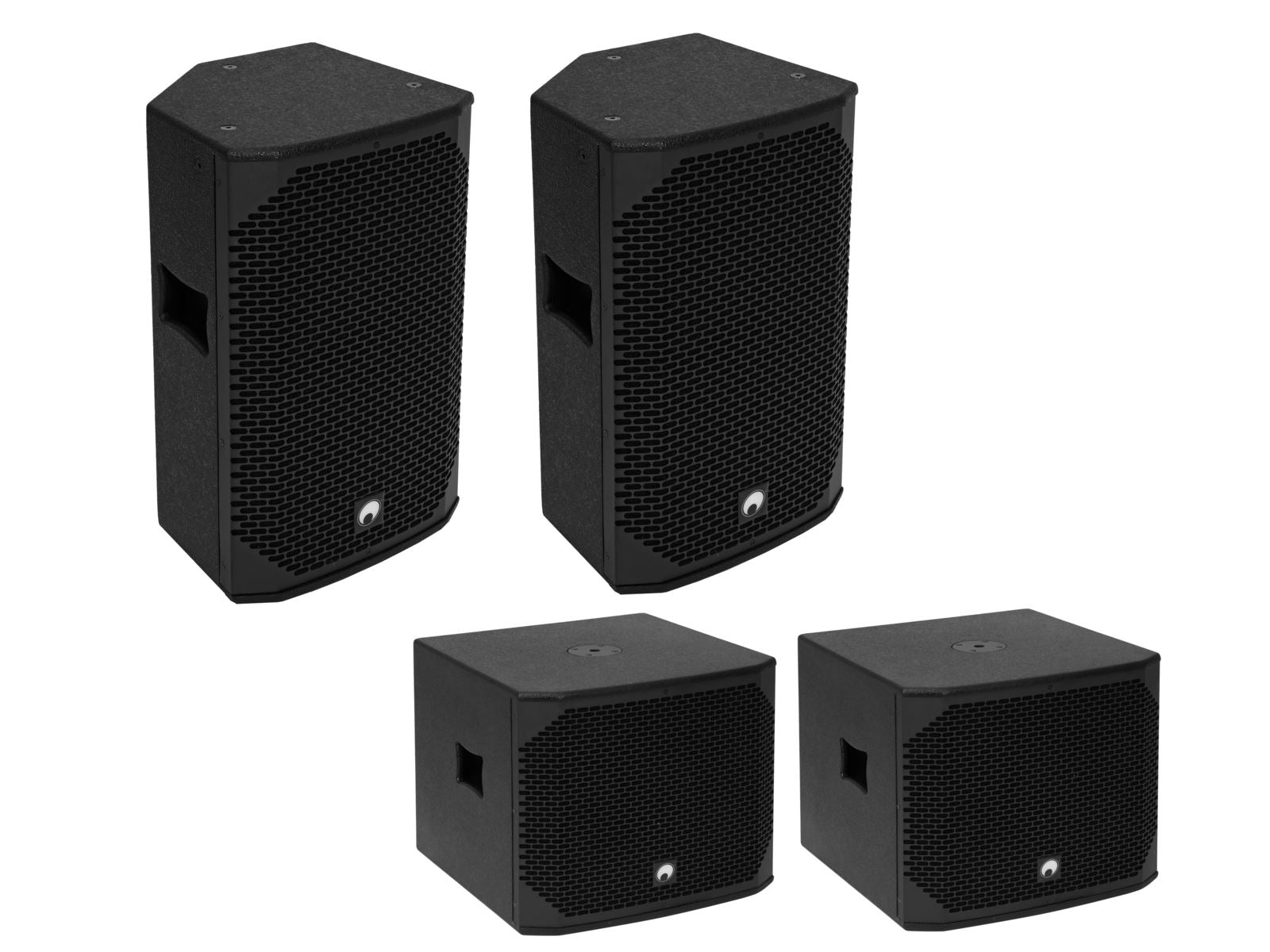

2x AZX-215 2-Way Top 300W including 2x AZX-118 PA Subwoofer 450W

OMNITRONIC AZX-215 2-Way Top 300W

Passive speaker with 15" woofer, 1.75" titan driver and 300 W RMS

• 2-way bass-reflex enclosure with 38 cm woofer and 4.5 cm titanium driver
• Speaker connections
• Stable MDF housing with protective grille and handles
• Dual flange with 0° and 5° tilt angle enables flexible positioning
• M10 threaded inserts for suspended installation
• Applications: standing, as monitor, on a subwoofer or speaker stand, suspended

OMNITRONIC AZX-118 PA Subwoofer 450W

18" bassreflex subwoofer with 450 W RMS, 8 ohms

• 46 cm (18") bass speaker with 63 mm voice coil
• Parallel Speaker connections
• M20 metal flange for mounting top speakers
• Carrying handles
• Housing made of 15 mm MDF
• Scratch-resistant lacquer surface
• Impact-resistant steel grille with acoustic foam
• Weight: 109,40 kg
• OMNITRONIC AZX-215 2-Way Top 300W
• Rated power: 300 W RMS
• Program power: 600 W
• Frequency range: 50 - 20000 Hz
• Sensitivity: 94 dB (1W/1m)
• Impedance: 8 ohms
• Attachment system: Bead Ø 35mm variable tilt
• Connections: Input: speakers via 2 x speaker built-in socket (F)
• Speakers: 1 x woofer (15") approx. 38 cm
• Voice coil lows (3") approx. 8 cm
• 1 x compression tweeter highs (1.75") approx. 4.5 cm
• Type of speaker: Compact cabinet speaker
• Material: MDF (Medium-density fibreboard), 15 mm
• Dimensions: Width: 48,5 cm
• Depth: 48 cm
• Height: 75 cm
• Weight: 23,40 kg
• OMNITRONIC AZX-118 PA Subwoofer 450W
• Rated power: 450 W RMS
• Program power: 900 W
• Frequency range: 40 - 250 Hz
• Sensitivity: 95 dB (1W/1m)
• Impedance: 8 ohms
• Attachment system: M20 thread
• Connections: Input: speakers via 2 x speaker built-in socket (F)
• Speakers: 1 x woofer (18") approx. 45 cm
• Voice coil lows (2.5") approx. 6.35 cm
• Type of speaker: Subwoofer
• Type: Vented
• Material: MDF (Medium-density fibreboard), 15 mm
• Dimensions: Width: 66,5 cm
• Depth: 66,5 cm
• Height: 59 cm
• Weight: 31,30 kg
